GST18U07-P1J
9.13
Details

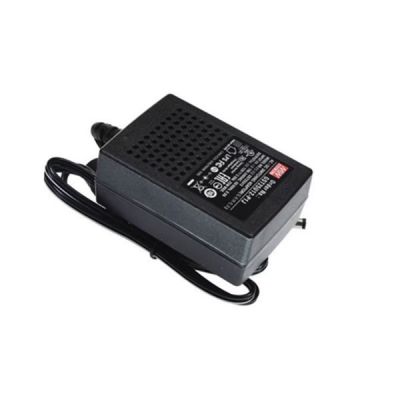

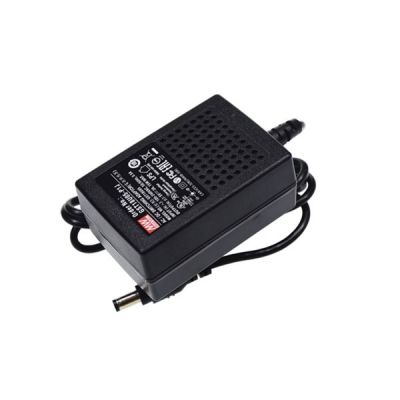

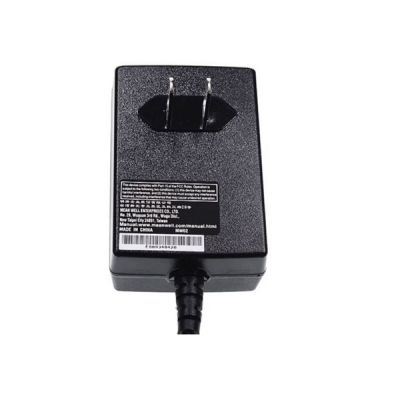

Meanwell GST18U07 is a 18W AC-DC Green Industrial Adaptor with 7.5V2.0A0-2.0A15W80mVp-p. The item outstands high reliability, wall-mounted style and single-output. it is a class II power unit (no FG) with 2-Pin standard USA AC power plug. Meanwhile, GST18U07 adopts input range from 85VAC to 264VAC, provided with output voltage 7.5VDC. Therefore, it is able to meet the demands for various types of consumer electronic devices. As the efficiency reaches high up to 89% and extremely low no-load power consumption below 0.075W, Meanwell GST18U07 is compliant with USA EISA 2007/DoE and Canada NRCan. Moreover, the supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. The unit utilizes the 94V-0 flame retardant plastic case with the double insulation, which could effectively prevent electrical shock. GST18U07 is also certified for the international safety regulations. Thanks to its high safety, high reliability and high quality, Meanwell GST18U07 serves as a high performance power supply solution for various types of consumer electronic devices.
Meanwell GST18U07-P1J Encoding
| GST | Series Name |
| 18 | Rated Wattage |
| U | US 2 pin AC Plug |
| 7 | Output Voltage |
| P1J DC plug type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| Other Options available by customer requested |
Meanwell GST18U07-P1J Specifications
| ORDER NO. | GST18U07-P1J | |
| OUTPUT | SAFETY MODEL NO. | GST18U07 |
| DC VOLTAGE | 7.5V | |
| RATED CURRENT | 2.0A | |
| CURRENT RANGE | 0-2.0A | |
| RATED POWER | 15W | |
| RIPPLE & NOISE (max.) | 80mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±5.0% | |
| SETUP, RISE, HOLD UP TIME | 1000ms, 30ms, 50ms/230VAC 1500ms, 30ms, 15ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 85 ~ 264VAC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 85.00% | |
| AC CURRENT | 0.5A / 115VAC 0.3A / 230VAC | |
| INRUSH CURRENT (max.) | Cold start 35A / 115VAC 65A / 230VAC | |
| LEAKAGE CURRENT(max.) | 0.25mA / 240VAC | |
| PROTECTION | OVERLOAD | 110 ~ 150% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 110 ~ 140% rated output voltage | |
| Protection type : Clamp by zener diode, output short | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% /℃(0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 No.62368-1, BSMI CNS14336-1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:4242VDC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| Others | Life | 3879.7K hrs min. Telcordia SR-332 (Bellcore) ; 668.4K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 79*54*33mm (L*W*H) | |
| PACKING | 198g; 60pcs/12.9Kg/1.15CUFT | |
Meanwell GST18U07-P1J Features
l Pass LPS
l 3 years warranty
l Global certificates
l Universal AC input/Full range
l 2 pole USA plug, Class II power unit
l No load power consumption< 0.075W
l Energy efficiency Level VI
l Comply with EISA 2007/DoE and NRCan
l Protections: Short circuit/Overload/Over voltage
l Fully enclosed plastic case
l -30℃~+70℃ wide range working temperature
l LED indicator for power on
l Various DC plug quick adapter accessory available
Meanwell GST18U07-P1J Applications
l Office facilities
l Industrial equipment
l Consumer electronic devices
l Telecommunication devices
Meanwell GST18U07-P1J Mechanical Diagram
