GST18E07-P1J
9.71
Details

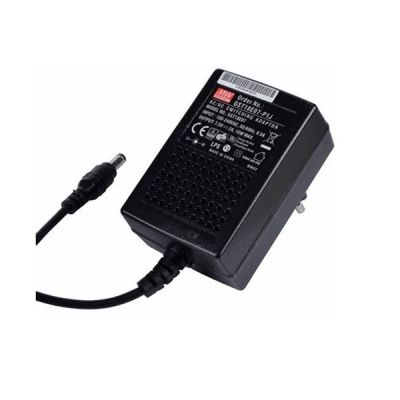

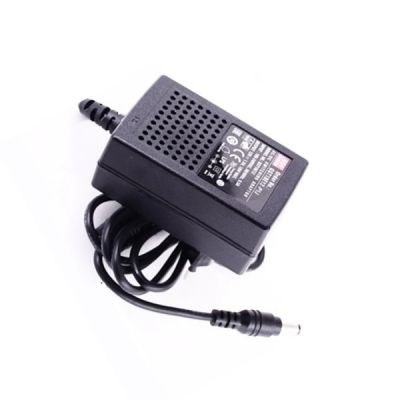

Meanwell GST18E07 is a 18W AC-DC Green Industrial Adaptor with 7.5V2.0A0-2.0A15W80mVp-p. The item highlights single-output, wall-mounted style and high reliability. It is a class II power unit (no FG), with a 2-Pin standard European AC power plug. At the same time, GST18E07 adopts the input range from 85VAC to 264VAC with output voltage 7.5VDC. So that it could meet the demands for various types of consumer electronic devices. As the efficiency reaches high up to 89% and extremely low no-load power consumption below 0.075W, Meanwell GST18E07 is compliant with EU ErP, and Code of Conduct (CoC) Version 5. The supreme feature permits the adaptor to save energy when it is either under operating mode or standby mode. Furthermore, the model utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock. GST18E07 is also certified for the international safety regulations. Thanks to its high safety, high quality and high performance, Meanwell GST18E07 serves as a high performance power supply solution for various types of consumer electronic devices.
Meanwell GST18E07-P1J Encoding
| GST | Series Name |
| 18 | Rated Wattage |
| E | European 2 pin AC Plug |
| 7 | Output Voltage |
| P1J | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| Other Options available by customer requested |
Meanwell GST18E07-P1J Specifications
| ORDER NO. | GST18E07-P1J | |
| OUTPUT | SAFETY MODEL NO. | GST18E07 |
| DC VOLTAGE | 7.5V | |
| RATED CURRENT | 2.0A | |
| CURRENT RANGE | 0-2.0A | |
| RATED POWER | 15W | |
| RIPPLE & NOISE (max.) | 80mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±5.0% | |
| SETUP, RISE, HOLD UP TIME | 1000ms, 30ms, 50ms/230VAC 1500ms, 30ms, 15ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 85 ~ 264VAC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 85.00% | |
| AC CURRENT | 0.5A / 115VAC 0.3A / 230VAC | |
| INRUSH CURRENT (max.) | Cold start 35A / 115VAC 65A / 230VAC | |
| LEAKAGE CURRENT(max.) | 0.25mA / 240VAC | |
| PROTECTION | OVERLOAD | 110 ~ 150% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 110 ~ 140% rated output voltage | |
| Protection type : Clamp by zener diode, output short | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% /℃(0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | TUV EN62368-1, EAC TP TC 004 approved; SIRIM MS IEC60950-1 (optional) approved |
| WITHSTAND VOLTAGE | I/P-O/P:4242VDC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| Others | Life | 3879.7K hrs min. Telcordia SR-332 (Bellcore) ; 668.4K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 79*54*33mm (L*W*H) | |
| PACKING | 202.5g; 60pcs/13.2Kg/1.15CUFT | |
Meanwell GST18E07-P1J Features
l Pass LPS
l 3 years warranty
l Global certificates
l Universal AC input/Full range
l 2 pole EURO plug, Class II power unit
l No load power consumption< 0.075W
l Energy efficiency Level VI
l Comply with EU ErP and CoC Version 5
l Protections: Short circuit/Overload/Over voltage
l Fully enclosed plastic case
l -30~+70℃ wide range working temperature
l LED indicator for power on
l Various DC plug quick adapter accessory available
Meanwell GST18E07-P1J Applications
l Office facilities
l Industrial equipment
l Telecommunication devices
l Consumer electronic devices
Meanwell GST18E07-P1J Mechanical Diagram
