GST18A18-P1J
9.05
Details

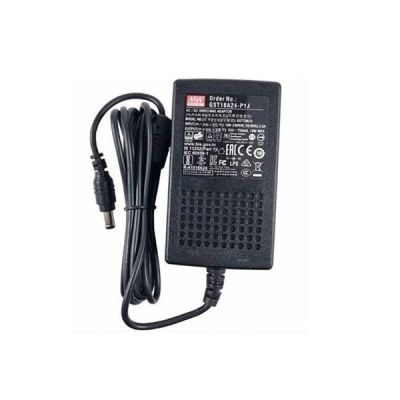

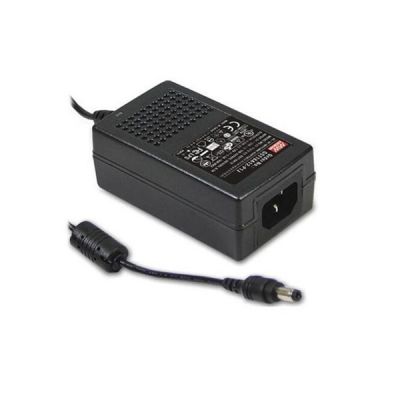

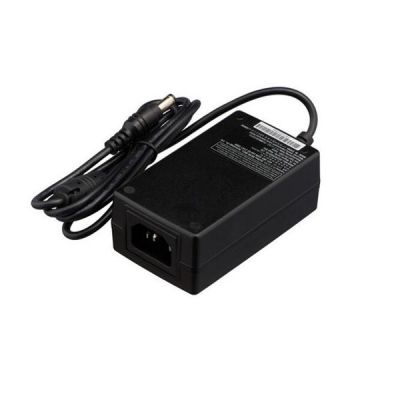

Meanwell GST18A18 is a 18W AC-DC Green Industrial Adaptor with 18V1.0A0-1.0A18W150mVp-p. The unit stands out with single-output, desktop style and high reliability. It is a class I power unit (with FG), equipped with standard IEC320-C14 AC inlet. GST18A18 adopts the input range from 85VAC to 264VAC with output voltage 18VDC, so that it could satisfy the demands for various types of consumer electronic devices. Meanwhile, the efficiency reaches high up to 89% and extremely low no-load power consumption below 0.075W. GST18A18 is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, Korea K-MEPS, EU ErP, and Code of Conduct (CoC) Version 5. Additionally, the supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. The model utilizes the 94V-0 flame retardant plastic case, and also certified for the international safety regulations. Because of its good quality, high reliability, and long lifespan, Meanwell GST18A18 serves as a high-performance power supply solution for various applications.
Meanwell GST18A18-P1J Encoding
| GST | Series Name |
| 18 | Rated Wattage |
| A | IEC320-C14 AC Inlet |
| 5 | Output Voltage |
| P1J | DC Plug Type Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х1 1mm, C+ tuning fork type |
| DC Plug Type Other options available by customer requested |
Meanwell GST18A18-P1J Specifications
| ORDER NO. | GST18A18-P1J | |
| OUTPUT | SAFETY MODEL NO. | GST18A18 |
| DC VOLTAGE | 18V | |
| RATED CURRENT | 1.0A | |
| CURRENT RANGE | 0-1.0A | |
| RATED POWER | 18W | |
| RIPPLE & NOISE (max.) | 150mVp-p | |
| VOLTAGE TOLERANCE | ±3.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±3.0% | |
| SETUP, RISE, HOLD UP TIME | 1000ms, 30ms, 50ms/230VAC 1500ms, 30ms, 15ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 85 ~ 264VAC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 88.00% | |
| AC CURRENT | 0.5A / 115VAC 0.3A / 230VAC | |
| INRUSH CURRENT (max.) | Cold start 35A / 115VAC 65A / 230VAC | |
| LEAKAGE CURRENT(max.) | 0.75mA / 240VAC | |
| PROTECTION | OVERLOAD | 110 ~ 150% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 110 ~ 140% rated output voltage | |
| Protection type : Clamp by zener diode, output short | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% /℃(0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 No.62368-1, TUV BS EN/EN62368-1, BSMI CNS 14336-1 , CCC GB4943.1, PSE J62368-1, AS/NZS 60950.1，BIS IS13252, KC K60950-1, EAC TP TC 004 approved; SIRIM MS IEC62368-1 (optional) approved |
| WITHSTAND VOLTAGE | I/P-O/P:4242VDC , I/P-FG:2121VDC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55035 | |
| Others | MTBF | 3879.7K hrs min. Telcordia SR-332 (Bellcore) ; 668.4K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 93*54*36mm (L*W*H) | |
| PACKING | 209g; 60pcs/13.5Kg/1.02CUFT | |
Meanwell GST18A18-P1J Features
l Pass LPS
l 3 years warranty
l Global certificates
l Energy efficiency Level VI
l LED indicator for power on
l Universal AC input/Full range
l Fully enclosed plastic case
l 3 pole AC inlet IEC320-C14, Class I power unit
l No load power consumption< 0.075W
l -30℃~+70℃ wide range working temperature
l Various DC plug quick adapter accessory available
l Protections: Short circuit/Overload/Over voltage
l Comply with EISA 2007/DoE, NRCan, Korea K-MEPS, AU/NZ MEPS, EU ErP and CoC Version 5
Meanwell GST18A18-P1J Applications
l Consumer electronic devices
l Telecommunication devices
l Office facilities
l Industrial equipment
Meanwell GST18A18-P1J Mechanical Diagram
