GST18A05-P1J
9
Details

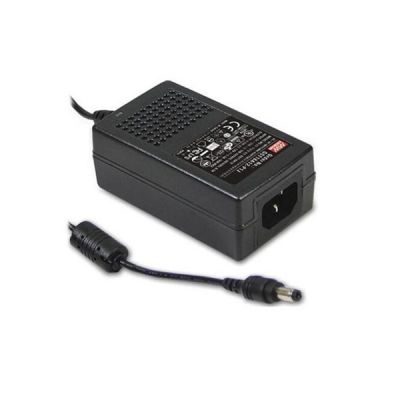

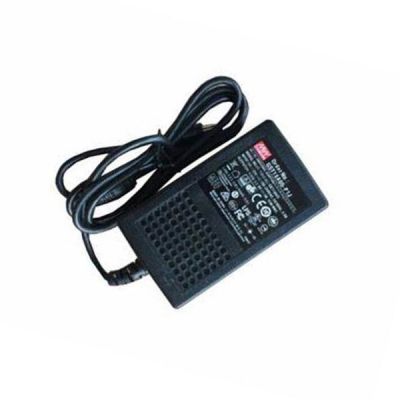

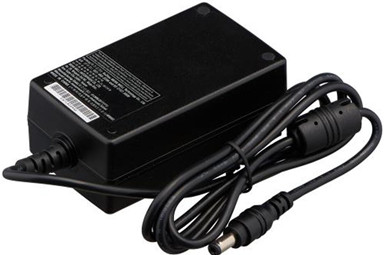

Meanwell GST18A05 is a 18W AC-DC Green Industrial Adaptor with 5V3.0A0-3.0A15W80mVp-p. The product highlights single-output, desktop style and high reliability. It is a class I power unit (with FG), equipped with standard IEC320-C14 AC inlet. At the same time, GST18A05 adopts the input range from 85VAC to 264VAC with output voltage 5VDC, so that it can satisfy the demands for various types of consumer electronic devices. The efficiency reaches high up to 89% and extremely low no-load power consumption below 0.075W. GST18A05 is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, Korea K-MEPS, EU ErP, and Code of Conduct (CoC) Version 5. Additionally, the supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. The model also utilizes the 94V-0 flame retardant plastic case. It is certified for the international safety regulations as well. Due to its good quality, high reliability, and long lifespan, Meanwell GST18A05 serves as a high-performance power supply solution for various applications.
Meanwell GST18A05-P1J Encoding
| GST | Series Name |
| 18 | Rated Wattage |
| A | IEC320-C14 AC Inlet |
| 5 | Output Voltage |
| P1J | DC Plug Type Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х1 1mm, C+ tuning fork type |
| DC Plug Type Other options available by customer requested |
Meanwell GST18A05-P1J Specifications
| ORDER NO. | GST18A05-P1J | |
| OUTPUT | SAFETY MODEL NO. | GST18A05 |
| DC VOLTAGE | 5V | |
| RATED CURRENT | 3.0A | |
| CURRENT RANGE | 0-3.0A | |
| RATED POWER | 15W | |
| RIPPLE & NOISE (max.) | 80mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±5.0% | |
| SETUP, RISE, HOLD UP TIME | 1000ms, 30ms, 50ms/230VAC 1500ms, 30ms, 15ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 85 ~ 264VAC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 81.00% | |
| AC CURRENT | 0.5A / 115VAC 0.3A / 230VAC | |
| INRUSH CURRENT (max.) | Cold start 35A / 115VAC 65A / 230VAC | |
| LEAKAGE CURRENT(max.) | 0.75mA / 240VAC | |
| PROTECTION | OVERLOAD | 110 ~ 150% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 110 ~ 140% rated output voltage | |
| Protection type : Clamp by zener diode, output short | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% /℃(0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 No.62368-1, TUV BS EN/EN62368-1, BSMI CNS 14336-1 , CCC GB4943.1, PSE J62368-1, AS/NZS 60950.1，BIS IS13252, KC K60950-1, EAC TP TC 004 approved; SIRIM MS IEC62368-1 (optional) approved |
| WITHSTAND VOLTAGE | I/P-O/P:4242VDC , I/P-FG:2121VDC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55035 | |
| Others | MTBF | 3879.7K hrs min. Telcordia SR-332 (Bellcore) ; 668.4K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 93*54*36mm (L*W*H) | |
| PACKING | 209g; 60pcs/13.5Kg/1.02CUFT | |
Meanwell GST18A05-P1J Features
l Fully enclosed plastic case
l Pass LPS
l -30℃~+70℃ wide range working temperature
l LED indicator for power on
l Various DC plug quick adapter accessory available
l 3 years warranty
l Global certificates
l Universal AC input/Full range
l 3 pole AC inlet IEC320-C14, Class I power unit
l No load power consumption< 0.075W
l Energy efficiency Level VI
l Comply with EISA 2007/DoE, NRCan, Korea K-MEPS, AU/NZ MEPS, EU ErP and CoC Version 5
l Protections: Short circuit/Overload/Over voltage
Meanwell GST18A05-P1J Applications
l Consumer electronic devices
l Telecommunication devices
l Office facilities
l Industrial equipment
Meanwell GST18A05-P1J Mechanical Diagram
