GST160A48-R7B
16.91

GST160A48-R7B

$16.91

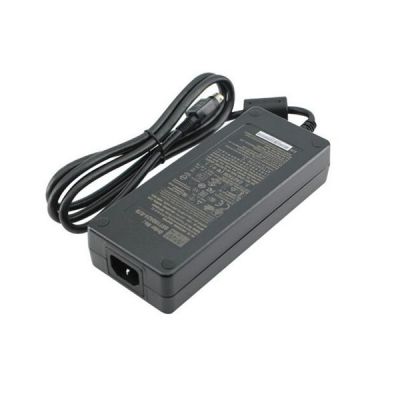

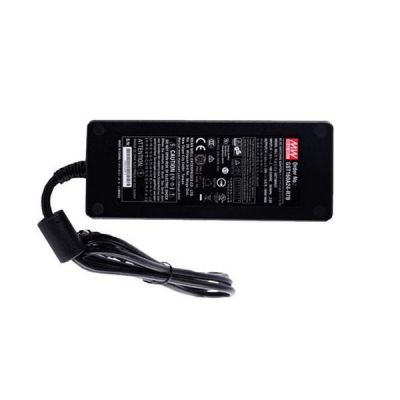

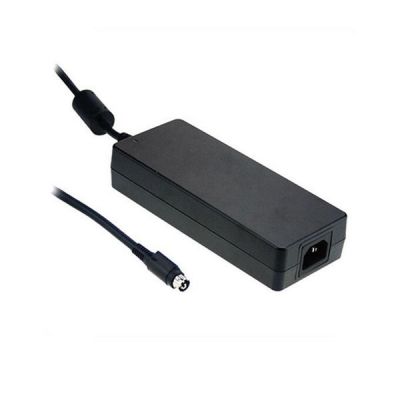

Meanwell 160W AC-DC Reliable Green Industrial Adaptor with 48V3.34A0-3.34A160W200mVp-p±3.0%±1.0%±3.0%

- +
Availability:In stock
SKU Meanwell GST160A48-R7B
Brand Meanwell
Details

Meanwell GST160A48 is a 160W green adaptor with 48V3.34A0-3.34A160W200mVp-p. It stands out with desktop style single-output. The item is class I power unit (with FG), equipped with standard IEC320-C14 AC inlet. At the same time, GST160A48 adopts the input range from 85VAC to 264VAC with output voltages 48VDC. Therefore, this can meet the demands for various types of consumer electronic devices. As the efficiency reaches high up to 94% and extremely low no-load power consumption below 0.15W, the product complies with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, Korea K-MEPS, EU ErP and Code of Conduct (CoC) Version 5. Furthermore, the supreme feature allows the adaptor to save the energy when it is either under operating mode or standby mode. Additionally, the unit utilizes the 94V-0 flame retardant plastic case, which is certified for the international safety regulations. Because of its good quality, high reliability and long lifespan, Meanwell GST160A48 serves as a high performance power supply solution for various applications.

Meanwell GST160A48 Price and Specs 160W AC-DC Reliable Green Industrial Adaptor 3 pole AC inlet 3.34A PFC YCICT

Meanwell GST160A48-R7B Encoding

GST Series Name
160 Rated Wattage
A IEC320-C14 AC Inlet
48 Output Voltage
R7B DC plug type R7B: Standard model, Power DIN 4Pin with lock type
DC plug type Other options available by customer requested

Meanwell GST160A48-R7B Specifications

ORDER NO. GST160A48-R7B
OUTPUT SAFETY MODEL NO. GST160A48
DC VOLTAGE 48V
RATED CURRENT 3.34A
CURRENT RANGE 0-3.34A
RATED POWER (max) 160W
RIPPLE & NOISE (max.) 200mVp-p
VOLTAGE TOLERANCE ±3.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±3.0%
HOLD UP TIME (Typ.) 2000ms, 50ms / 230VAC 2500ms, 50ms / 115VAC at full load
SETUP, RISE, HOLD UP TIME 20ms / 230VAC 20ms / 115VAC at full load
INPUT VOLTAGE RANGE 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) 12V/15V:PF>0.93 / 230VAC 20V,24V,48V:PF>0.94 / 230VAC PF>0.98 / 115VAC at full load
EFFICIENCY (Typ.) 94.00%
AC CURRENT 1.85A / 115VAC 1A / 230VAC
INRUSH CURRENT (max.) Cold start 95A / 115VAC 120A / 230VAC
LEAKAGE CURRENT(max.) 0.75mA / 240VAC
PROTECTION OVERLOAD 105 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 105 ~ 135% rated output voltage
Protection type : Hiccup mode @ 10%load
OVER TEMPERATURE Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. -30 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85 , 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03% / (0~50 )
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS UL62368-1, CSA C22.2 No.62368-1, TUV BS EN/EN62368-1, BSMI CNS14336, CCC GB4943.1, PSE J62368-1,AS/NZS 60950.1 ,
BIS IS13252, KC K60950-1, EAC TP TC 004 approved; SIRIM MS IEC60950-1 (optional) approved
WITHSTAND VOLTAGE I/P-O/P: 3KVAC I/P-FG: 2KVAC O/P-FG:SHORT
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC IMMUNITY BS EN/EN55035
Others MTBF 2205.4K hrs min. Telcordia SR-332 (Bellcore) ; 236.4K hrs min. MIL-HDBK-217F (25)
DIMENSION 175*72*35mm (L*W*H)
PACKING 0.66Kg; 20pcs/ 14.2Kg/ 0.95CUFT

Meanwell GST160A48-R7B Features

l  3 years warranty

l  Energy efficiency Level VI

l  Fully enclosed plastic case

l  LED indicator for power on

l  Universal AC input/Full range

l  Built-in active PFC function

l  No load power consumption<0.1 5W

l  -30~+70℃ wide range working temperature

l  3 pole AC inlet lEC320-C14, Class I power unit

l  Various DC plug quick adapter accessory available

l  Protections: Short circuit/Overload/Over voltage/Over temperature

l  Comply with EISA 2007/DoE, NRCan, AU/NZ MEPS, EU ErP and CoC Version 5

Meanwell GST160A48 Price and Specs 160W AC-DC Reliable Green Industrial Adaptor 3 pole AC inlet 48V 3.34A PFC YCICT

Meanwell GST160A48-R7B Applications

l  Office facilities

l  Industrial equipment

l  Consumer electronic devices

l  Telecommunication devices

Meanwell GST160A48 Price and Specs 160W AC-DC Reliable Green Industrial Adaptor 3 pole AC inlet 48V 3.34A with PFC YCICT

Meanwell GST160A48-R7B Mechanical Diagram

Meanwell GST160A48 Price and Datasheet 160W AC-DC Reliable Green Industrial Adaptor 3 pole AC inlet 48V 3.34A PFC YCICT
