GST160A15-R7B
15.35
Details

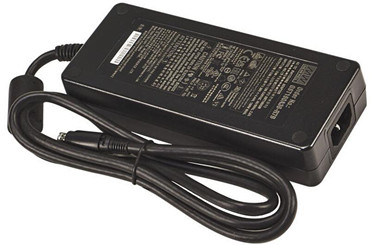

Meanwell GST160A15 is a 160W green adaptor with 15V9.6A0-9.6A144W100mVp-p. The model highlights desktop style single-output and class I power unit (with FG), equipped with standard IEC320-C14 AC inlet. At the same time, it adopts the input range from 85VAC to 264VAC with output voltages 15VDC. Therefore, that can satisfy the demands for various types of consumer electronic devices. Since the efficiency reaches high up to 94% and extremely low no-load power consumption below 0.15W, GST160A15 complies with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, Korea K-MEPS, EU ErP and Code of Conduct (CoC) Version 5. What’s more, the supreme feature permits the adaptor to save the energy when it is either under operating mode or standby mode. Additionally. The unit utilizes the 94V-0 flame retardant plastic case, which is certified for the international safety regulations. Thanks to its good quality, high reliability and long lifespan, Meanwell GST160A15 serves as a high performance power supply solution for various applications.
Meanwell GST160A15-R7B Encoding
| GST | Series Name |
| 160 | Rated Wattage |
| A | IEC320-C14 AC Inlet |
| 15 | Output Voltage |
| R7B | DC plug type R7B: Standard model, Power DIN 4Pin with lock type |
| DC plug type Other options available by customer requested |
Meanwell GST160A15-R7B Specifications
| ORDER NO. | GST160A15-R7B | |
| OUTPUT | SAFETY MODEL NO. | GST160A15 |
| DC VOLTAGE | 15V | |
| RATED CURRENT | 9.6A | |
| CURRENT RANGE | 0-9.6A | |
| RATED POWER (max) | 144W | |
| RIPPLE & NOISE (max.) | 100mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±5.0% | |
| HOLD UP TIME (Typ.) | 2000ms, 50ms / 230VAC 2500ms, 50ms / 115VAC at full load | |
| SETUP, RISE, HOLD UP TIME | 20ms / 230VAC 20ms / 115VAC at full load | |
| INPUT | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | 12V/15V:PF>0.93 / 230VAC 20V,24V,48V:PF>0.94 / 230VAC PF>0.98 / 115VAC at full load | |
| EFFICIENCY (Typ.) | 91.00% | |
| AC CURRENT | 1.85A / 115VAC 1A / 230VAC | |
| INRUSH CURRENT (max.) | Cold start 95A / 115VAC 120A / 230VAC | |
| LEAKAGE CURRENT(max.) | 0.75mA / 240VAC | |
| PROTECTION | OVERLOAD | 105 ~ 150% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 105 ~ 135% rated output voltage | |
| Protection type : Hiccup mode @ 10%load | ||
| OVER TEMPERATURE | Protection type : Shut down o/p voltage, re-power on to recover | |
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃ , 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% / ℃ (0~50℃ ) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 No.62368-1, TUV BS EN/EN62368-1, BSMI CNS14336, CCC GB4943.1, PSE J62368-1,AS/NZS 60950.1 , BIS IS13252, KC K60950-1, EAC TP TC 004 approved; SIRIM MS IEC60950-1 (optional) approved |
| WITHSTAND VOLTAGE | I/P-O/P: 3KVAC I/P-FG: 2KVAC O/P-FG:SHORT | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55035 | |
| Others | MTBF | 2205.4K hrs min. Telcordia SR-332 (Bellcore) ; 236.4K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 175*72*35mm (L*W*H) | |
| PACKING | 0.66Kg; 20pcs/ 14.2Kg/ 0.95CUFT | |
Meanwell GST160A15-R7B Features
l 3 years warranty
l Universal AC input/Full range
l 3 pole AC inlet lEC320-C14, Class I power unit
l Built-in active PFC function
l No load power consumption<0.1 5W
l Energy efficiency Level VI
l Fully enclosed plastic case
l LED indicator for power on
l Various DC plug quick adapter accessory available
l Comply with EISA 2007/DoE, NRCan, AU/NZ MEPS, EU ErP and CoC Version 5
l Protections: Short circuit/Overload/Over voltage/Over temperature
l -30~+70℃ wide range working temperature
Meanwell GST160A15-R7B Applications
l Office facilities
l Industrial equipment
l Consumer electronic devices
l Telecommunication devices
Meanwell GST160A15-R7B Mechanical Diagram
