GST120A20-R7B/P1M
12.62
Details

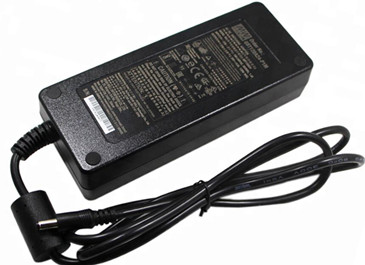

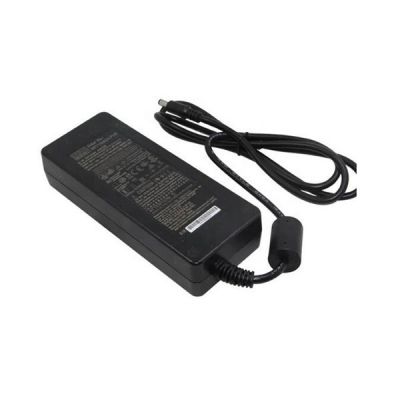

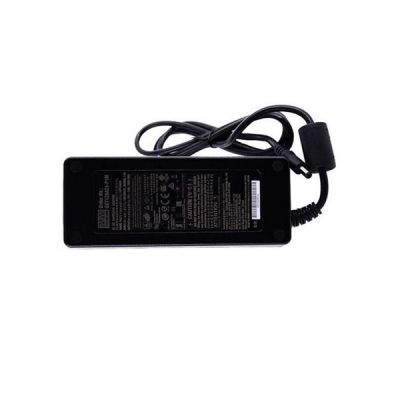

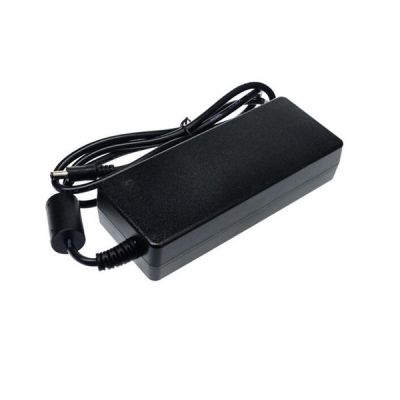

Meanwell GST120A20 is a 120W desktop style single output adaptor with 15V7A0-7A105W120mVp-p. The model is a highly reliable class I power unit (with FG) with standard IEC320-C14 AC inlet. GST120A20 adopts the input ranging from 85VAC to 264VAC, and provides with output voltages 20VDC. Therefore, this could meet the demands for various types of consumer electronic devices. Since the efficiency reaches high up to 91% and extremely low no-load power consumption below 0.15W, Meanwell GST 120A20 complies with USA EISA 2007/DoE, Canada NRCan, Australia and New Zeal and MEPS, Korea K MEPS, EU ErP and Code of Conduct (CoC) Version 5. Moreover, the supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. Additionally, the unit utilizes the 94V-0 flame retardant plastic case, which is certified for the international safety regulations. In light of its good quality, high reliability and long lifespan, Meanwell GST120A20 serves as a high performance power supply solution for various applications.
Meanwell GST120A20-R7B/P1M Encoding
| GST | Series Name |
| 120 | Rated Wattage |
| A | IEC320-C14 AC Inlet |
| 20 | Output Voltage |
| R7B | DC plug type R7B: Plug for 12~48V ,Power DIN 4 Pin with lock type (standard) |
| DC plug type Р1М: Рlug fоr 20~48V оnlу,2.5 ф х5. 5 ф х11mm,С+,tunіng fоrk tуре (ѕtаndаrd) | |
| DC plug type Other options available by customer requested |
Meanwell GST120A20-R7B/P1M Specifications
| ORDER NO. | GST120A20-R7B/P1M | |
| OUTPUT | SAFETY MODEL NO. | GST120A20 |
| DC VOLTAGE | 20V | |
| RATED CURRENT | 6A | |
| CURRENT RANGE | 0-6A | |
| RATED POWER (max) | 120W | |
| RIPPLE & NOISE (max.) | 150mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±4.0% | |
| HOLD UP TIME (Typ.) | 20ms / 230VAC 20ms / 115VAC at full load | |
| SETUP, RISE, HOLD UP TIME | 1000ms, 50ms / 230VAC 1000ms, 50ms / 115VAC at full load | |
| INPUT | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>0.93 / 230VAC PF>0.97 / 115VAC at full load | |
| EFFICIENCY (Typ.) R7B | 90.00% | |
| EFFICIENCY (Typ.) P1M | 89.00% | |
| AC CURRENT | 1.4A / 115VAC 0.7A / 230VAC | |
| INRUSH CURRENT (max.) | Cold start 35 / 115AC 70A / 230VAC | |
| LEAKAGE CURRENT(max.) | 0.75mA / 240VAC | |
| PROTECTION | OVERLOAD | 105 ~ 160% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 105 ~ 135% rated output voltage | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% /℃(0~45℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, BSMI CNS14336, CCC GB4943.1, PSE J62368-1,AS/NZS 60950.1 , BIS IS13252, KC K60950-1, EAC TP TC 004 approved; SIRIM MS IEC60950-1 (optional) approved |
| WITHSTAND VOLTAGE | I/P-O/P: 3KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55035 | |
| Others | MTBF | 2250.5K hrs min. Telcordia SR-332 (Bellcore) ; 368.5K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 167*67*35mm (L*W*H) | |
| PACKING | 0.62Kg; 20pcs/13.4Kg/0.89CUFT | |
Meanwell GST120A20-R7B/P1M Features
l 3 years warranty
l Global certificates
l Universal AC input/Full range
l 3 pole AC inlet IEC320-C14, Class I power unit
l Built-in active PFC function
l No load power consumption<0.15W
l Energy efficiency Level VI
l Fully enclosed plastic case
l -30℃~+70℃ wide range working temperature
l LED indicator for power on
l Various DC plug quick adapter accessory available
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Comply with EISA 2007/DoE, NRCan, Korea K-MEPS, AU/NZ MEPS, EU ErP and CoC Version 5
Meanwell GST120A20-R7B/P1M Applications
l Office facilities
l Industrial equipment
l Consumer electronic devices
l Telecommunication devices
Meanwell GST120A20-R7B/P1M Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
Custom Tab
