GSM60U48-P1J
13.36
Details

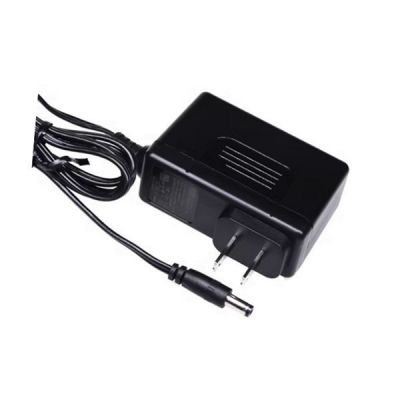

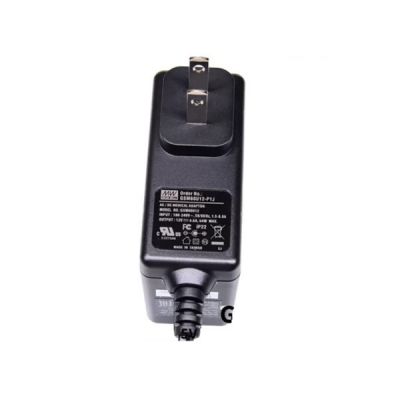

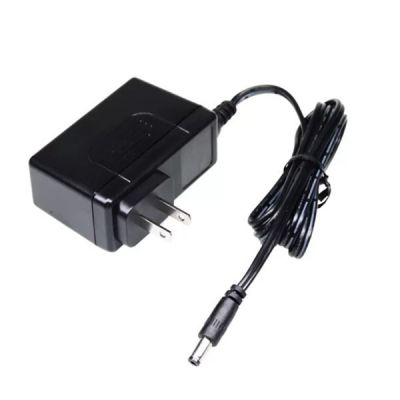

Meanwell GSM60U48 is a 60W AC-DC Reliable Green Slim Medical Adaptor with 48V1.25A0-1.25A60W150mVp-p±3.0%±1.0%±2.0%. The unit highlights single-output, Wall-mounted, compact and convenient for carry. It is a classⅡpower unit (no FG) with standard 2-Pin U.S. plug. Meanwhile, GSM60U48 provides output voltage 48VDC with the input ranging from 80VAC to 264VAC. So that it can satisfy the demands for various types of medical electronic devices. The circuitry design meets the international medical standards (2*MOPP) with an ultra-low leakage current (<100uA), fitting the medical devices in direct electrical contact with the patients. Since the efficiency reaches high up to 90% and extremely low no-load power consumption below 0.1 5W, GSM60U48 is compliant with the latest U.S. energy regulation EISA 2007/DoE (LeveI VI). The supreme feature allows the adaptor to save energy when it is under either operating mode or standby mode. Additionally, it is approved for international safety regulations, and adopts the 94V-0 flame retardant plastic case, which effectively prevents users from electric hazards. Thanks to its high safety, high quality and high efficiency, Meanwell GSM60U48 serves as an ideal power supply solution for various types of medical electronic devices.
Meanwell GSM60U48-P1J Encoding
| GSM | Series Name |
| 60 | Rated Wattage |
| U | US 2 pin AC Plug |
| 48 | Output Voltage |
| P1J DC Plug Type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| Other Options available by customer requested |
Meanwell GSM60U48-P1J Specifications
| ORDER NO. | GSM60U48-P1J | |
| OUTPUT | SAFETY MODEL NO. | GSM60U48 |
| DC VOLTAGE | 48V | |
| RATED CURRENT | 1.25A | |
| CURRENT RANGE | 0-1.25A | |
| RATED POWER | 60W | |
| RIPPLE & NOISE (max.) | 150mVp-p | |
| VOLTAGE TOLERANCE | ±3.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±2.0% | |
| SETUP, RISE, HOLD UP TIME | 1000ms, 100ms, 10ms/230VAC 1000ms, 100ms, 10ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC 113 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 90.00% | |
| AC CURRENT | 1.5A / 115VAC 0.8A / 230VAC | |
| INRUSH CURRENT (max.) | Cold start 50A / 115VAC 100A / 230VAC | |
| LEAKAGE CURRENT(max.) | Touch current < 100μA/264VAC | |
| PROTECTION | OVERLOAD | 105 ~ 160% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 110 ~ 140% rated output voltage | |
| Protection type : Clamp by zener diode, output short | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -30 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% /℃(0~40℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | ANSI/ AAMI ES60601-1/ES60601-1-11(3.1 version), CAN/CSA-C22 NO. 60601-1 3rd edition approved |
| ISOLATION LEVEL | Pimary - Secondary: 2 x MOPP | |
| WITHSTAND VOLTAGE | I/P-O/P:5656VDC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| Others | MTBF | 400Khrs min. MIL-HDBK-217F(25℃) |
| DIMENSION | 75.5*32*47.5mm (L*W*H) | |
| PACKING | 200g ; 60pcs / 13kg / CARTON | |
| LIFE | 3 years : 100% load 40℃, 8hours / day | |
Meanwell GSM60U48-P1J Features
l Extremely Low leakage current
l 2 pole USA plug, ClassⅡpower unit
l No load power consumption <0.15W
l Energy efficiency Level VI (except 5~9V for Level V)
l -30~+70℃ wide range working temperature
l Protections: Short circuit/Overload/Over voltage
l Fully enclosed plastic case
l Various DC plug quick adapter accessory available
l 3 years warranty
l Ultra slim, compact size
l Medical safety approved (2XMOPP) according to ANSI/ AAMI E S60601-1/ES60601-1-11
Meanwell GSM60U48-P1J Applications
l Blood glucose meter
l Blood pressure meter
l Nebulizer
l Inhaler
l Portable medical device
l Sleep apnea devices
Meanwell GSM60U48-P1J Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
