GSM60U12-P1J
13.17

GSM60U12-P1J

$13.17

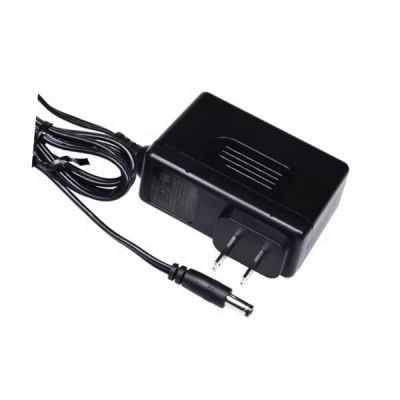

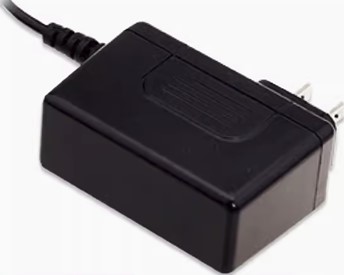

Meanwell 60W AC-DC Reliable Green Slim Wall-mounted Medical Adaptor with 12V4.5A0-4.5A54W100mVp-p±5.0%±1.0%±3.0%

- +
Availability:In stock
SKU Meanwell GSM60U12-P1J
Brand Meanwell
Details

Meanwell GSM60U12 is a 60W AC-DC Reliable Green Slim Medical Adaptor with 12V4.5A0-4.5A54W100mVp-p±5.0%±1.0%±3.0%. The model stands out with single-output, Wall-mounted, compact and convenient for carry. It is a classⅡpower unit (no FG), equipped with standard 2-Pin U.S. plug, accepting the input range from 80VAC to 264VAC. At the same time, GSM60U12 provides output voltage 12VDC, so that it could satisfy the demands for various types of medical electronic devices. The circuitry design meets the international medical standards (2*MOPP), having an ultra-low leakage current (<100uA), fitting the medical devices in direct electrical contact with the patients. As the efficiency reaches high up to 90% and extremely low no-load power consumption below 0.1 5W, GSM60U12 is compliant with the latest U.S. energy regulation EISA 2007/DoE (LeveI VI). The supreme feature allows the adaptor to save energy when it is under either operating mode or standby mode. What’s more, the product is approved for international safety regulations. It also adopts the 94V-0 flame retardant plastic case, which effectively prevents users from electric hazards. In view of its high safety, high quality and high efficiency, Meanwell GSM60U12 serves as an ideal power supply solution for various types of medical electronic devices.

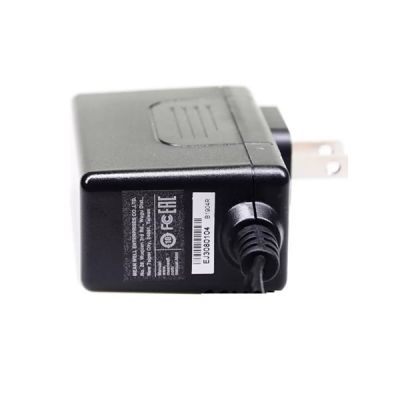

Meanwell GSM60U12 Price and Specs 60W AC-DC Medical Adaptor GSM60U05 07 09 12 15 18 24 48 USA 2 Pole 12V 4.5A YCICT

Meanwell GSM60U12-P1J Encoding

GSM Series Name
60 Rated Wattage
U US 2 pin AC Plug
12 Output Voltage
P1J DC Plug Type Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type
Other Options available by customer requested

Meanwell GSM60U12-P1J Specifications

ORDER NO. GSM60U12-P1J
OUTPUT SAFETY MODEL NO. GSM60U12
DC VOLTAGE 12V
RATED CURRENT 4.5A
CURRENT RANGE 0-4.5A
RATED POWER 54W
RIPPLE & NOISE (max.) 100mVp-p
VOLTAGE TOLERANCE ±5.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±3.0%
SETUP, RISE, HOLD UP TIME 1000ms, 100ms, 10ms/230VAC 1000ms, 100ms, 10ms/115VAC at full load
INPUT VOLTAGE RANGE 80 ~ 264VAC 113 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 88.00%
AC CURRENT 1.5A / 115VAC 0.8A / 230VAC
INRUSH CURRENT (max.) Cold start 50A / 115VAC 100A / 230VAC
LEAKAGE CURRENT(max.) Touch current < 100μA/264VAC
PROTECTION OVERLOAD 105 ~ 160% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 110 ~ 140% rated output voltage
Protection type : Clamp by zener diode, output short
ENVIRONMENT WORKING TEMP. -30 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -30 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03% /(0~40)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS ANSI/ AAMI ES60601-1/ES60601-1-11(3.1 version), CAN/CSA-C22 NO. 60601-1 3rd edition approved
ISOLATION LEVEL Pimary - Secondary: 2 x MOPP
WITHSTAND VOLTAGE I/P-O/P:5656VDC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
Others MTBF 400Khrs min. MIL-HDBK-217F(25)
DIMENSION 75.5*32*47.5mm (L*W*H)
PACKING 200g ; 60pcs / 13kg / CARTON
LIFE 3 years : 100% load 40, 8hours / day

Meanwell GSM60U12-P1J Features

l  Ultra slim, compact size

l  Extremely Low leakage current

l  2 pole USA plug, ClassⅡpower unit

l  No load power consumption <0.15W

l  Energy efficiency Level VI (except 5~9V for Level V)

l  -30~+70℃ wide range working temperature

l  Protections: Short circuit/Overload/Over voltage

l  Fully enclosed plastic case

l  Various DC plug quick adapter accessory available

l  3 years warranty

l  Medical safety approved (2XMOPP) according to ANSI/ AAMI E S60601-1/ES60601-1-11

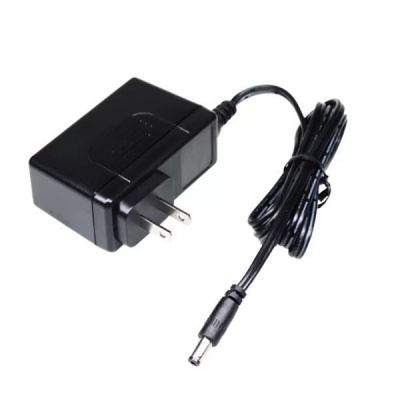

Meanwell GSM60U12 Price and Specs 60W AC-DC Medical Adaptor GSM60U05 07 09 12 15 18 24 48 USA type 2 Pole 12V 4.5A YCICT

Meanwell GSM60U12-P1J Applications

l  Blood glucose meter

l  Blood pressure meter

l  Nebulizer

l  Inhaler

l  Portable medical device

l  Sleep apnea devices

Meanwell GSM60U12 Price and Specs 60W AC-DC Medical Adaptor GSM60U05 07 09 12 15 18 24 48 USA type 12V 4.5A YCICT

Meanwell GSM60U12-P1J Mechanical Diagram

Meanwell GSM60U12 Price and Datasheet 60W AC-DC Medical Adaptor GSM60U05 07 09 12 15 18 24 48 USA type 12V 4.5A YCICT
