GSM60B48-P1J
13.98
Details

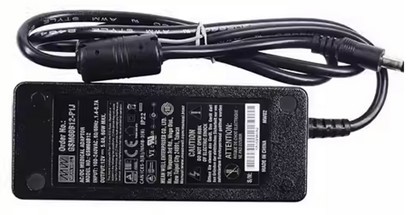

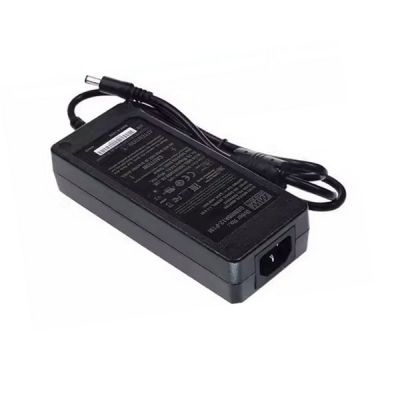

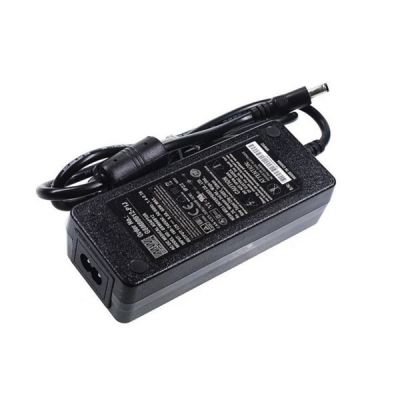

Meanwell GSM60B48 is a 60W AC-DC Green Medical Adaptor with 48V1.25A0-1.25A60W200mVp-p. The product features desktop style, single-output and high reliability. It is equipped with a 2-pin (no FG) standard IEC320-C8 power plug. Meanwhile, GSM60B48 adopts the input range from 80VAC to 264VAC, equipped with output voltage 48VDC, so that it is able to satisfy the demands for various kinds of medical electrical devices. The circuitry design meets the international medical standards (2*MOP P), having an ultra-low leakage current (<50uA), and thus fits the medical devices indirect electrical contact with the patients. What’s more, the work efficiency reaches high up to 91.5% and extremely low no-load power consumption below 0.1W. GSM60B48 is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, EU ErP, and meet Code of Conduct (CoC) Version 5. The supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. In addition, it utilizes the 94V-0 flame retardant plastic case, offering the double insulation which effectively prevents electrical shock. The model is approved with the international medical safety certificates as well. As a result of its longevity, high efficiency, and excellent performance, Meanwell GSM60B48 serves as an ideal power supply solution for various types of medical electronic device.
Meanwell GSM60B48-P1J Encoding
| GSM | Series Name |
| 60 | Rated Wattage |

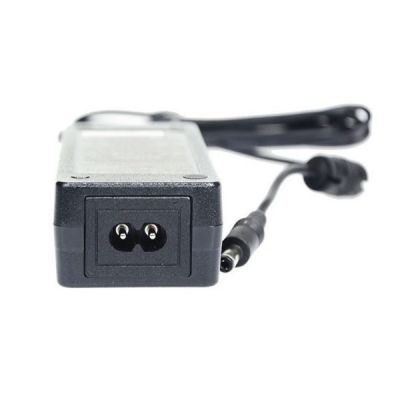

| B | IEC320-C8 AC Inlet |
| 48 | Output Voltage |
| P1J- DC plug type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1ѱХ5.5ѱх11mm, С+, tunіng fоrk tуре |
| Other Options available by customer requested |
Meanwell GSM60B48-P1J Specifications
| ORDER NO. | GSM60B48-P1J | |
| OUTPUT | SAFETY MODEL NO. | GSM60B48 |
| DC VOLTAGE | 48V | |
| RATED CURRENT | 1.25A | |
| CURRENT RANGE | 0-1.25A | |
| RATED POWER | 60W | |
| RIPPLE & NOISE (max.) | 200mVp-p | |
| VOLTAGE TOLERANCE | ±2.5% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±2.5% | |
| HOLD UP TIME (Typ.) | 50ms / 230VAC 16ms / 115VAC at full load | |
| SETUP, RISE, HOLD UP TIME | 1000ms, 30ms / 230VAC 1500ms, 30ms / 115VAC at full load | |
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 91.50% | |
| AC CURRENT | 1.4A / 115VAC 1A / 230VAC | |
| INRUSH CURRENT (max.) | Cold start 30A / 115VAC 60A / 230VAC | |
| LEAKAGE CURRENT(max.) | Touch current < 50 A/264VAC | |
| PROTECTION | OVERLOAD | 105 ~ 160% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 50.4-64.8V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% /℃(0~40℃) | |
| OPERATING ALTITUDE | 3000 meters | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | IEC60601-1/IEC60601-1-11, BS EN/EN60601-1/ BS EN/EN60601-1-11, ANSI/AAMI ES60601-1 / ES60601-1-11(3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3, EAC TP TC 004 approved |
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP | |
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN60601-1-2, BS EN/EN61204-3 | |
| Others | MTBF | 3491.2K hrs min. Telcordia SR-332 (Bellcore) ; 694.3K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 125*50*31.5mm (L*W*H) | |
| PACKING | 0.32Kg; 40pcs/13.8Kg/1.04CUFT | |
Meanwell GSM60B48-P1J Features
l Extremely low leakage current
l No load power consumption<0.1W
l -30~+70℃ wide range working temperature
l Protections: Short circuit/Overload/Over voltage/Over temperature
l LED indicator for power on
l Lifetime>95K hours
l Various DC plug quick adapter accessory available
l 3 years warranty
l 2 pole AC inlet lEC320-C8, ClassⅡ power unit
l Energy efficiency level VI and meet CoC Version 5 (Except 5~9V for Level V)
l Medical safety approved (2XMOPP) according to ANSI/AAMI ES60601-1/-1-11 and IEC/BS EN/EN60601-1/-1-1 1
Meanwell GSM60B48-P1J Applications
l Oral irrigator
l Breath Machine
l Medical computer monitor
l Mobile clinical workstation
l Portable hemodialysis machine
Meanwell GSM60B48-P1J Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
