GSM60B
13.61
Details

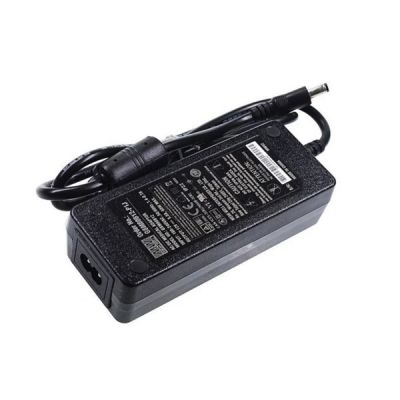

Meanwell GSM60B Series is a 60W AC-DC Green Medical Adaptor. The product features desktop style, single-output and high reliability. It is equipped with a 2-pin (no FG) standard IEC320-C8 power plug, adopting the input range from 80VAC to 264 VAC. At the same time, the entire series supplies different output voltages between 5VDC and 48VDC, so that it can satisfy the demands for various kinds of medical electrical devices. The circuitry design meets the international medical standards (2*MOP P), having an ultra-low leakage current (<50uA), fitting the medical devices indirect electrical contact with the patients. What’s more, the work efficiency reaches high up to 91.5% and extremely low no-load power consumption below 0.1W. GSM60B is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, EU ErP, and meet Code of Conduct (CoC) Version 5. The supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. In addition, the entire series utilizes the 94V-0 flame retardant plastic case, providing the double insulation which effectively prevents electrical shock. GSM60B is also approved with the international medical safety certificates. Considering its longevity, high efficiency, and excellent performance, Meanwell GSM60B Series serves as an ideal power supply solution for various types of medical electronic device.
Meanwell GSM60B Series Encoding
| GSM | Series Name |
| 60 | Rated Wattage |

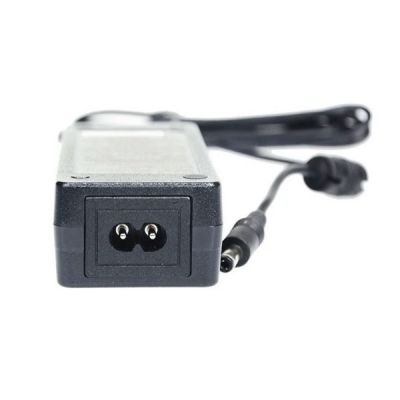

| B | IEC320-C8 AC Inlet |
| 5 | Output Voltage |

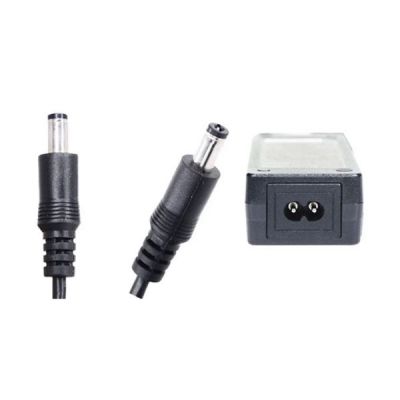

| P1J- DC plug type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1ѱХ5.5ѱх11mm, С+, tunіng fоrk tуре |
| Other Options available by customer requested |
Meanwell GSM60B Series Model Specifications
| ORDER NO. | GSM60B05-P1J | GSM60B07-P1J | GSM60B09-P1J | GSM60B12-P1J | GSM60B15-P1J | GSM60B18-P1J | GSM60B24-P1J | GSM60B48-P1J | |
| OUTPUT | SAFETY MODEL NO. | GSM60B05 | GSM60B07 | GSM60B09 | GSM60B12 | GSM60B15 | GSM60B18 | GSM60B24 | GSM60B48 |
| DC VOLTAGE | 5V | 7.5V | 9V | 12V | 15V | 18V | 24V | 48V | |
| RATED CURRENT | 6A | 6A | 6A | 5A | 4A | 3.33A | 2.5A | 1.25A | |
| CURRENT RANGE | 0-6A | 0-6A | 0-6A | 0-5A | 0-4A | 0-3.33A | 0-2.5A | 0-1.25A | |
| RATED POWER | 30W | 45W | 54W | 60W | 60W | 60W | 60W | 60W | |
| RIPPLE & NOISE (max.) | 80mVp-p | 80mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 120mVp-p | 150mVp-p | 200mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | ±5.0% | ±5.0% | ±3.0% | ±3.0% | ±3.0% | ±3.0% | ±2.5% | |
| LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LOAD REGULATION | ±5.0% | ±5.0% | ±5.0% | ±3.0% | ±3.0% | ±3.0% | ±3.0% | ±2.5% | |
| HOLD UP TIME (Typ.) | 50ms / 230VAC 16ms / 115VAC at full load | ||||||||
| SETUP, RISE, HOLD UP TIME | 1000ms, 30ms / 230VAC 1500ms, 30ms / 115VAC at full load | ||||||||
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC | |||||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||||
| EFFICIENCY (Typ.) | 81.50% | 86.00% | 87.50% | 88.00% | 88.50% | 89.00% | 90.00% | 91.50% | |
| AC CURRENT | 1.4A / 115VAC 1A / 230VAC | ||||||||
| INRUSH CURRENT (max.) | Cold start 30A / 115VAC 60A / 230VAC | ||||||||
| LEAKAGE CURRENT(max.) | Touch current < 50 A/264VAC | ||||||||
| PROTECTION | OVERLOAD | 105 ~ 160% rated output power | |||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||||
| OVER VOLTAGE | 5.2-7.0V | 7.8-10.2V | 9.4-12.2V | 12.6-16.2V | 15.7-20.3V | 18.9-24.3V | 25.2-32.4V | 50.4-64.8V | |
| Protection type : Shut down o/p voltage, re-power on to recover | |||||||||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | ||||||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") | |||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | ||||||||
| TEMP. COEFFICIENT | ±0.03% /℃(0~40℃) | ||||||||
| OPERATING ALTITUDE | 3000 meters | ||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||||
| SAFETY & EMC | SAFETY STANDARDS | IEC60601-1/IEC60601-1-11, BS EN/EN60601-1/ BS EN/EN60601-1-11, ANSI/AAMI ES60601-1 / ES60601-1-11(3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3, EAC TP TC 004 approved | |||||||
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP | ||||||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC | ||||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||||
| Conducted emission | BS EN/EN55011 (CISPR11), FCC PART 15 /CISPR22, CAN ICES-3(B)/NMB-3(B) | Class B | |||||||
| Radiated emission | BS EN/EN55011 (CISPR11), FCC PART 15 /CISPR22, CAN ICES-3(B)/NMB-3(B) | Class B | |||||||
| Harmonic current | BS EN/EN61000-3-2 | Class A | |||||||
| Voltage flicker | BS EN/EN61000-3-3 | ---- | |||||||
| EMC IMMUNITY | BS EN/EN60601-1-2, BS EN/EN61204-3 | ||||||||
| Parameter | Standard | Test Level | |||||||
| ESD | BS EN/EN61000-4-2 | Level 4, 15KV air ; Level 4, 8KV contact | |||||||
| RF field susceptibility | BS EN/EN61000-4-3 | Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz ) |
|||||||
| EFT bursts | BS EN/EN61000-4-4 | Level 3, 2KV | |||||||
| Surge susceptibility | BS EN/EN61000-4-5 | Level 3, 1KV/Line-Line | |||||||
| Conducted susceptibility | BS EN/EN61000-4-6 | Level 3, 10V | |||||||
| Magnetic field immunity | BS EN/EN61000-4-8 | Level 4, 30A/m | |||||||
| Voltage dip, interruption | BS EN/EN61000-4-11 | 100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods |
|||||||
| Others | MTBF | 3491.2K hrs min. Telcordia SR-332 (Bellcore) ; 694.3K hrs min. MIL-HDBK-217F (25℃) | |||||||
| DIMENSION | 125*50*31.5mm (L*W*H) | ||||||||
| PACKING | 0.32Kg; 40pcs/13.8Kg/1.04CUFT | ||||||||
Meanwell GSM60B Series Features
l 2 pole AC inlet lEC320-C8, ClassⅡ power unit
l Medical safety approved (2XMOPP) according to ANSI/AAMI ES60601-1/-1-11 and IEC/BS EN/EN60601-1/-1-1 1
l Extremely low leakage current
l No load power consumption<0.1W
l Energy efficiency level VI and meet CoC Version 5 (Except 5~9V for Level V)
l -30~+70℃ wide range working temperature
l Protections: Short circuit/Overload/Over voltage/Over temperature
l LED indicator for power on
l Lifetime>95K hours
l Various DC plug quick adapter accessory available
l 3 years warranty
Meanwell GSM60B Series Applications
l Oral irrigator
l Breath Machine
l Medical computer monitor
l Mobile clinical workstation
l Portable hemodialysis machine

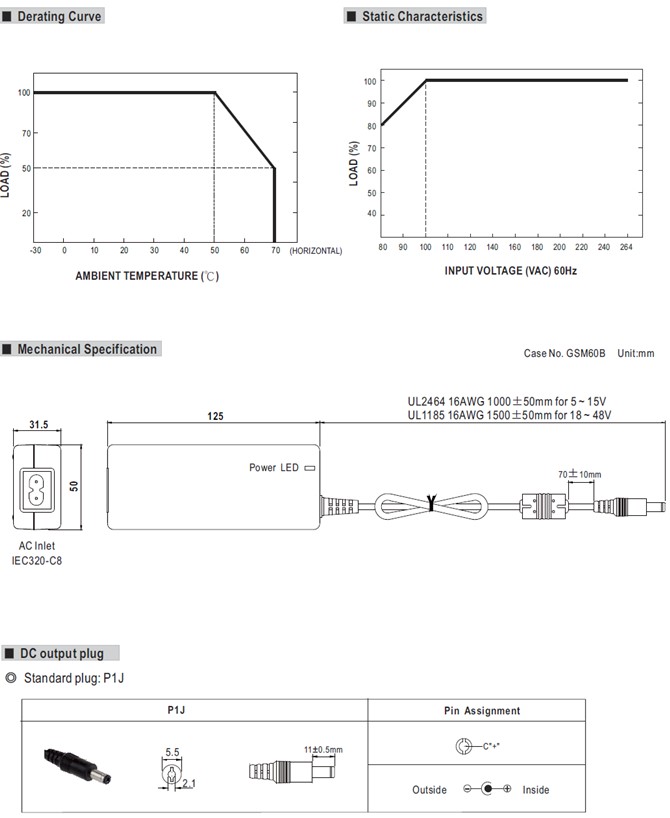

Meanwell GSM60B Series Mechanical Diagram
