GSM60A07-P1J
13.55
Details

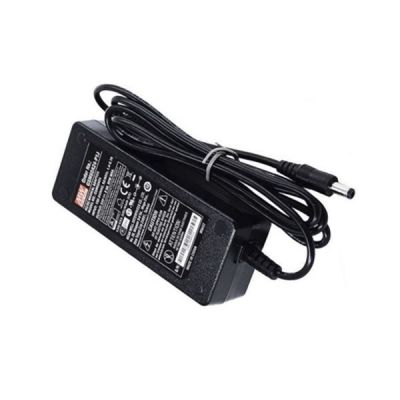

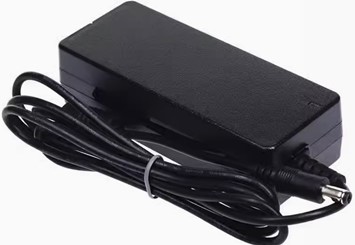

Meanwell GSM60A07 is a 60W AC-DC Green Medical Adaptor with 7.5V6A0.1-6A45W80mVp-p. The unit stands out with single-output, desktop style and high reliability. It is a class I power unit (with FG), supplied with a standard IEC320-C14 AC inlet. Meanwhile, GSM60A07 adopts the input range from 80VAC to 264VAC with output voltage 7.5VDC. So that it could satisfy the demands for various types of medical electrical devices. The circuitry design meets the international medical standards (2*MOPP) with an ultra-low leakage current (<100μA), and fits the medical devices in direct electrical contact with the patients. Furthermore, the work efficiency reaches high up to 91% and extremely low no-load power consumption below 0.15W. GSM60A07 is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, EU ErP, and meets Code of Conduct (CoC) Version 5. The supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. What’s more, the item utilizes the 94V-0 flame retardant plastic case, which is certified for the international medical safety regulations. Thanks to its long lifetime, high efficiency, and excellent performance, Meanwell GSM60A07 serves as an ideal power supply solution for various types of medical electronic devices.
Meanwell GSM60A07-P1J Encoding
| GSM | Series Name |
| 60 | Rated Wattage |
| A | IEC320-C14 AC inlet |
| 7 | Output voltage |
| Р1J- DC plug type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| Other Options available by customer requested |
Meanwell GSM60A07-P1J Specifications
| ORDER NO. | GSM60A07-P1J | |
| OUTPUT | SAFETY MODEL NO. | GSM60A07 |
| DC VOLTAGE | 7.5V | |
| RATED CURRENT | 6A | |
| CURRENT RANGE | 0.1-6A | |
| RATED POWER (max) | 45W | |
| RIPPLE & NOISE (max.) | 80mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±5.0% | |
| SETUP, RISE TIME | 1000ms, 30ms / 230VAC 1500ms, 30ms / 115VAC at full load | |
| HOLD UP TIME (Typ.) | 50ms / 230VAC 18ms / 115VAC at full load | |
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 86.00% | |
| AC CURRENT (Typ.) | 1.4A / 115VAC 1A / 230VAC | |
| INRUSH CURRENT (Typ.) | Cold start 30A/115VAC 60A / 230VAC | |
| LEAKAGE CURRENT(max.) | Earth leakage current < 100 A/264VAC , Touch current < 100 A/264VAC | |
| PROTECTION | OVERLOAD | 105 ~ 160% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 7.8-10.2V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% /℃(0~40℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| OPERATING ALTITUDE | 3000 meters | |
| SAFETY & EMC | SAFETY STANDARDS | IEC60601-1, TUV (./EN60601-1, PSE J62368(2020) (Only for 12V),ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3, EAC TP TC 004 approved |
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP | |
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:SHORT | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25℃!/ 70% RH | |
| EMC IMMUNITY | BS EN/EN60601-1-2, BS EN/EN61204-3 | |
| Others | MTBF | 3597.9K hrs min. Telcordia SR-332 (Bellcore) ; 721.1K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 125*50*31.5mm (L*W*H) | |
| PACKING | 0.32Kg; 40pcs/ 13.8Kg/1.04CUFT | |
Meanwell GSM60A07-P1J Features
l 3 years warranty
l 3 pole AC inlet lEC320-C14, Class I power unit
l Extremely low leakage current
l No load power consumption<0.15W
l Energy efficiency level VI and meet CoC Version 5 (Except 5~9V for Level V)
l -30~+70℃ wide range working temperature
l Protections: Short circuit/Overload/Over voltage/Over temperature
l LED indicator for power on
l Lifetime>105K hours
l Various DC plug quick adapter accessory available
l Medical safety approved (2xMOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
Meanwell GSM60A07-P1J Applications
l Oral irrigator
l Breath Machine
l Medical computer monitor
l Portable hemodialysis machine
l Mobile clinical workstation
Meanwell GSM60A07-P1J Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
