GSM40B24-P1J
13.73
Details

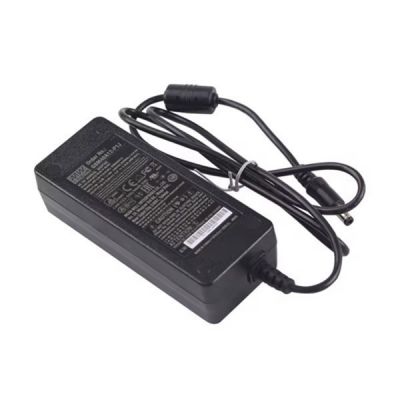

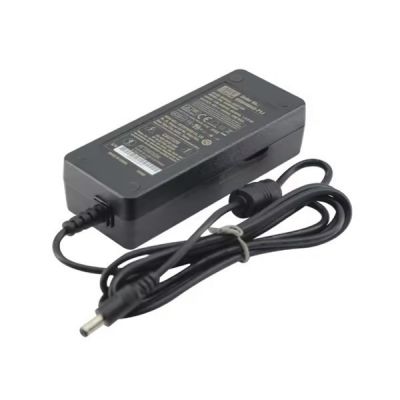

Meanwell GSM40B24 is a 40W AC-DC Green Medical Adaptor with 24V1.67A0-1.67A40W150mVp-p. The product outstands single- output, desktop style and high reliability. It is equipped with a 2-pin (no FG) standard IEC320-C8 power plug. GSM40B24 adopts the input range from 80VAC to 264VAC with output voltage 24VDC, so that it could satisfy the demands for various kinds of medical electrical devices. The circuitry design meets the international medical standards (2*MOPP), having an ultra-low-leakage current (<50uA), and thus fits the medical devices indirect electrical contact with the patients. At the same time, the work efficiency reaches high up to 91% and extremely low no-load power consumption below 0.1W. GSM40B24 is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, EU ErP, and meet Code of Conduct (CoC) Version 5. What’s more, the supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. The model also utilizes the 94V-0 flame retardant plastic case, offering the double insulation, which effectively prevents electrical shock. It is approved with the international medical safety certificates as well. Due to its longevity, high efficiency, and excellent performance, Meanwell GSM40B24 serves as an ideal power supply solution for various types of medical electronic device.
Meanwell GSM40B24-P1J Encoding
| GSM | Series Name |
| 40 | Rated Wattage |
| B | IEC320-C8 AC Inlet |
| 24 | Output voltage |
| P1J- DC plug type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1ѱХ5.5ѱх11mm, С+, tunіng fоrk tуре |
| Other Options available by customer requested |
Meanwell GSM40B24-P1J Specifications
| ORDER NO. | GSM40B24-P1J | |
| OUTPUT | SAFETY MODEL NO. | GSM40B24 |
| DC VOLTAGE | 24V | |
| RATED CURRENT | 1.67A | |
| CURRENT RANGE | 0-1.67A | |
| RATED POWER (max) | 40W | |
| RIPPLE & NOISE (max.) | 150mVp-p | |
| VOLTAGE TOLERANCE | ±2.5% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±2.5% | |
| SETUP, RISE TIME | 1000ms, 30ms / 230VAC 1500ms, 30ms / 115VAC at full load | |
| HOLD UP TIME (Typ.) | 50ms / 230VAC 24ms / 115VAC at full load | |
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 90.00% | |
| AC CURRENT (Typ.) | 1A / 115VAC 0.5A / 230VAC | |
| INRUSH CURRENT (Typ.) | Cold start 30A / 115VAC 60A / 230VAC | |
| LEAKAGE CURRENT(max.) | Touch current < 50 A/264VAC | |
| PROTECTION | OVERLOAD | 105 ~ 160% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 25.2-32.4V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% /℃(0 ~ 50℃) | |
| OPERATING ALTITUDE | 3000 meters | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | IEC60601-1/IEC60601-1-11, BS EN/EN60601-1/ BS EN/EN60601-1-11, ANSI/AAMI ES60601-1 / ES60601-1-11(3.1 version), PSE J60950-1(48V only),KC K60950-1(48V only), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3, EAC TP TC 004 approved |
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP | |
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN60601-1-2, BS EN/EN61204-3 | |
| Others | MTBF | 3505.7K hrs min. Telcordia SR-332 (Bellcore) ; 719.4K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 125*50*31.5mm (L*W*H) | |
| PACKING | 0.29Kg; 40pcs/12.6Kg/1.04CUFT | |
Meanwell GSM40B24-P1J Feature
l 3 years warranty
l Lifetime > 90K hours
l LED indicator for power on
l Extremely low leakage current
l No load power consumption<0.1 W
l 2 pole AC inlet lEC320-C8, Class II power unit
l -30~+70℃ wide range working temperature
l Protections: Short circuit/Overload/Over voltage
l Various DC plug quick adapter accessory available
l Comply with Korea K-MEPS (only GSM40B48-P1J)
l Energy efficiency level VI and meet CoC Version 5 (Except 5~9V for Level V)
l Medical safety approved (2xMOPP) according to ANSI/AAMI ES60601-1/-1-11 and IEC/BS EN/EN60601-1/-1-1 1
Meanwell GSM40B24-P1J Applications
l Mobile clinical workstation
l Oral irrigator
l Portable hemodialysis machine
l Breath Machine
l Medical computer monitor
Meanwell GSM40B24-P1J Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
