GSM40B07-P1J
13.07
Details

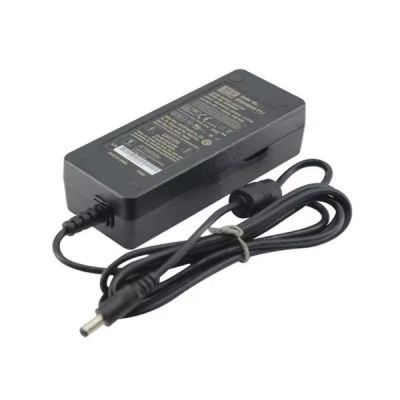

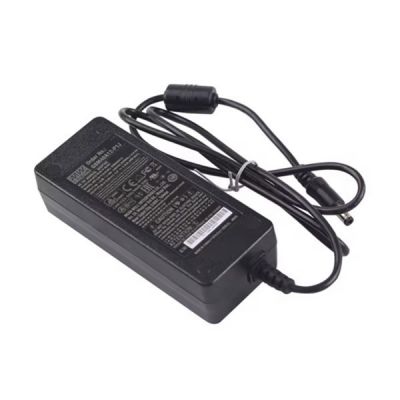

Meanwell GSM40B07 is a 40W AC-DC Green Medical Adaptor with 7.5V5.34A0-5.34A40W80mVp-p. The unit outstands single- output, desktop style and high reliability. It is equipped with a 2-pin (no FG) standard IEC320-C8 power plug. Meanwhile, GSM40B07 adopts the input range from 80VAC to 264VAC with output voltage 7.5VDC, so that it could satisfy the demands for various kinds of medical electrical devices. The circuitry design meets the international medical standards (2*MOPP) with an ultra-low-leakage current (<50uA), fitting the medical devices indirect electrical contact with the patients. Moreover, the work efficiency reaches high up to 91% and extremely low no-load power consumption below 0.1W. GSM40B07 is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, EU ErP, and meet Code of Conduct (CoC) Version 5. The supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. The item also utilizes the 94V-0 flame retardant plastic case, offering the double insulation, which effectively prevents electrical shock. It is approved with the international medical safety certificates as well. Thanks to its longevity, high efficiency, and excellent performance, Meanwell GSM40B07 serves as an ideal power supply solution for various types of medical electronic device.
Meanwell GSM40B07-P1J Encoding
| GSM | Series Name |
| 40 | Rated Wattage |

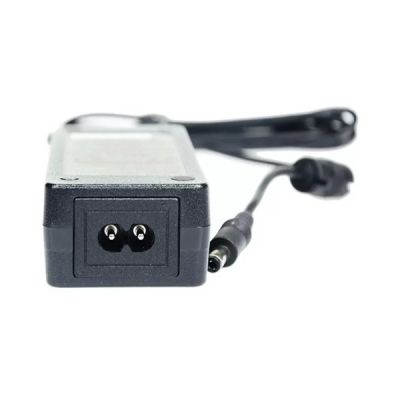

| B | IEC320-C8 AC Inlet |
| 7 | Output voltage |
| P1J- DC plug type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1ѱХ5.5ѱх11mm, С+, tunіng fоrk tуре |
| Other Options available by customer requested |
Meanwell GSM40B07-P1J Specifications
| ORDER NO. | GSM40B07-P1J | |
| OUTPUT | SAFETY MODEL NO. | GSM40B07 |
| DC VOLTAGE | 7.5V | |
| RATED CURRENT | 5.34A | |
| CURRENT RANGE | 0-5.34A | |
| RATED POWER (max) | 40W | |
| RIPPLE & NOISE (max.) | 80mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±5.0% | |
| SETUP, RISE TIME | 1000ms, 30ms / 230VAC 1500ms, 30ms / 115VAC at full load | |
| HOLD UP TIME (Typ.) | 50ms / 230VAC 24ms / 115VAC at full load | |
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 85.50% | |
| AC CURRENT (Typ.) | 1A / 115VAC 0.5A / 230VAC | |
| INRUSH CURRENT (Typ.) | Cold start 30A / 115VAC 60A / 230VAC | |
| LEAKAGE CURRENT(max.) | Touch current < 50 A/264VAC | |
| PROTECTION | OVERLOAD | 105 ~ 160% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 7.8-10.2V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% /℃(0 ~ 50℃) | |
| OPERATING ALTITUDE | 3000 meters | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | IEC60601-1/IEC60601-1-11, BS EN/EN60601-1/ BS EN/EN60601-1-11, ANSI/AAMI ES60601-1 / ES60601-1-11(3.1 version), PSE J60950-1(48V only),KC K60950-1(48V only), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3, EAC TP TC 004 approved |
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP | |
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN60601-1-2, BS EN/EN61204-3 | |
| Others | MTBF | 3505.7K hrs min. Telcordia SR-332 (Bellcore) ; 719.4K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 125*50*31.5mm (L*W*H) | |
| PACKING | 0.29Kg; 40pcs/12.6Kg/1.04CUFT | |
Meanwell GSM40B07-P1J Feature
l Extremely low leakage current
l No load power consumption<0.1 W
l Comply with Korea K-MEPS (only GSM40B48-P1J)
l -30~+70℃ wide range working temperature
l Protections: Short circuit/Overload/Over voltage
l LED indicator for power on
l Lifetime > 90 K hours
l Various DC plug quick adapter accessory available
l 3 years warranty
l 2 pole AC inlet lEC320-C8, Class II power unit
l Energy efficiency level VI and meet CoC Version 5 (Except 5~9V for Level V)
l Medical safety approved (2xMOPP) according to ANSI/AAMI ES60601-1/-1-11 and IEC/BS EN/EN60601-1/-1-1 1
Meanwell GSM40B07-P1J Applications
l Mobile clinical workstation
l Oral irrigator
l Portable hemodialysis machine
l Breath Machine
l Medical computer monitor
Meanwell GSM40B07-P1J Mechanical Diagram
