GSM40A12-P1J
13.83
Details

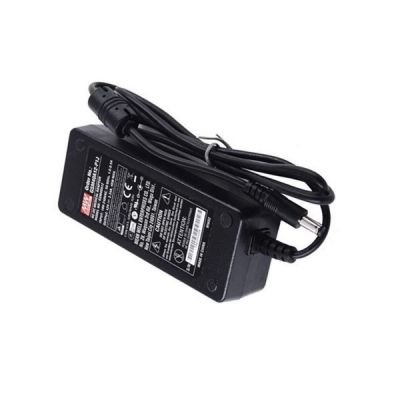

Meanwell GSM40A12 is a 40W single-output green medical adaptor with 12V3.34A0.1-3.34A40W100mVp-p. It is a class I power unit (with FG), supplied with a standard lEC320-C14 AC inlet. The product adopts the input range from 80VAC to 264VAC with output voltage 12VDC. So that it is able to satisfy the demands for various types of medical electrical devices. The circuitry design meets the international medical standards (2*MOPP), having an ultra-low leakage current (<90uA), and fits the medical devices in direct electrical contact with the patients. Furthermore, the work efficiency reaches high up to 91% and extremely low no-load power consumption below 0.15W. GSM40A12 is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, EU ErP, and meets Code of Conduct (CoC) Version 5. Additionally, the supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. The unit utilizes the 94V-0 flame retardant plastic case as well, which is certified for the international medical safety regulations. In view of its high reliability, high efficiency, and excellent performance, Meanwell GSM40A12 serves as an ideal power supply solution for various types of medical electronic devices.
Meanwell GSM40A12-P1J Encoding
| GSM | Series Name |
| 40 | Rated Wattage |
| A | European 2 pin AC Plug |
| 12 | IEC320-C14 AC inlet |

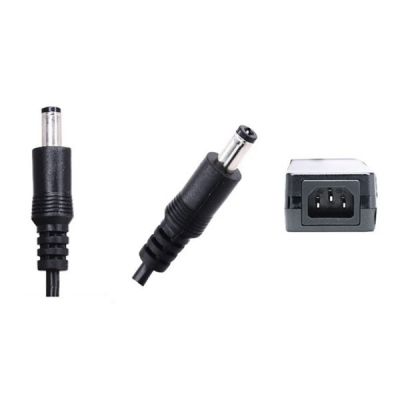

| Р1J- DC plug type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| Other Options available by customer requested |
Meanwell GSM40A12-P1J Specifications
| ORDER NO. | GSM40A12-P1J | |
| OUTPUT | SAFETY MODEL NO. | GSM40A12 |
| DC VOLTAGE | 12V | |
| RATED CURRENT | 3.34A | |
| CURRENT RANGE | 0.1-3.34A | |
| RATED POWER (max) | 40W | |
| RIPPLE & NOISE (max.) | 100mVp-p | |
| VOLTAGE TOLERANCE | ±3.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±3.0% | |
| SETUP, RISE TIME | 1000ms, 30ms / 230VAC 1500ms, 30ms / 115VAC at full load | |
| HOLD UP TIME (Typ.) | 50ms / 230VAC 24ms / 115VAC at full load | |
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 88.00% | |
| AC CURRENT (Typ.) | 1A / 115VAC 0.5A / 230VAC | |
| INRUSH CURRENT (Typ.) | Cold start 30A/115VAC 60A / 230VAC | |
| LEAKAGE CURRENT(max.) | Earth leakage current < 90 A/264VAC , Touch current < 90 A/264VAC | |
| PROTECTION | OVERLOAD | 105 ~ 160% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 12.6-16.2V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% /℃(0~40℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | IEC60601-1, TUV BS EN/EN60601-1, ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3, EAC TP TC 004 approved |
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP | |
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:SHORT | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25℃!/ 70% RH | |
| EMC IMMUNITY | BS EN/EN60601-1-2, BS EN/EN61204-3 | |
| Others | MTBF | 3613.2K hrs min. Telcordia SR-332 (Bellcore) ; 740.7K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 125*50*31.5mm (L*W*H) | |
| PACKING | 0.29Kg; 40pcs/ 12.6 Kg/1.04CUFT | |
Meanwell GSM40A12-P1J Features
l 3 years warranty
l Lifetime>90K hours
l 3 pole AC inlet lEC320-C14, Class I power unit
l Extremely low leakage current
l No load power consumption<0. 15W
l -30~+70℃ wide range working temperature
l Protections: Short circuit/Overload/Over voltage
l LED indicator for power on
l Various DC plug quick adapter accessory available
l Energy efficiency level VI and meet CoC Version 5 (Except 5~9V for Level V)
l Medical safety approved (2xMOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
Meanwell GSM40A12-P1J Applications
l Mobile clinical workstation
l Oral irrigator
l Portable hemodialysis machine
l Breath Machine
l Medical computer monitor
Meanwell GSM40A12-P1J Mechanical Diagram
