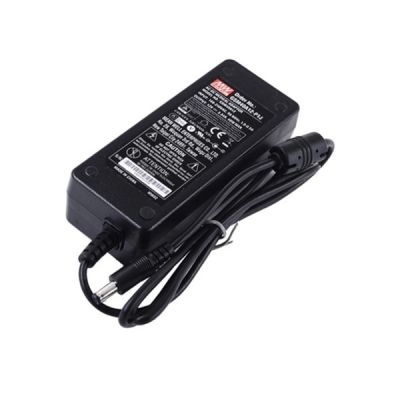

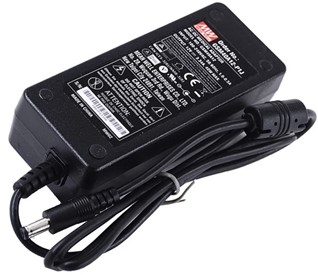

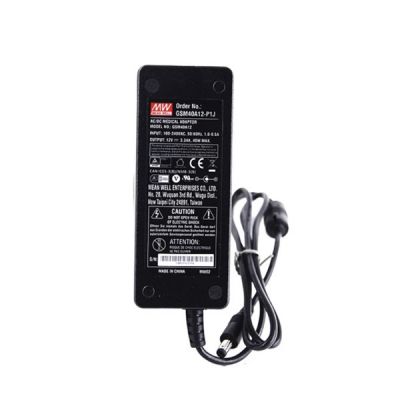

Meanwell GSM40A Series is a 40W single-output green medical adaptor. The product is a class I power unit (with FG), equipped with a standard lEC320-C14 AC inlet, and adopts the input range from 80VAC to 264VAC. At the same time, GSM40A supplies different models with output voltages between 5VDC and 48VDC. So that it could satisfy the demands for various types of medical electrical devices. The circuitry design meets the international medical standards (2*MOPP), having an ultra-low leakage current (<90uA), fitting the medical devices in direct electrical contact with the patients. Additionally, the work efficiency reaches high up to 91% and extremely low no-load power consumption below 0.15W. GSM40A is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, EU ErP, and meet Code of Conduct (CoC) Version 5. The supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. Apart from them, the entire series utilizes the 94V-0 flame retardant plastic case, and certified for the international medical safety regulations. Considering its high reliability, high efficiency, and excellent performance, Meanwell GSM40A Series serves as an ideal power supply solution for various types of medical electronic devices.
Meanwell GSM40A Series Encoding
| GSM | Series Name |
| 40 | Rated Wattage |
| A | European 2 pin AC Plug |
| 5 | IEC320-C14 AC inlet |
| Р1J- DC plug type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| Other Options available by customer requested |
Meanwell GSM40A Series Model Specifications
| ORDER NO. | GSM40A05-P1J | GSM40A07-P1J | GSM40A09-P1J | GSM40A12-P1J | GSM40A15-P1J | GSM40A18-P1J | GSM40A24-P1J | GSM40A48-P1J | |
| OUTPUT | SAFETY MODEL NO. | GSM40A05 | GSM40A07 | GSM40A09 | GSM40A12 | GSM40A15 | GSM40A18 | GSM40A24 | GSM40A48 |
| DC VOLTAGE | 5V | 7.5V | 9V | 12V | 15V | 18V | 24V | 48V | |
| RATED CURRENT | 5A | 5.34A | 4.45A | 3.34A | 2.67A | 2.22A | 1.67A | 0.84A | |
| CURRENT RANGE | 0.1-5A | 0.1-5.34A | 0.1-4.45A | 0.1-3.34A | 0.1-2.67A | 0.1-2.22A | 0.1-1.67A | 0.1-0.84A | |
| RATED POWER (max) | 25W | 40W | 40W | 40W | 40W | 40W | 40W | 40W | |
| RIPPLE & NOISE (max.) | 80mVp-p | 80mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 120mVp-p | 150mVp-p | 150mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | ±5.0% | ±5.0% | ±3.0% | ±3.0% | ±3.0% | ±2.5% | ±2.5% | |
| LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LOAD REGULATION | ±5.0% | ±5.0% | ±5.0% | ±3.0% | ±3.0% | ±3.0% | ±2.5% | ±2.5% | |
| SETUP, RISE TIME | 1000ms, 30ms / 230VAC 1500ms, 30ms / 115VAC at full load | ||||||||
| HOLD UP TIME (Typ.) | 50ms / 230VAC 24ms / 115VAC at full load | ||||||||
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC | |||||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||||
| EFFICIENCY (Typ.) | 81.00% | 85.50% | 86.00% | 88.00% | 88.50% | 89.50% | 90.00% | 91.00% | |
| AC CURRENT (Typ.) | 1A / 115VAC 0.5A / 230VAC | ||||||||
| INRUSH CURRENT (Typ.) | Cold start 30A/115VAC 60A / 230VAC | ||||||||
| LEAKAGE CURRENT(max.) | Earth leakage current < 90 A/264VAC , Touch current < 90 A/264VAC | ||||||||
| PROTECTION | OVERLOAD | 105 ~ 160% rated output power | |||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||||
| OVER VOLTAGE | 5.2-7.0V | 7.8-10.2V | 9.4-12.2V | 12.6-16.2V | 15.7-20.3V | 18.9-24.3V | 25.2-32.4V | 50.4-64.8V | |
| Protection type : Shut down o/p voltage, re-power on to recover | |||||||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") | |||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | ||||||||
| TEMP. COEFFICIENT | ±0.03% /℃(0~40℃) | ||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||||
| SAFETY & EMC | SAFETY STANDARDS | IEC60601-1, TUV BS EN/EN60601-1, ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3, EAC TP TC 004 approved | |||||||
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP | ||||||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:SHORT | ||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25℃!/ 70% RH | ||||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||||
| Conducted emission | BS EN/EN55011 (CISPR11), FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) | Class B | |||||||
| Radiated emission | BS EN/EN55011 (CISPR11), FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) | Class B | |||||||
| Harmonic current | BS EN/EN61000-3-2 | Class A | |||||||
| Voltage flicker | BS EN/EN61000-3-3 | ---- | |||||||
| EMC IMMUNITY | BS EN/EN60601-1-2, BS EN/EN61204-3 | ||||||||
| Parameter | Standard | Test Level | |||||||
| ESD | BS EN/EN61000-4-2 | Level 4, 15KV air ; Level 4, 8KV contact | |||||||
| RF field susceptibility | BS EN/EN61000-4-3 | Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz ) |
|||||||
| EFT bursts | BS EN/EN61000-4-4 | Level 3, 2KV | |||||||
| Surge susceptibility | BS EN/EN61000-4-5 | Level 3, 1KV/Line-Line , 2KV/Line-FG | |||||||
| Conducted susceptibility | BS EN/EN61000-4-6 | Level 3, 10V | |||||||
| Magnetic field immunity | BS EN/EN61000-4-8 | Level 4, 30A/m | |||||||
| Voltage dip, interruption | BS EN/EN61000-4-11 | 100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods |
|||||||
| Others | MTBF | 3613.2K hrs min. Telcordia SR-332 (Bellcore) ; 740.7K hrs min. MIL-HDBK-217F (25℃) | |||||||
| DIMENSION | 125*50*31.5mm (L*W*H) | ||||||||
| PACKING | 0.29Kg; 40pcs/ 12.6 Kg/1.04CUFT | ||||||||
Meanwell GSM40A Series Features

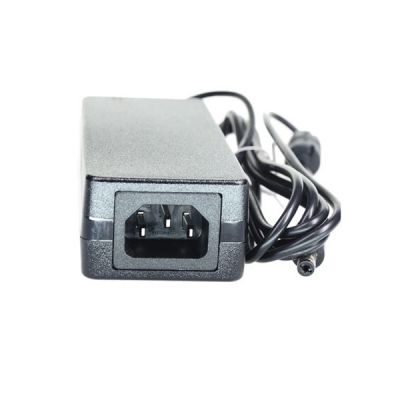

l 3 pole AC inlet lEC320-C14, Class I power unit
l Medical safety approved (2xMOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
l Extremely low leakage current
l No load power consumption<0. 15W
l Energy efficiency level VI and meet CoC Version 5 (Except 5~9V for Level V)
l -30~+70℃ wide range working temperature
l Protections: Short circuit/Overload/Over voltage
l LED indicator for power on
l Lifetime>90K hours
l Various DC plug quick adapter accessory available
l 3 years warranty
Meanwell GSM40A Series Applications
l Mobile clinical workstation
l Oral irrigator
l Portable hemodialysis machine
l Breath Machine
l Medical computer monitor

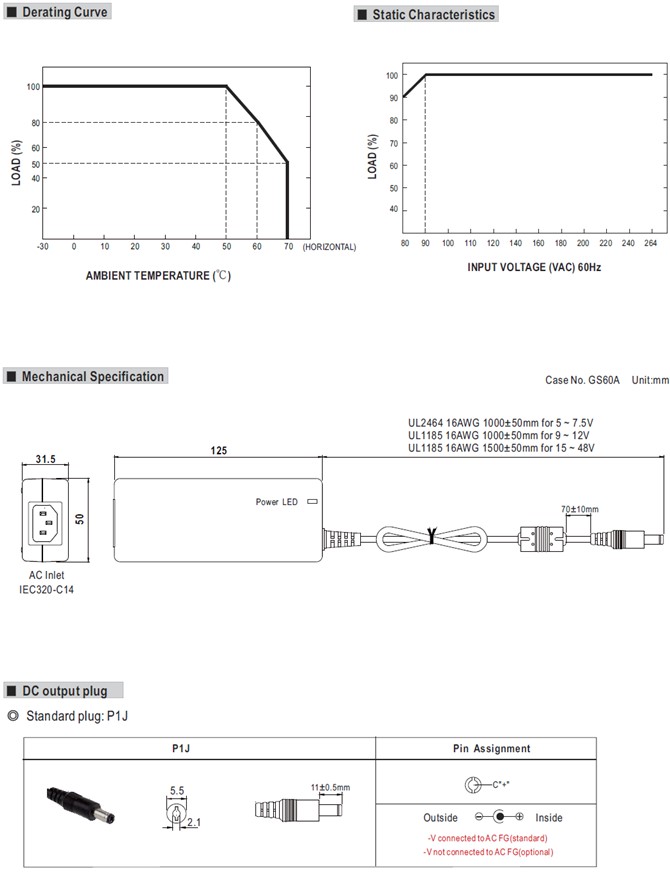

Meanwell GSM40A Series Mechanical Diagram
