GSM36U18-P1J
11.85
Details

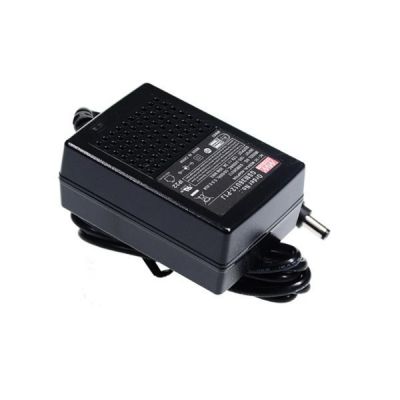

Meanwell GSM36U18 is 36W AC-DC Green Medical Adaptor with 18V2A0-2A36W150mVp-p. The product outstands single-output, wall-mounted style and high reliability. It is equipped with a 2-pin (no FG) standard USA AC power plug. GSM36U18 adopts the input range from 80VAC to 264VAC with output voltages 18VDC. So that it could satisfy the demands for various kinds of miniature medical devices. The circuitry design meets the international medical standards (2xMOPP), having ultra-low leakage current (<50μA), fitting the medical devices in direct electrical contact with the patients. As the efficiency reaches high up to 88% and extreme low no-load power consumption below 0.1W, GSM36U18 Is compliant with USA EISA 2007/DoE and Canada NRCan. The supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. Apart from them, GSM36U18 utilizes the 94V-0 flame retardant plastic case, providing the double insulation, which effectively prevents electrical shock. The item is also approved with the international medical safety certificates as. Because of its high safety, high quality and high efficiency, Meanwell GSM36U18 serves as an ideal power supply solution for various types of medical electronic devices.
Meanwell GSM36U18-P1J Encoding
| GSM | Series Name |
| 36 | Rated Wattage |
| U | US 2 pin AC Plug |
| 18 | Output Voltage |
| P1J DC Plug Type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| Other Options available by customer requested |
Meanwell GSM36U18-P1J Specifications
| ORDER NO. | GSM36U18-P1J | |
| OUTPUT | SAFETY MODEL NO. | GSM36U18 |
| DC VOLTAGE | 18V | |
| RATED CURRENT | 2A | |
| CURRENT RANGE | 0-2A | |
| RATED POWER | 36W | |
| RIPPLE & NOISE (max.) | 150mVp-p | |
| VOLTAGE TOLERANCE | ±3.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±3.0% | |
| SETUP, RISE, HOLD UP TIME | 500ms, 30ms / 230VAC 1000ms, 30ms / 115VAC at full load | |
| HOLD UP TIME (Typ.) | 16ms / 230VAC 10ms / 115VAC at full load | |
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC 113 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 87.00% | |
| AC CURRENT | 0.9A / 115VAC 0.45A / 230VAC | |
| INRUSH CURRENT (max.) | 55A / 230VAC 30A / 115VAC | |
| LEAKAGE CURRENT(max.) | Touch current < 50μA/264VAC | |
| PROTECTION | OVERLOAD | 105 ~ 170% rated output powe |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 18.9-25.2V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP. | -25 ~ +60℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% /℃(0~40℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | ANSI/AAMI ES60601-1, ES60601-1-11, EAC TP TC 004 approved |
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP | |
| WITHSTAND VOLTAGE | I/P-O/P:4KVA | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| Others | MTBF | 3777.8K hrs min. Telcordia SR-332 (Bellcore) ; 651.4K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 79*54*33mm (L*W*H) | |
| PACKING | 215g ; 60pcs / 13.9Kg / CARTON | |
Meanwell GSM36U18-P1J Features
l 2 pole USA plug, Class II power unit
l Extremely low leakage current
l No load power consumption<0.1W
l Energy efficiency Level VI (except 5~9V for Level V)
l -25~+60℃ wide range working temperature
l Protections: Short circuit/Overload/Over voltage
l LED indicator for power on
l Various DC plug quick adapter accessory available
l 3 years warranty
l Medical safety approved (2 X MOPP) according to ANSI/AAMI ES60601-1/-1-1 1
Meanwell GSM36U18-P1J Applications
l Inhaler
l Nebulizer
l Blood qlucose meter
l Blood pressure meter
l Portable medical device
Meanwell GSM36U18-P1J Mechanical Diagram
