GSM36E12-P1J
11.83
Details

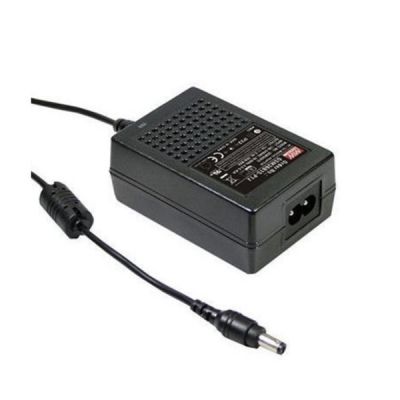

Meanwell GSM36E12 is 36W AC-DC Reliable Green Medical Adaptor with 12V3A0-3A36W120mVp-p. The item highlights single-output, wall-mounted and high reliability. It is equipped with a 2-pin (no FG) standard European power plug. GSM36E12 adopts the input range from 80VAC to 264VAC with output voltage 12VDC. So that it can satisfy the demands for various kinds of miniature medical devices. The circuitry design meets the international medical standards (2xMOPP), having an ultra-low leakage current (<50 μA), fitting the medical devices in direct electrical contact with the patients. At the same time, the work efficiency reaches high up to 88% and extreme low no-load power consumption below 0.1W. GSM36E12 is compliant with EU ErP, and meets Code of Conduct (CoC) Version 5. The supreme feature also allows the adaptor to save energy when it is either under operating mode or standby mode. It utilizes the 94V-0 flame retardant plastic case, providing the double insulation, which effectively prevents electrical shock. The product is approved with the international medical safety certificates as well. As a result of its high safety, high quality and high efficiency, Meanwell GSM36E12 serves as an ideal power supply solution for various types of medical electronic devices.
Meanwell GSM36E12-P1J Encoding
| GSM | Series Name |
| 36 | Rated Wattage |
| E | European 2 pin AC Plug |
| 12 | Output Voltage |
| Р1J- DC plug type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| Other Options available by customer requested |
Meanwell GSM36E12-P1J Specifications
| ORDER NO. | GSM36E12-P1J | |
| OUTPUT | SAFETY MODEL NO. | GSM36E12 |
| DC VOLTAGE | 12V | |
| RATED CURRENT | 3A | |
| CURRENT RANGE | 0-3A | |
| RATED POWER | 36W | |
| RIPPLE & NOISE (max.) | 120mVp-p | |
| VOLTAGE TOLERANCE | ±3.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±3.0% | |
| SETUP, RISE, HOLD UP TIME | 500ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load | |
| HOLD UP TIME (Typ.) | 16ms/230VAC 10ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC 113 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 86.00% | |
| AC CURRENT | 0.9A / 115VAC 0.45A / 230VAC | |
| INRUSH CURRENT (max.) | 55A / 230VAC 30A / 115VAC | |
| LEAKAGE CURRENT(max.) | Touch current < 50μA/264VAC | |
| PROTECTION | OVERLOAD | 105 ~ 170% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 12.6-17.2V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP. | -25 ~ +60℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% /℃(0~40℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | TUV EN60601-1 / EN60601-1-11, EAC TP TC 004 approved |
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP | |
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | EN60601-1-2, EN61204-3 | |
| Others | MTBF | 3777.8K hrs min. Telcordia SR-332 (Bellcore) ; 651.4K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 79*54*33mm (L*W*H) | |
| PACKING | 230g ; 60pcs / 14.8Kg / CARTON | |
Meanwell GSM36E12-P1J Features
l 3 years warranty
l LED indicator for power on
l 2 pole EURO plug, Class II power unit
l Extremely low leakage current
l No load power consumption<0.1W
l -25~+60℃ wide range working temperature
l Protections: Short circuit/Overload/Over voltage
l Various DC plug quick adapter accessory available
l Medical safety approved (2xMOPP) according to EN60601-1/-1-11
l Energy efficiency Level VI and meet CoC version 5 (except 5~9V for Level V )
Meanwell GSM36E12-P1J Applications
l Blood glucose meter
l Blood pressure meter
l Nebulizer
l Inhaler
l Portable medical device
Meanwell GSM36E12-P1J Mechanical Diagram
