GSM25U15-P1J
12.24
Details

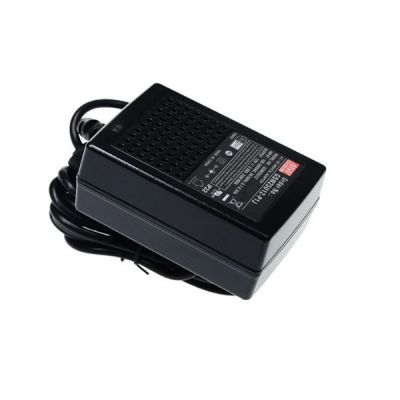

Meanwell GSM25U15 is 25W AC-DC Reliable Green Medical Adaptor with 15V1.66A0-1.66A25W120mVp-p. It stands out with single-output, wall-mounted style and high reliability. The unit is equipped with a 2-pin (no FG) standard USA AC power plug. Meanwhile, GSM25U15 adopts input range from 80VAC to 264VAC with output voltage 15VDC. Therefore, it is able to satisfy the demands for various kinds of miniature medical devices. The circuitry design meets the international medical standards (2 x MOPP) with ultra-low leakage current (<50uA), fitting the medical devices in direct electrical contact with the patients. Since the efficiency reaches high up to 88% and extreme low no-load power consumption below 0.1W, GSM25U15 is compliant with USA EISA 2007/DoE and Canada NRCan. Apart from them, the supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. The model utilizes the 94V-0 flame retardant plastic case, offering the double insulation which effectively prevents electrical shock. GSM25U15 is approved with the international medical safety certificates as well. As a result of its high safety, high quality and high efficiency, Meanwell GSM25U15 serves as an ideal power supply solution for various types of medical electronic devices.
Meanwell GSM25U15-P1J Encoding
| GSM | Series Name |
| 25 | Rated Wattage |
| U | US 2 pin AC Plug |
| 15 | Output Voltage |
| P1J DC Plug Type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| Other Options available by customer requested |
Meanwell GSM25U15-P1J Specifications
| ORDER NO. | GSM25U15-P1J | |
| OUTPUT | SAFETY MODEL NO. | GSM25U15 |
| DC VOLTAGE | 15V | |
| RATED CURRENT | 1.66A | |
| CURRENT RANGE | 0-1.66A | |
| RATED POWER | 25W | |
| RIPPLE & NOISE (max.) | 120mVp-p | |
| VOLTAGE TOLERANCE | ±3.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±3.0% | |
| SETUP, RISE, HOLD UP TIME | 500ms, 30ms / 230VAC 1000ms, 30ms / 115VAC at full load | |
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC 113 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 87.00% | |
| AC CURRENT | 0.7A / 115VAC 0.35A / 230VAC | |
| INRUSH CURRENT (max.) | 55A / 230VAC 30A / 115VAC | |
| LEAKAGE CURRENT(max.) | Touch current < 50μA/264VAC | |
| PROTECTION | OVERLOAD | 105 ~ 170% rated output powe |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 15.75-20.25V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP. | -25 ~ +60℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% /℃(0~40℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | ANSI/AAMI ES60601-1, ES60601-1-11, EAC TP TC 004 approved |
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP | |
| WITHSTAND VOLTAGE | I/P-O/P:4KVA | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| Others | MTBF | 3887.1K hrs min. Telcordia SR-332 (Bellcore) ; 791.9K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 79*54*33mm (L*W*H) | |
| PACKING | 215g ; 60pcs / 13.9Kg / CARTON | |
Meanwell GSM25U15-P1J Features
l 3 years warranty
l LED indicator for power on
l Extremely low leakage current
l No load power consumption<0.1W
l 2 pole USA plug, Class II power unit
l -25~+60℃ wide range working temperature
l Protections: Short circuit/Overload/Over voltage
l Various DC plug quick adapter accessory available
l Energy efficiency Level VI (except 5~9V for Level V)
l Medical safety approved (2XMOPP) according to ANSI/AAMI ES60601-1/-1-1 1
Meanwell GSM25U15-P1J Applications
l Blood qlucose meter
l Blood pressure meter
l Nebulizer
l Inhaler
l Portable medical device
Meanwell GSM25U15-P1J Mechanical Diagram
