GSM25U
12.07
Details
Meanwell GSM25U Series is 25W AC-DC Reliable Green Medical Adaptor. The product features single-output, wall-mounted style and high reliability. It is equipped with a 2-pin (no FG) standard USA AC power plug, adopting input range from 80VAC to 264VAC. At the same time, GSM25U supplies different output voltages between 5VDC and 48VDC, so that it can satisfy the demands for various kinds of miniature medical devices. The circuitry design meets the international medical standards (2 x MOPP), having ultra-low leakage current (<50uA), fitting the medical devices in direct electrical contact with the patients. Since the efficiency reaches high up to 88% and extreme low no-load power consumption below 0.1W, GSM25U is compliant with USA EISA 2007/DoE and Canada NRCan. The supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. What’s more, the entire series utilizes the 94V-0 flame retardant plastic case, providing the double insulation which effectively prevents electrical shock. GSM25U is also approved with the international medical safety certificates. Considering its high safety, high quality and high efficiency, Meanwell GSM25U Series serves as an ideal power supply solution for various types of medical electronic devices.
Meanwell GSM25U Series Encoding
| GSM | Series Name |
| 25 | Rated Wattage |
| U | US 2 pin AC Plug |
| 5 | Output Voltage |
| P1J DC Plug Type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| Other Options available by customer requested |
Meanwell GSM25U Series Model Specifications
| ORDER NO. | GSM25U05-P1J | GSM25U07-P1J | GSM25U09-P1J | GSM25U12-P1J | GSM25U15-P1J | GSM25U18-P1J | GSM25U24-P1J | GSM25U48-P1J | |
| OUTPUT | SAFETY MODEL NO. | GSM25U05 | GSM25U07 | GSM25U09 | GSM25U12 | GSM25U15 | GSM25U18 | GSM25U24 | GSM25U48 |
| DC VOLTAGE | 5V | 7.5V | 9V | 12V | 15V | 18V | 24V | 48V | |
| RATED CURRENT | 4A | 2.93A | 2.77A | 2.08A | 1.66A | 1.38A | 1.04A | 0.52A | |
| CURRENT RANGE | 0-4A | 0-2.93A | 0-2.77A | 0-2.08A | 0-1.66A | 0-1.38A | 0-1.04A | 0-0.52A | |
| RATED POWER | 20W | 22W | 25W | 25W | 25W | 25W | 25W | 25W | |
| RIPPLE & NOISE (max.) | 60mVp-p | 80mVp-p | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 180mVp-p | 240mVp-p | |
| VOLTAGE TOLERANCE | ±6.0% | ±5.0% | ±5.0% | ±3.0% | ±3.0% | ±3.0% | ±2.0% | ±2.0% | |
| LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LOAD REGULATION | ±6.0% | ±5.0% | ±5.0% | ±3.0% | ±3.0% | ±3.0% | ±2.0% | ±2.0% | |
| SETUP, RISE, HOLD UP TIME | 500ms, 30ms / 230VAC 1000ms, 30ms / 115VAC at full load | ||||||||
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC 113 ~ 370VDC | |||||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||||
| EFFICIENCY (Typ.) | 80.00% | 83.00% | 84.00% | 86.00% | 87.00% | 87.00% | 87.00% | 88.00% | |
| AC CURRENT | 0.7A / 115VAC 0.35A / 230VAC | ||||||||
| INRUSH CURRENT (max.) | 55A / 230VAC 30A / 115VAC | ||||||||
| LEAKAGE CURRENT(max.) | Touch current < 50μA/264VAC | ||||||||
| PROTECTION | OVERLOAD | 105 ~ 170% rated output powe | |||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||||
| OVER VOLTAGE | 5.25-7.5V | 7.88-10.5V | 9.45-13V | 12.6-17.2V | 15.75-20.25V | 18.9-25.2V | 25.2-32.4V | 50.4-64.8V | |
| Protection type : Shut down o/p voltage, re-power on to recover | |||||||||
| ENVIRONMENT | WORKING TEMP. | -25 ~ +60℃(Refer to "Derating Curve") | |||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | ||||||||
| TEMP. COEFFICIENT | ±0.03% /℃(0~40℃) | ||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||||
| SAFETY & EMC | SAFETY STANDARDS | ANSI/AAMI ES60601-1, ES60601-1-11, EAC TP TC 004 approved | |||||||
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP | ||||||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVA | ||||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||||
| Conducted emission | FCC PART 15 / CISPR22 | Class B | |||||||
| Radiated emission | FCC PART 15 / CISPR22 | Class B | |||||||
| Others | MTBF | 3887.1K hrs min. Telcordia SR-332 (Bellcore) ; 791.9K hrs min. MIL-HDBK-217F (25℃) | |||||||
| DIMENSION | 79*54*33mm (L*W*H) | ||||||||
| PACKING | 215g ; 60pcs / 13.9Kg / CARTON | ||||||||
Meanwell GSM25U Series Features
l 2 pole USA plug, Class II power unit
l Medical safety approved (2XMOPP) according to ANSI/AAMI ES60601-1/-1-1 1
l Extremely low leakage current
l No load power consumption<0.1W
l Energy efficiency Level VI (except 5~9V for Level V)
l -25~+60℃ wide range working temperature
l Protections: Short circuit/Overload/Over voltage
l LED indicator for power on
l Various DC plug quick adapter accessory available
l 3 years warranty
Meanwell GSM25U Series Applications
l Blood qlucose meter
l Blood pressure meter
l Nebulizer
l Inhaler
l Portable medical device

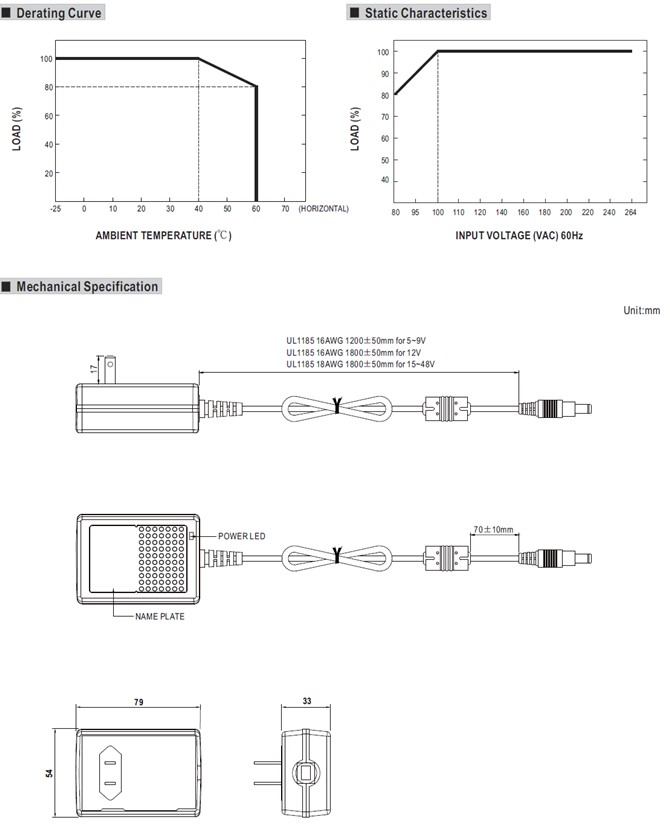

Meanwell GSM25U Series Mechanical Diagram
