GSM18U18-P1J
12.26
Details

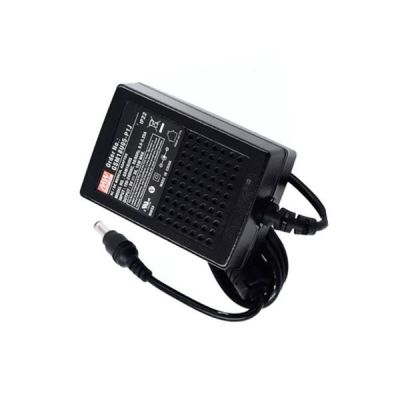

Meanwell GSM18U18 is 18W AC-DC Reliable Green Medical Adaptor with 18V1.0A0-1.0A18W150mVp-p. The model highlights single-output, wall-mounted style and high reliability. It is equipped with a 2-pin (no FG) standard USA AC power plug. Meanwhile, GSM18U18 adopts input range from 80VAC to 264V AC, supplied with output voltage 18VDC. So that, it could satisfy the demands for various kinds of miniature medical devices. The circuitry design meets the international medical standards (2 x MOPP) having an ultra-low leakage current (<50uA), fitting the medical devices in direct electrical contact with the patients. Since the efficiency reaches high up to 88% and extreme low no-load power consumption below 0.1W, GSM18U18 is compliant with USA EISA 2007/DoE and Canada NRCan. The supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. In addition, GSM18U18 utilizes the 94V-0 flame retardant plastic case, offering the double insulation that effectively prevents electrical shock. The product is approved with the international medical safety certificates as well. Because of its high safety, high quality and high efficiency, Meanwell GSM18U18 serves as an ideal power supply solution for various types of medical electronic devices.
Meanwell GSM18U18-P1J Encoding
| GSM | Series Name |
| 18 | Rated Wattage |
| U | US 2 pin AC Plug |
| 18 | Output Voltage |
| P1J DC Plug Type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| Other Options available by customer requested |
Meanwell GSM18U18-P1J Specifications
| ORDER NO. | GSM18U18-P1J | |
| OUTPUT | SAFETY MODEL NO. | GSM18U18 |
| DC VOLTAGE | 18V | |
| RATED CURRENT | 1.0A | |
| CURRENT RANGE | 0-1.0A | |
| RATED POWER | 18W | |
| RIPPLE & NOISE (max.) | 150mVp-p | |
| VOLTAGE TOLERANCE | ±3.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±3.0% | |
| SETUP, RISE, HOLD UP TIME | 1000ms, 30ms, 50ms/230VAC 1500ms, 30ms, 15ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC 113 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 87.00% | |
| AC CURRENT | 0.5A / 115VAC 0.25A / 230VAC | |
| INRUSH CURRENT (max.) | 55A / 230VAC 30A / 115VAC | |
| LEAKAGE CURRENT(max.) | Touch current < 50μA/264VAC | |
| PROTECTION | OVERLOAD | 105 ~ 170% rated output powe |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 18.9-24.3V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP. | -25 ~ +60℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% /℃(0~40℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | ANSI/AAMI ES60601-1, ES60601-1-11, EAC TP TC 004 approved |
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP | |
| WITHSTAND VOLTAGE | I/P-O/P:4KVA | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| Others | Life | 3889.1K hrs min. Telcordia SR-332 (Bellcore) ; 794.6K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 79*54*33mm (L*W*H) | |
| PACKING | 185g ; 60pcs / 12.1Kg / CARTON | |
Meanwell GSM18U18-P1J Features
l Extremely low leakage current
l No load power consumption<0.1 W
l Energy efficiency Level VI (except 5~9V for Level V)
l -25~+60℃ wide range working temperature
l Protections: Short circuit 1 Overload 1 Over voltage
l LED indicator for power on
l Various DC plug quick adapter accessory available
l 3 years warranty
l 2 pole USA plug, Class II power unit
l Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1/-1-11
Meanwell GSM18U18-P1J Applications
l Blood qlucose meter
l Blood pressure meter
l Nebulizer
l Inhaler
l Portable medical device
Meanwell GSM18U18-P1J Mechanical Diagram
