Details

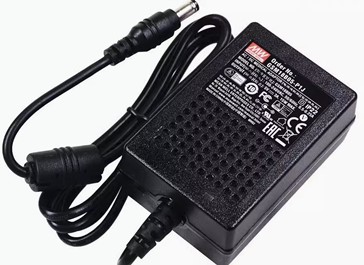

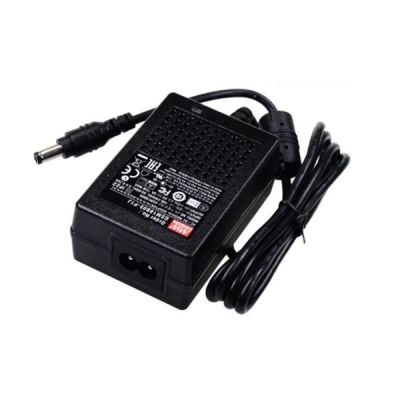

Meanwell GSM18B Series is a 18W AC-DC Green Medical Adaptor. The product highlights single-output, desktop style and high reliability. It is equipped with a 2-pin (no FG) standard IEC320-C8 power plug, and adopts the input range from 80VAC to 264VAC. At the same time, the entire series supplies different output voltages between 5VDC and 48VDC. So that it can satisfy the demands for various kinds of miniature medical devices. The circuitry design meets the international medical standards (2XMOPP), having an ultra-low leakage current (<50uA), fitting the medical devices in direct electrical contact with the patients. In addition, the work efficiency reaches high up to 88% and extremely low no-load power consumption below 0.1W. GSM18B is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, EU ErP and meet Code of Conduct (CoC) Version 5. What’s more, the supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. The entire series also utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock. It is approved with the international medical safety certificates as well. Considering its long lifetime, high efficiency, and excellent performance, Meanwell GSM18B Series serves as an ideal power supply solution for various types of medical electronic device.
Meanwell GSM18B Series Encoding

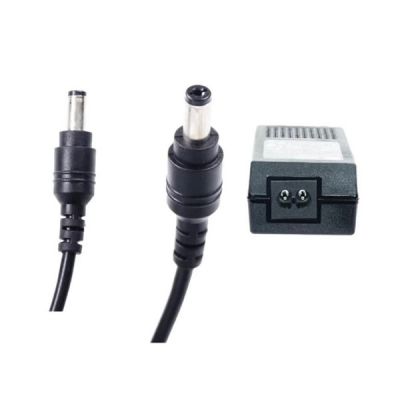

| GSM | Series Name |
| 18 | Rated Wattage |
| B | IEC320-C8 2 Pin AC Inlet |
| 5 | Output voltage |
| P1J- DC plug type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1ѱХ5.5ѱх11mm, С+, tunіng fоrk tуре |
| Other Options available by customer requested |
Meanwell GSM18B Series Model Specifications
| ORDER NO. | GSM18B05-P1J | GSM18B07-P1J | GSM18B09-P1J | GSM18B12-P1J | GSM18B15-P1J | GSM18B18-P1J | GSM18B24-P1J | GSM18B48-P1J | |
| OUTPUT | SAFETY MODEL NO. | GSM18B05 | GSM18B07 | GSM18B09 | GSM18B12 | GSM18B15 | GSM18B18 | GSM18B24 | GSM18B48 |
| DC VOLTAGE | 5V | 7.5V | 9V | 12V | 15V | 18V | 24V | 48V | |
| RATED CURRENT | 3A | 2A | 2A | 1.5A | 1.2A | 1A | 0.75A | 0.375A | |
| CURRENT RANGE | 0-3A | 0-2A | 0-2A | 0-1.5A | 0-1.2A | 0-1A | 0-0.75A | 0-0.375A | |
| RATED POWER | 15W | 15W | 18W | 18W | 18W | 18W | 18W | 18W | |
| RIPPLE & NOISE (max.) | 60mVp-p | 80mVp-p | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 180mVp-p | 240mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | ±5.0% | ±5.0% | ±3.0% | ±3.0% | ±3.0% | ±2.0% | ±2.0% | |
| LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LOAD REGULATION | ±5.0% | ±5.0% | ±5.0% | ±3.0% | ±3.0% | ±3.0% | ±2.0% | ±2.0% | |
| SETUP, RISE, HOLD UP TIME | 500ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load | ||||||||
| HOLD UP TIME (Typ.) | 16ms/230VAC 16ms/115VAC at full load | ||||||||
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC 113 ~ 370VDC | |||||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||||
| EFFICIENCY (Typ.) | 80.00% | 83.00% | 84.00% | 85.00% | 85.50% | 86.00% | 87.00% | 88.00% | |
| AC CURRENT | 0.5A / 115VAC 0.25A / 230VAC | ||||||||
| INRUSH CURRENT (max.) | 55A / 230VAC 30A / 115VAC | ||||||||
| LEAKAGE CURRENT(max.) | Touch current < 50μA/264VAC | ||||||||
| PROTECTION | OVERLOAD | 105 ~ 170% rated output power | |||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||||
| OVER VOLTAGE | 5.25-7.5V | 7.88-10.13V | 9.45-12.6V | 12.6-17.2V | 15.75-20.25V | 18.9-24.3V | 25.2-32.4V | 50.4-64.8V | |
| Protection type : Shut down o/p voltage, re-power on to recover | |||||||||
| ENVIRONMENT | WORKING TEMP. | -25 ~ +60℃(Refer to "Derating Curve") | |||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | ||||||||
| TEMP. COEFFICIENT | ±0.03% / ℃ (0 ~ 40℃) | ||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||||
| SAFETY & EMC | SAFETY STANDARDS | ANSI/AAMI ES60601-1 / ES60601-1-11(3.1 version), CAN/CSA-C22 3 Edition, TUV BS EN/EN60601-1 / BS EN/EN60601-1-11, rd EAC TP TC 004 approved | |||||||
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP | ||||||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC | ||||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||||
| Conducted emission | BS EN/EN55011(CISPR11),FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B),MSIP KN32 | Class B | |||||||
| Radiated emission | BS EN/EN55011(CISPR11),FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B),MSIP KN32 | Class B | |||||||
| Harmonic current | BS EN/EN61000-3-2 | Class A | |||||||
| Voltage flicker | BS EN/EN61000-3-3 | ----- | |||||||
| EMC IMMUNITY | BS EN/EN60601-1-2, BS EN/EN61204-3 | ||||||||
| Parameter | Standard | Test Level | |||||||
| ESD | BS EN/EN61000-4-2 | Level 4, 15KV air ; Level 4, 8KV contact | |||||||
| RF field susceptibility | BS EN/EN61000-4-3 | Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz ) | |||||||
| EFT bursts | BS EN/EN61000-4-4 | Level 3, 2KV | |||||||
| Surge susceptibility | BS EN/EN61000-4-5 | Level 3, 1KV/Line-Line | |||||||
| Conducted susceptibility | BS EN/EN61000-4-6 | Level 3, 10V | |||||||
| Magnetic field immunity | BS EN/EN61000-4-8 | Level 4, 30A/m | |||||||
| Voltage dip, interruption | BS EN/EN61000-4-11 | 100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods |
|||||||
| Others | MTBF | 3889.1K hrs min. Telcordia SR-332 (Bellcore) ; 794.6K hrs min. MIL-HDBK-217F (25℃) | |||||||
| DIMENSION | 79*54*33mm (L*W*H) | ||||||||
| PACKING | 205g ; 60pcs / 13.3Kg / CARTON | ||||||||
Meanwell GSM18B Series Features
l 2 pole AC inlet lEC320-C8, Class II power unit
l Medical safety approved (2XMOPP) according to ANSI/AAMI ES60601-1/-1-11, BS EN/EN60601-1/-1-11
l Extremely low leakage current
l No load power consumption<0.1W
l Energy efficiency Level VI and meet CoC version 5 (except 5~9V for Level V)
l -25~+60℃ wide range working temperature
l Protections: Short circuit/Overload/Over voltage
l LED indicator for power on
l Various DC plug quick adapter accessory available
l 3 years warranty
Meanwell GSM18B Series Applications
l Blood glucose meter
l Blood pressure meter
l Nebulizer
l Inhaler
l Portable medical device

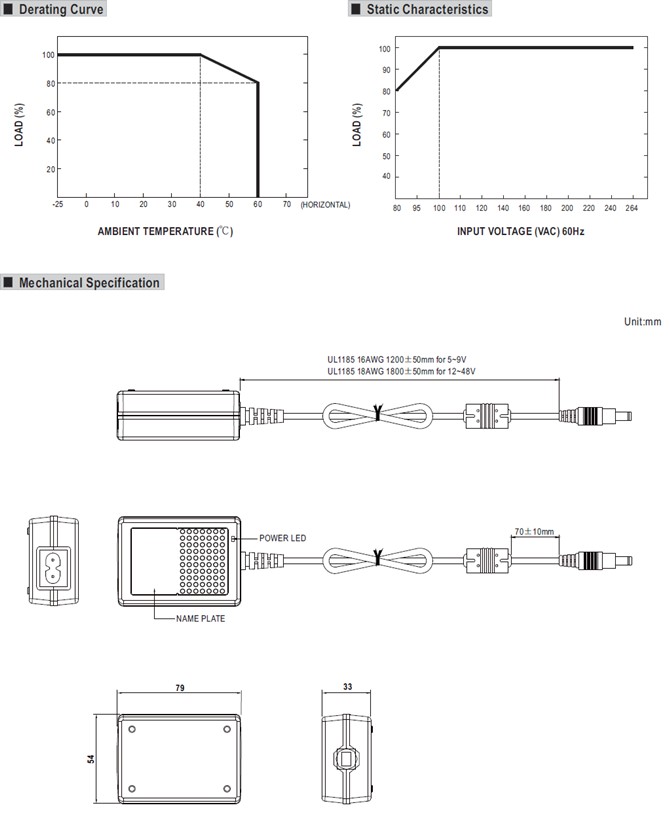

Meanwell GSM18B Series Mechanical Diagram
