GSM160A24-R7B
24.89
Details

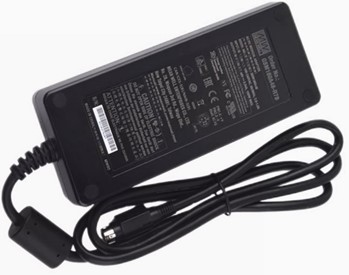

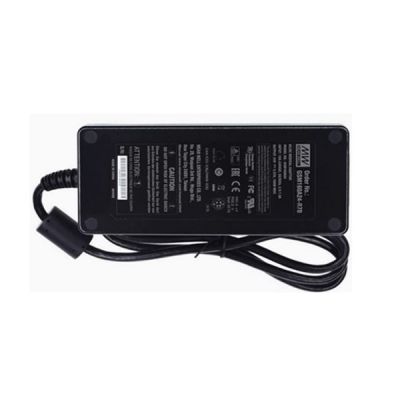

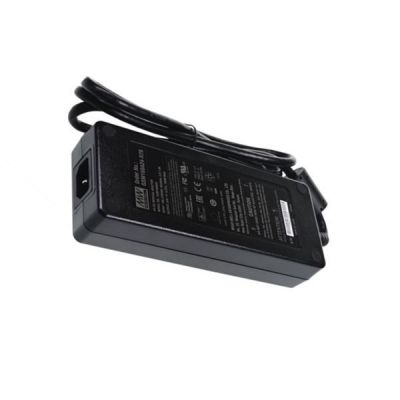

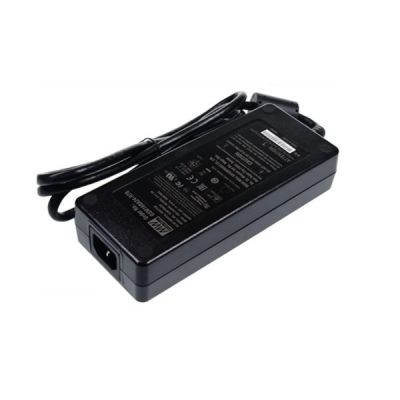

Meanwell GSM160A24 is 160W AC-DC Green Medical Adaptor with 24V6.67A0-6.67A160W120mVp-p. The unit highlights single-output, desktop style and high reliability. It is equipped with a 3-pin (with FG) standard IEC320-C14 power plug. GSM160A24 adopts the input range from 80VAC to 264VAC with output voltage 24VDC. So that it is able to satisfy the demands for various kinds of medical electrical devices. Meanwhile, the circuitry design meets the international medical standards (2*MOPP), providing an ultra-low leakage current (<100uA), and fits the medical devices in direct electrical contact with the patients. The work efficiency reaches high up to 94% and extremely low no-load power consumption below 0.15W. What’s more, GSM160A24 is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, EU ErP, and meet Code of Conduct (CoC) Version 5. The supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. The unit utilizes the 94V-0 flame retardant plastic case as well, and approved with the international medical safety certificates. In view of its longevity, high efficiency, and excellent performance, Meanwell GSM160A24 serves as an ideal power supply solution for various types of medical electronic devices.
Meanwell GSM160A24-R7B Encoding
| GSM | Series Name |
| 160 | Rated Wattage |
| A | IEC320-C14 AC inlet |
| 24 | Output voltage |
| R7B- DC plug type | R7B: Standard model, Power DIN 4Pin with lock type |
| Other Options available by customer requested |
Meanwell GSM160A24-R7B Specifications
| ORDER NO. | GSM160A24-R7B | |
| OUTPUT | SAFETY MODEL NO. | GSM160A24 |
| DC VOLTAGE | 24V | |
| RATED CURRENT | 6.67A | |
| CURRENT RANGE | 0-6.67A | |
| RATED POWER (max) | 160W | |
| RIPPLE & NOISE (max.) | 120mVp-p | |
| VOLTAGE TOLERANCE | ±3.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±3.0% | |
| SETUP, RISE TIME | 2000ms, 50ms / 230VAC 2500ms, 50ms / 115VAC at full load | |
| HOLD UP TIME (Typ.) | 24ms / 230VAC 24ms / 115VAC at full load | |
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | 12V,15V:PF>0.93 / 230VAC 20V,24V,48V:PF>0.94 / 230VAC PF>0.98 / 115VAC at full load | |
| EFFICIENCY (Typ.) | 93.00% | |
| AC CURRENT (Typ.) | 1.85A / 115VAC 1A / 230VAC | |
| INRUSH CURRENT (Typ.) | Cold start 90A / 115VAC 110A / 230VAC | |
| LEAKAGE CURRENT(max.) | Earth leakage current < 175 A/264VAC , Touch current <90 A/264VAC | |
| PROTECTION | OVERLOAD | 105 ~ 150% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 105 ~ 135% rated output voltage | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recove | |
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% /℃(0~40℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| OPERATING ALTITUDE | 3000 meters | |
| SAFETY & EMC | SAFETY STANDARDS | IEC60601-1, TUV BS EN/EN60601-1, ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3, EAC TP TC 004 approved |
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP | |
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN60601-1-2, BS EN/EN61204-3 | |
| Others | MTBF | 2200.0K hrs min. Telcordia SR-332 (Bellcore) ; 239.4K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 175*72*35mm (L*W*H) | |
| PACKING | 0.66Kg; 20pcs/14.2Kg/0.95CUFT | |
Meanwell GSM160A24-R7B Features
l 3 years warranty
l Lifetime>85 K hours
l LED indicator for power on
l Extremely low leakage current
l No load power consumption<0.15W
l -30~+70℃ wide range working temperature
l Various DC plug quick adapter accessory available
l 3 pole AC inlet IEC320-C14, Class I power unit
l Energy efficiency level VI and meet CoC Version 5
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Medical safety approved (2 X MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
Meanwell GSM160A24-R7B Applications
l Oral irrigator
l Breath Machine
l Medical computer monitor
l Mobile clinical workstation
l Portable hemodialysis machine
Meanwell GSM160A24-R7B Mechanical Diagram
