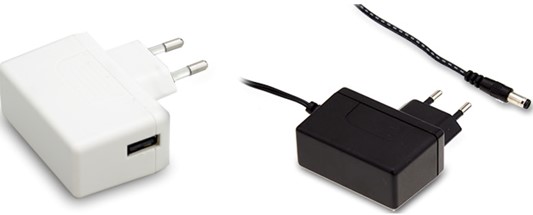

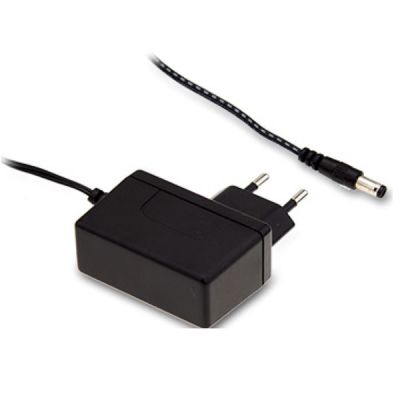

GSM12E
12.96
Details
Meanwell GSM12E Series is 12W AC-DC Green Medical Adaptor. The product features single-output, wall-mounted, compact and convenient for carry. It is equipped with the standard 2-pin European plug. At the same time, GSM12E is a classⅡpower unit (no FG), accepting the input range from 80VAC to 264VAC. So that it can satisfy the demands for various types of medical electrical devices. The circuitry design meets the international medical standards (2*MOPP), having an ultra-low leakage current (<100μA), fitting the medical devices in direct electrical contact with the patients. In addition, the working efficiency reaches high up to 87% and extremely low no-load power consumption below 0.075W (<0.1W for 18V/48V), GSM12E is compliant with EU ErP and meets CoC version 5 (Except fo18V/48V). The supreme feature allows the adaptor to save energy when it is under either operating mode or standby mode. Apart from them, the entire series is approved for international safety regulations, and adopts the 94V-0 flame retardant plastic case, which could effectively prevent users from electric hazard. Considering its high safety, high quality and high efficiency, Meanwell GSM12E Series serves as an ideal power supply solution for various types of medical electronic devices.
Meanwell GSM12E Series Encoding

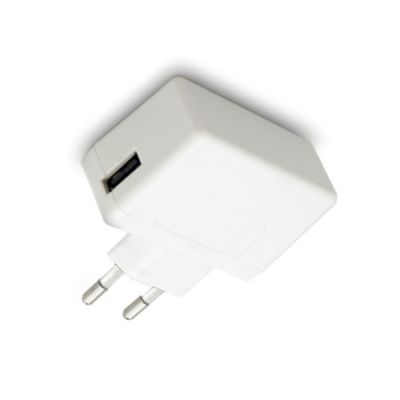

| GSM | Series Name |
| 12 | Rated Wattage |
| E | European 2 pin AC Plug |
| 5 | Output Voltage |
| P1J DC Plug Type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| USB: USB (type A) for 5V model only | |
| Other Options available by customer requested |
Meanwell GSM12E Series Model Specifications
| ORDER NO. | GSM12E05-□ □=P1J USB |
GSM12E07-P1J | GSM12E09-P1J | GSM12E12-P1J | GSM12E15-P1J | GSM12E18-P1J | GSM12E24-P1J | GSM12E48-P1J | |
| OUTPUT | SAFETY MODEL NO. | GSM12E05 | GSM12E07 | GSM12E09 | GSM12E12 | GSM12E15 | GSM12E18 | GSM12E24 | GSM12E48 |
| DC VOLTAGE | 5V | 7.5V | 9V | 12V | 15V | 18V | 24V | 48V | |
| RATED CURRENT | 2.4A | 1.6A | 1.33A | 1A | 0.8A | 0.66A | 0.5A | 0.25A | |
| CURRENT RANGE | 0-2.4A | 0-1.6A | 0-1.33A | 0-1A | 0-0.8A | 0-0.66A | 0-0.5A | 0-0.25A | |
| RATED POWER | 12W | 12W | 12W | 12W | 12W | 12W | 12W | 12W | |
| RIPPLE & NOISE (max.) | 60mVp-p | 60mVp-p | 60mVp-p | 80mVp-p | 80mVp-p | 80mVp-p | 80mVp-p | 100mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | ±5.0% | ±4.0% | ±3.0% | ±3.0% | ±3.0% | ±2.0% | ±2.0% | |
| LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LOAD REGULATION | ±5.0% | ±5.0% | ±4.0% | ±3.0% | ±3.0% | ±3.0% | ±2.0% | ±2.0% | |
| SETUP, RISE, HOLD UP TIME | 500ms, 30ms, 16ms/230VAC 500ms, 30ms, 16ms/115VAC at full load | ||||||||
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC 113 ~ 370VDC | |||||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||||
| EFFICIENCY (Typ.) | 80.00% | 82.00% | 82.00% | 82.50% | 84.00% | 85.00% | 85.00% | 87.00% | |
| AC CURRENT | 0.4A / 115VAC 0.2A / 230VAC | ||||||||
| INRUSH CURRENT (max.) | Cold start 30A / 115VAC 60A / 230VAC | ||||||||
| LEAKAGE CURRENT(max.) | Touch current < 100μA/264VAC | ||||||||
| PROTECTION | OVERLOAD | 110 ~ 200% rated output power | |||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||||
| OVER VOLTAGE | 110 ~ 140% rated output voltage | ||||||||
| Protection type : Clamp by zener diode, output short | |||||||||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃ (Refer to "Derating Curve") | |||||||
| WORKING HUMIDITY | 0 ~ 95% RH non-condensing | ||||||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 0 ~ 95% RH non-condensing | ||||||||
| TEMP. COEFFICIENT | ±0.03% / ℃ (0 ~ 40℃) | ||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||||
| SAFETY & EMC | SAFETY STANDARDS | TUV BS EN/EN60601-1, BS EN/EN60601-1-11 (3.1 version), IS13252(Part1)/IEC60950-1(for USB only), EAC TP TC 004 approved GSM12E05-USB without BS EN/EN60601-1-11 | |||||||
| ISOLATION LEVEL | Pimary - Secondary: 2 x MOPP | ||||||||
| WITHSTAND VOLTAGE | I/P-O/P:5656VDC | ||||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||||
| Conducted emission | BS EN/EN55011 (CISPR11) | Class B | |||||||
| Radiated emission | BS EN/EN55011 (CISPR11) | Class B | |||||||
| Harmonic current | BS EN/EN61000-3-2 | Class A | |||||||
| Voltage flicker | BS EN/EN61000-3-3 | ----- | |||||||
| EMC IMMUNITY | BS EN/EN55024 , BS EN/EN60601-1-2, BS EN/EN61204-3 | ||||||||
| Parameter | Standard | Test Level | |||||||
| ESD | BS EN/EN61000-4-2 | Level 4, 15KV air ; Level 4, 8KV contact | |||||||
| RF field susceptibility | BS EN/EN61000-4-3 | Level 3, 10V/m(80MHz~2.7GHz) Table 9, 9~28V/m(385MHz~5.78GHz |
|||||||
| EFT bursts | BS EN/EN61000-4-4 | Level 3, 2KV | |||||||
| Surge susceptibility | BS EN/EN61000-4-5 | Level 3, 1KV/Line-Line | |||||||
| Conducted susceptibility | BS EN/EN61000-4-6 | Level 2, 3V | |||||||
| Magnetic field immunity | BS EN/EN61000-4-8 | Level 4, 30A/m | |||||||
| Voltage dip, interruption | BS EN/EN61000-4-11 | >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods |
|||||||
| Others | Life | 3 years : 100% load 40℃, 12hours / day | |||||||
| MTBF | 400Khrs min. MIL-HDBK-217F(25℃) | ||||||||
| DIMENSION | 62.2*27.4*39.7mm (L*W*H) | ||||||||
| PACKING | 100g, 90pcs / 10kg / CARTON for cable connection ; 76g, 150pcs / 12.5kg / CARTON for USB connection | ||||||||
Meanwell GSM12E Series Features
l Universal AC input/Full range
l Medical safety approved (2xMOPP) according to BS EN/EN6O6O1-1/BS EN/EN60601-1-1 1
l Extremely low leakage current
l No load power consumption< 0.075W(<0.1W for 18V/48V)
l Energy efficiency Level VI
l -20℃~+70℃ wide range working temperature
l ClassⅡ power (no earth pin)
l Protections: Short circuit/Overload/Over voltage
l Fully enclosed plastic case
l Various DC plug quick adapter accessory available
l 3 years warranty
Meanwell GSM12E Series Applicatiions
l Blood glucose meter
l Blood pressure meter
l Nebulizer
l Inhaler
l Portable medical device
l Sleep apnea devices

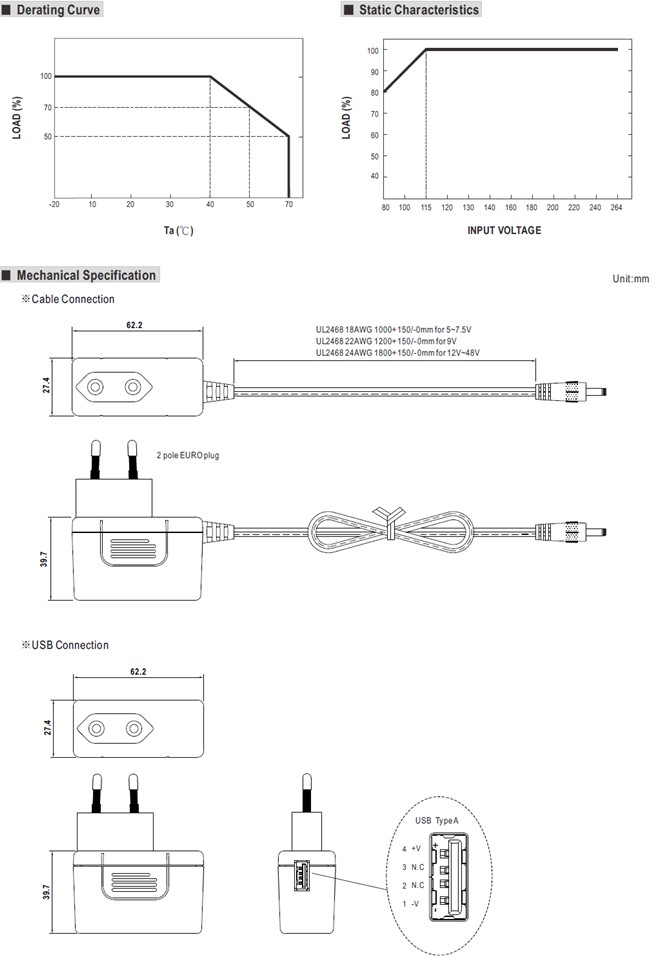

Meanwell GSM12E Series Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
