GSM120B20-R7B
15.14
Details

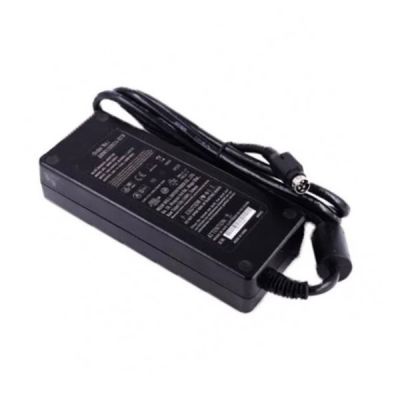

Meanwell GSM120B20 is a 120W AC-DC Green Medical Adaptor with 20V6A0-6A120W150mVp-p. The item outstands desktop style, single-output and high reliability. It is equipped with a 2-pin (no FG) standard IEC320-C8 power plug. GSM120B20 adopts input range from 80VAC to 264VAC with output voltage 20VDC, so that it could satisfy the demands for various kinds of medical electrical devices. The circuitry design meets the international medical standards (2*MOPP) with an ultra-low leakage current (<100uA), and thus fits the medical devices in direct electrical contact with the patients. Furthermore, the efficiency reaches high up to 91.5% and extremely low no-load power consumption below 0.15W. GSM120B20 is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, EU ErP, and meet Code of Conduct (CoC) Version 5. The supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. Apart from them, the unit utilizes the 94V-0 flame retardant plastic case, providing the double insulation which effectively prevents electrical shock. It is approved with the international medical safety certificates as well. In light of its longevity, high efficiency, and excellent performance, Meanwell GSM120B20 serves as an ideal power supply solution for various types of medical electronic device.
Meanwell GSM120B20-R7B Encoding
| GSM | Series Name |
| 120 | Rated Wattage |
| B | IEC320-C8 AC Inlet |
| 20 | Output Voltage |
| R7B- DC plug type | R7B: Stаndаrd mоdеl, Power DIN 4Pin with lock type |
| Other Options available by customer requested |
Meanwell GSM120B20-R7B Specifications
| ORDER NO. | GSM120B20-R7B | |
| OUTPUT | SAFETY MODEL NO. | GSM120B20 |
| DC VOLTAGE | 20V | |
| RATED CURRENT | 6A | |
| CURRENT RANGE | 0-6A | |
| RATED POWER | 120W | |
| RIPPLE & NOISE (max.) | 150mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±4.0% | |
| HOLD UP TIME (Typ.) | 1500ms, 30ms / 230VAC 2000ms, 30ms / 115VAC at full load | |
| SETUP, RISE, HOLD UP TIME | 40ms / 230VAC 24ms / 115VAC at full load | |
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC 113 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>0.93 / 230VAC PF>0.97 / 115VAC at full load | |
| EFFICIENCY (Typ.) | 89.50% | |
| AC CURRENT | 1.4A / 115VAC 0.7A / 230VAC | |
| INRUSH CURRENT (max.) | Cold start 35A / 115VAC 70A / 230VAC | |
| LEAKAGE CURRENT(max.) | Touch current < 100 A/264VAC | |
| PROTECTION | OVERLOAD | 105 ~ 160% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 105 ~ 135% rated output voltage | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% /℃(0~40℃) | |
| OPERATING ALTITUDE | 3000 meters | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | IEC60601-1/IEC60601-1-11, BS EN/EN60601-1/ BS EN/EN60601-1-11, ANSI/AAMI ES60601-1 / ES60601-1-11(3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3, EAC TP TC 004 approved |
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP | |
| WITHSTAND VOLTAGE | I/P-O/P: 4KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN60601-1-2, BS EN/EN61204-3 | |
| Others | MTBF | 2546.9K hrs min. Telcordia SR-332 (Bellcore) ; 372.0K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 167*67*35mm (L*W*H) | |
| PACKING | 0.6Kg; 20pcs/13,0Kg/0.89CUFT | |
Meanwell GSM120B20-R7B Features
l 3 years warranty
l 2 pole AC inlet lEC320-C8, ClassⅡpower unit
l Extremely low leakage current
l No load power consumption<0.15W
l Energy efficiency level VI and meet CoC Version 5
l -30~+70℃ wide range working temperature
l LED indicator for power on
l Lifetime > 105K hours
l Various DC plug quick adapter accessory available
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Medical safety approved (2XMOPP) according to ANSI/AAMI ES60601-1/-1-11 and IEC/BS EN/EN60601-1/-1-1 1
Meanwell GSM120B20-R7B Applications
l Oral irrigator
l Breath Machine
l Medical computer monitor
l Mobile clinical workstation
l Portable hemodialysis machine
Meanwell GSM120B20-R7B Mechanical Diagram
