GSM120A20-R7B
17.92
Details

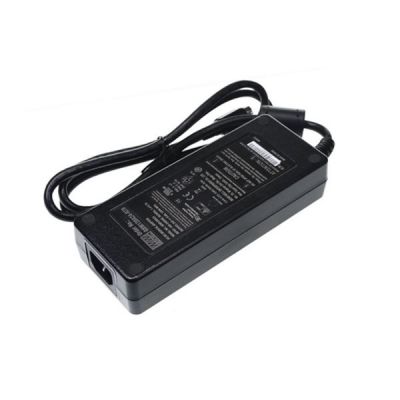

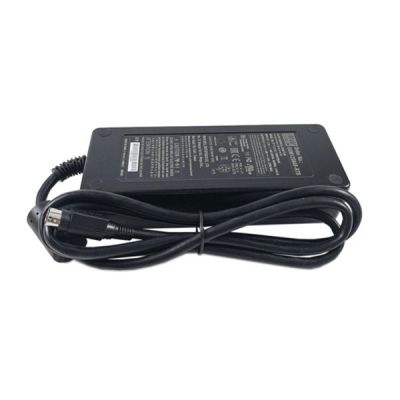

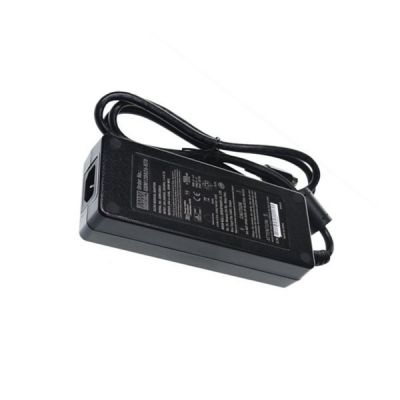

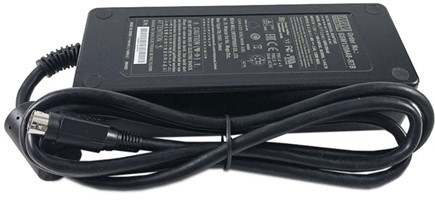

Meanwell GSM120A20 is a 120W AC-DC Green Medical Adaptor with 20V6A0-6A120W180mVp-p. The item features single-output, desktop style and high reliability. It is equipped with a 3-pin (with FG) standard IEC320-C14 power plug. GSM120A20 adopts the input range from 80VAC to264VAC with output voltage 20VDC. So that it is able to satisfy the demands for various kinds of medical electrical devices. At the same time, the circuitry design meets the international medical standards (2*MOPP), having an ultra-low leakage current (<100uA), fitting the medical devices in direct electrical contact with the patients. Furthermore, the work efficiency reaches high up to 91.5% and extremely low no-load power consumption below 0.15W. GSM120A20 is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, EU ErP, and meet Code of Conduct (CoC) Version 5. Additionally, the supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. The unit utilizes the 94V-0 flame retardant plastic case, and approved with the international medical safety certificates. In light of its longevity, high efficiency, and excellent performance, Meanwell GSM120A20 serves as an ideal power supply solution for various types of medical electronic devices.
Meanwell GSM120A20-R7B Encoding
| GSM | Series Name |
| 120 | Rated Wattage |
| A | IEC320-C14 AC inlet |
| 20 | Output voltage |
| R7B- DC plug type | R7B: Standard model, Power DIN 4Pin with lock type |
| Other Options available by customer requested |
Meanwell GSM120A20-R7B Specifications
| ORDER NO. | GSM120A20-R7B | |
| OUTPUT | SAFETY MODEL NO. | GSM120A20 |
| DC VOLTAGE | 20V | |
| RATED CURRENT | 6A | |
| CURRENT RANGE | 0-6A | |
| RATED POWER (max) | 120W | |
| RIPPLE & NOISE (max.) | 180mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±4.0% | |
| SETUP, RISE TIME | 1500ms, 30ms / 230VAC 2000ms, 30ms / 115VAC at full load | |
| HOLD UP TIME (Typ.) | 40ms/230VAC 24ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 89.00% | |
| AC CURRENT (Typ.) | 1.4A / 115VAC 0.7A / 230VAC | |
| INRUSH CURRENT (Typ.) | Cold start 35A / 115VAC 70A / 230VAC | |
| LEAKAGE CURRENT(max.) | Earth leakage current < 115μA/264VAC , Touch current <100μA/264VAC | |
| PROTECTION | OVERLOAD | 105 ~ 160% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 105 ~ 135% rated output voltage | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% /℃(0~40℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| OPERATING ALTITUDE | 3000 meters | |
| SAFETY & EMC | SAFETY STANDARDS | IEC60601-1, TUV BS EN/EN60601-1, ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3, EAC TP TC 004 approved |
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP, Primary-Earth: 1xMOPP | |
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN60601-1-2, BS EN/EN61204-3 | |
| Others | MTBF | 2413.9K hrs min. Telcordia SR-332 (Bellcore) ; 388.5K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 167*67*35mm (L*W*H) | |
| PACKING | 0.6Kg; 20pcs/13.0Kg/0.89CUFT | |
Meanwell GSM120A20-R7B Features
l Lifetime>95K hours
l Various DC plug quick adapter accessory available
l 3 years warranty
l LED indicator for power on
l 3 pole AC inlet IEC320-C14, Class I power unit
l Extremely low leakage current
l No load power consumption<0.15W
l Energy efficiency level VI and meet CoC Version 5
l -30~+70℃ wide range working temperature
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Medical safety approved (2XMOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN606O1-1
Meanwell GSM120A20-R7B Applications
l Mobile clinical workstation
l Oral irrigator
l Portable hemodialysis machine
l Breath Machine
l Medical computer monitor
