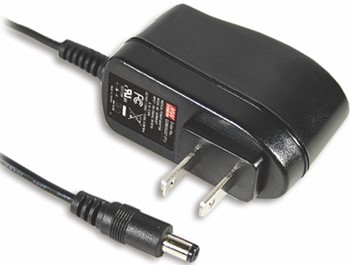

Meanwell GSM06U Series is a 6W AC-DC Reliable Green Medical Adaptor. The product features single-output, wall-mounted style and high reliability. It is equipped with a 2-pin (no FG) standard USA AC power plug. At the same time, GSM06U adopts the input range from 85VAC to 264VAC, and supplies different output voltages between 5VDC and 24VDC. Therefore, it could satisfy the demands for various kinds of miniature medical devices. The circuitry design meets the international medical standards (2 x MOPP) with ultra-low leakage current (<50uA), which fits the medical devices in direct electrical contact with the patients. Since the efficiency reaches high up to 82% and extreme low no-load power consumption below 0.3W. GSM06U is compliant with USA EISA 2007. Additionally, the supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. The entire series also utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock. GSMO6U is approved with the international medical safety certificates as well. Considering its high safety, high quality and high performance, Meanwell GSM06U Series serves as an ideal power supply solution for various types of consumer electronic devices.
Meanwell GSM06U Series Encoding
| GSM | Series Name |
| 6 | Rated Wattage |
| U | USA 2 pin AC Plug |
| 5 | Output Voltage |
| P1J | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| Other Options available by customer requested |
Meanwell GSM06U Series Model Specifications
| ORDER NO. | GSM06U05-P1J | GSM06U06-P1J | GSM06U07-P1J | GSM06U09-P1J | GSM06U12-P1J | GSM06U15-P1J | GSM06U18-P1J | GSM06U24-P1J | |
| OUTPUT | SAFETY MODEL NO. | GSM06U05 | GSM06U06 | GSM06U07 | GSM06U09 | GSM06U12 | GSM06U15 | GSM06U18 | GSM06U24 |
| DC VOLTAGE | 5V | 6V | 7.5V | 9V | 12V | 15V | 18V | 24V | |
| RATED CURRENT | 1.2A | 1.0A | 0.8A | 0.66A | 0.5A | 0.4A | 0.33A | 0.25A | |
| CURRENT RANGE | 0-1.2A | 0-1.0A | 0-0.8A | 0-0.66A | 0-0.5A | 0-0.4A | 0-0.33A | 0-0.25A | |
| RATED POWER | 6W | 6W | 6W | 6W | 6W | 6W | 6W | 6W | |
| RIPPLE & NOISE (max.) | 50mVp-p | 50mVp-p | 80mVp-p | 80mVp-p | 100mVp-p | 120mVp-p | 150mVp-p | 180mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | ±5.0% | ±5.0% | ±5.0% | ±5.0% | ±5.0% | ±5.0% | ±4.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±5.0% | ±5.0% | ±5.0% | ±5.0% | ±3.0% | ±3.0% | ±3.0% | ±2.0% | |
| SETUP, RISE, HOLD UP TIME | 1000ms, 50ms, 12ms at full load | ||||||||
| INPUT | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC | |||||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||||
| EFFICIENCY (Typ.) | 68.00% | 74.00% | 74.00% | 76.00% | 77.00% | 79.00% | 80.00% | 82.00% | |
| AC CURRENT | 0.18A / 100VAC | ||||||||
| INRUSH CURRENT (max.) | Cold start 15A / 115VAC 30A / 230VAC | ||||||||
| LEAKAGE CURRENT(max.) | Touch current < 50μA/264VAC | ||||||||
| PROTECTION | OVERLOAD | >105% rated output power | |||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||||
| OVER VOLTAGE | >120% rated output voltage | ||||||||
| Protection type : Clamp by zener diode | |||||||||
| ENVIRONMENT | WORKING TEMP. | 0 ~ +50℃ (Refer to "Derating Curve") | |||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH non-condensing | ||||||||
| TEMP. COEFFICIENT | ±0.04% / ℃ (0 ~ 40℃) | ||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||||
| SAFETY & EMC | SAFETY STANDARDS | ANSI/AAMI ES60601-1(3.1 version),CAN/CSA-C22 NO. 60601-1 3rd edition, EAC TP TC 004 approved | |||||||
| WITHSTAND VOLTAGE | I/P-O/P:5656VDC | ||||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||||
| Conducted emission | FCC PART 15 & 18 / CISPR22, CAN ICES-3(B)/NMB-3(B) | Class B | |||||||
| Radiated emission | FCC PART 15 & 18 / CISPR22, CAN ICES-3(B)/NMB-3(B) | Class B | |||||||
| Others | Life | 500Khrs min. MIL-HDBK-217F(25℃) | |||||||
| DIMENSION | 32*66*42.5mm (L*W*H) | ||||||||
| PACKING | 100g; 110pcs/12Kg/CARTON | ||||||||
Meanwell GSM06U Series Features
l 2 pole USA AC plug, ClassⅡ power unit
l Medical safety approved (2 X MOPP) according to ANSI/AAMI ES60601-1
l Extremely low leakage current
l No load power consumption< 0.3W
l Energy efficiency Level V
l Protections: Short circuit/Overload/Over voltage
l Fully enclosed plastic case
l Various DC plug quick adapter accessory available
l 3 years warranty
Meanwell GSM06U Series Applications
l Blood glucose meter
l Blood pressure meter
l Nebulizer
l Inhaler
l Portable medical device

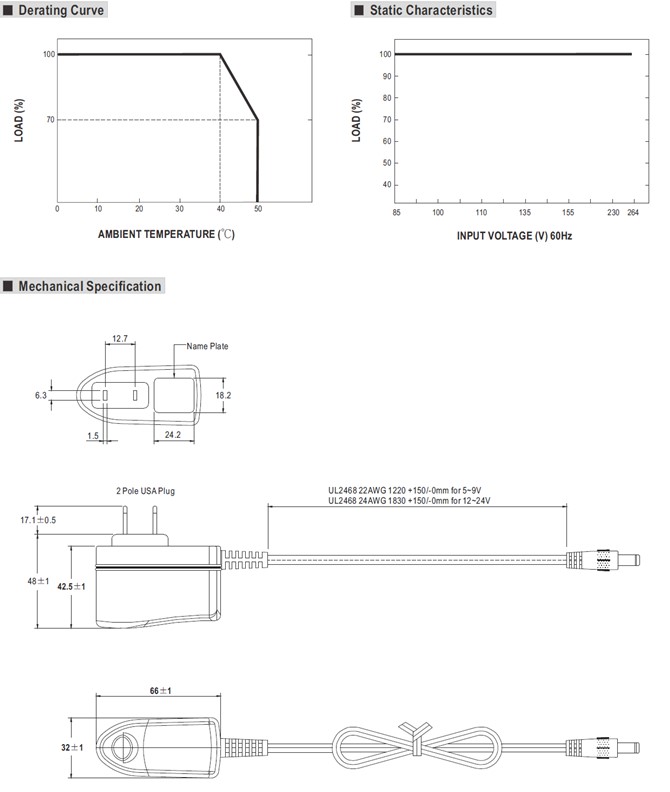

Meanwell GSM06U Series Mechanical Diagram
