GSM06E07-P1J
12.01
Details

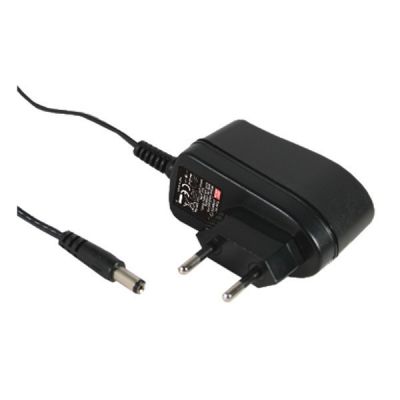

Meanwell GSM06E07 is a 6W AC-DC Green Medical Adaptor with 7.5V0.8A0-0.8A6W80mVp-p. The item outstands single-output, wall-mounted and high reliability. It is equipped with a 2-pin (no FG) standard European power plug. Meanwhile, GSM06E07 adopts the input range from 85VAC to 264VAC with output voltage 7.5VDC. Therefore, it is able to satisfy the demands for various kinds of miniature medical devices. The circuitry design meets the international medical standards (2XMOPP) with an ultra-low leakage current (<50uA), and fits the medical devices in direct electrical contact with the patients. As the efficiency reaches high up to 82% and extreme low no-load power consumption below 0.3W. GSMO6E07 is compliant with EU ErP. Apart from them, the supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. The product also utilizes the 94V-0 flame retardant plastic case, offering the double insulation that effectively prevents electrical shock. it is approved with the international medical safety certificates as well. In light of its high safety, high quality and high efficiency, Meanwell GSM06E07 serves as an ideal power supply solution for various types of medical electronic devices.
Meanwell GSM06E07-P1J Encoding
| GSM | Series Name |
| 6 | Rated Wattage |
| E | European 2 pin AC Plug |
| 7 | Output Voltage |
| P1J DC Plug Type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| Other Options available by customer requested |
Meanwell GSM06E07-P1J Specifications
| ORDER NO. | GSM06E07-P1J | |
| OUTPUT | SAFETY MODEL NO. | GSM06E07 |
| DC VOLTAGE | 7.5V | |
| RATED CURRENT | 0.8A | |
| CURRENT RANGE | 0-0.8A | |
| RATED POWER | 6W | |
| RIPPLE & NOISE (max.) | 80mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±5.0% | |
| SETUP, RISE, HOLD UP TIME | 1000ms, 50ms, 12ms at full load | |
| INPUT | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 74.00% | |
| AC CURRENT | 0.18A / 100VAC | |
| INRUSH CURRENT (max.) | Cold start 15A / 115VAC 30A / 230VAC | |
| LEAKAGE CURRENT(max.) | Touch current < 50μA/264VAC | |
| PROTECTION | OVERLOAD | >105% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 110 ~ 140% rated output power | |
| Protection type : Clamp by zener diode | ||
| ENVIRONMENT | WORKING TEMP. | 0 ~ +50℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.04% / ℃ (0 ~ 40℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | TUV BS EN/EN60601-1, BS EN/EN60601-1-11, EAC TP TC 004 approved |
| ISOLATION LEVEL | Pimary - Secondary: 2 x MOPP | |
| WITHSTAND VOLTAGE | I/P-O/P:5656VDC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55024 , BS EN/EN60601-1-2, BS EN/EN61204-3 | |
| Others | Life | 500Khrs min. MIL-HDBK-217F(25℃) |
| DIMENSION | 32*66*42.5mm (L*W*H) | |
| PACKING | 100g; 110pcs/12Kg/CARTON | |
Meanwell GSM06E07-P1J Features
l 3 years warranty
l Fully enclosed plastic case
l 2 pole EURO plug, ClassⅡpower unit
l Extremely low leakage current
l No load power consumption< 0.3W
l Energy efficiency Level V
l Protections: Short circuit/Overload/Over voltage
l Medical safety approved (2XMOPP) according to BS EN/EN60601-1
Meanwell GSM06E07-P1J Applications
l Blood glucose meter
l Blood pressure meter
l Nebulizer
l Inhaler
l Portable medical device
Meanwell GSM06E07-P1J Mechanical Diagram
