GSM06E
11.69

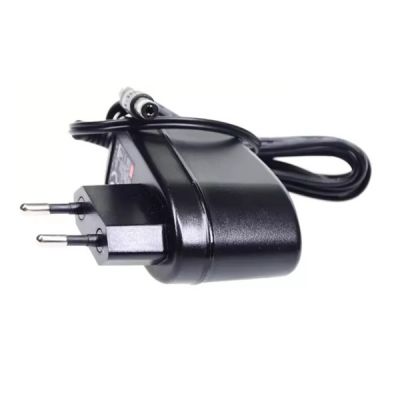

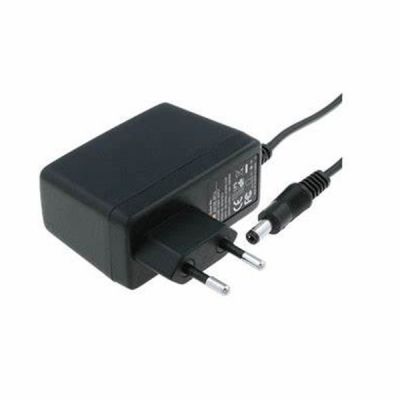

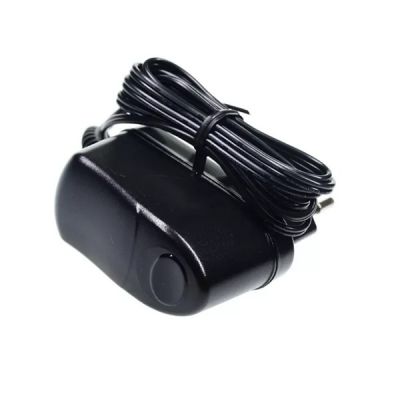

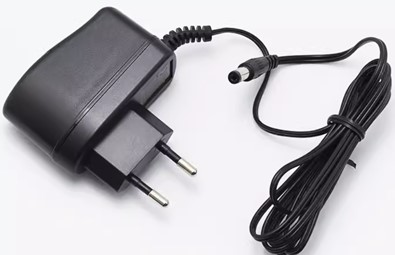

Details
Meanwell GSM06E Series is a 6W AC-DC Green Medical Adaptor. The entire series features single-output, wall-mounted and high reliability. It is equipped with a 2-pin (no FG) standard European power plug, adopting input range from 85VAC to 264VAC. At the same time, GSM06E supplies different output voltages between 5VDC and 24VDC. So that it can satisfy the demands for various kinds of miniature medical devices. The circuitry design meets the international medical standards (2XMOPP), having an ultra-low leakage current (<50uA), fitting the medical devices in direct electrical contact with the patients. Since the efficiency reaches high up to 82% and extreme low no-load power consumption below 0.3W. GSMO6E is compliant with EU ErP. Moreover, the supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. The product utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock. it is also approved with the international medical safety certificates. Considering its high safety, high quality and high efficiency, Meanwell GSM06E Series serves as an ideal power supply solution for various types of medical electronic devices.
Meanwell GSM06E Series Encoding
| GSM | Series Name |
| 6 | Rated Wattage |
| E | European 2 pin AC Plug |
| 5 | Output Voltage |
| P1J DC Plug Type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| Other Options available by customer requested |
Meanwell GSM06E Series Model Specifications
| ORDER NO. | GSM06E05-P1J | GSM06E06-P1J | GSM06E07-P1J | GSM06E09-P1J | GSM06E12-P1J | GSM06E15-P1J | GSM06E18-P1J | GSM06E24-P1J | |
| OUTPUT | SAFETY MODEL NO. | GSM06E05 | GSM06E06 | GSM06E07 | GSM06E09 | GSM06E12 | GSM06E15 | GSM06E18 | GSM06E24 |
| DC VOLTAGE | 5V | 6V | 7.5V | 9V | 12V | 15V | 18V | 24V | |
| RATED CURRENT | 1.2A | 1.0A | 0.8A | 0.66A | 0.5A | 0.4A | 0.33A | 0.25A | |
| CURRENT RANGE | 0-1.2A | 0-1A | 0-0.8A | 0-0.66A | 0-0.5A | 0-0.4A | 0-0.33A | 0-0.25A | |
| RATED POWER | 6W | 6W | 6W | 6W | 6W | 6W | 6W | 6W | |
| RIPPLE & NOISE (max.) | 50mVp-p | 50mVp-p | 80mVp-p | 80mVp-p | 100mVp-p | 120mVp-p | 150mVp-p | 180mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | ±5.0% | ±5.0% | ±5.0% | ±5.0% | ±5.0% | ±5.0% | ±4.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±5.0% | ±5.0% | ±5.0% | ±5.0% | ±3.0% | ±3.0% | ±3.0% | ±2.0% | |
| SETUP, RISE, HOLD UP TIME | 1000ms, 50ms, 12ms at full load | ||||||||
| INPUT | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC | |||||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||||
| EFFICIENCY (Typ.) | 68.00% | 74.00% | 74.00% | 76.00% | 77.00% | 79.00% | 80.00% | 82.00% | |
| AC CURRENT | 0.18A / 100VAC | ||||||||
| INRUSH CURRENT (max.) | Cold start 15A / 115VAC 30A / 230VAC | ||||||||
| LEAKAGE CURRENT(max.) | Touch current < 50μA/264VAC | ||||||||
| PROTECTION | OVERLOAD | >105% rated output power | |||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||||
| OVER VOLTAGE | 110 ~ 140% rated output power | ||||||||
| Protection type : Clamp by zener diode | |||||||||
| ENVIRONMENT | WORKING TEMP. | 0 ~ +50℃ (Refer to "Derating Curve") | |||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH non-condensing | ||||||||
| TEMP. COEFFICIENT | ±0.04% / ℃ (0 ~ 40℃) | ||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||||
| SAFETY & EMC | SAFETY STANDARDS | TUV BS EN/EN60601-1, BS EN/EN60601-1-11, EAC TP TC 004 approved | |||||||
| ISOLATION LEVEL | Pimary - Secondary: 2 x MOPP | ||||||||
| WITHSTAND VOLTAGE | I/P-O/P:5656VDC | ||||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||||
| Conducted emission | BS EN/EN55011 (CISPR11) | Class B | |||||||
| Radiated emission | BS EN/EN55011 (CISPR11) | Class B | |||||||
| Harmonic current | BS EN/EN61000-3-2 | Class A | |||||||
| Voltage flicker | BS EN/EN61000-3-3 | ----- | |||||||
| EMC IMMUNITY | BS EN/EN55024 , BS EN/EN60601-1-2, BS EN/EN61204-3 | ||||||||
| Parameter | Standard | Test Level | |||||||
| ESD | BS EN/EN61000-4-2 | Level 4, 15KV air ; Level 4, 8KV contact | |||||||
| RF field susceptibility | BS EN/EN61000-4-3 | Level 3, 10V/m(80MHz~2.7GHz) Table 9, 9~28V/m(385MHz~5.78GHz |
|||||||
| EFT bursts | BS EN/EN61000-4-4 | Level 3, 2KV | |||||||
| Surge susceptibility | BS EN/EN61000-4-5 | Level 3, 1KV/Line-Line | |||||||
| Conducted susceptibility | BS EN/EN61000-4-6 | Level 2, 3V | |||||||
| Magnetic field immunity | BS EN/EN61000-4-8 | Level 4, 30A/m | |||||||
| Voltage dip, interruption | BS EN/EN61000-4-11 | >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods |
|||||||
| Others | Life | 500Khrs min. MIL-HDBK-217F(25℃) | |||||||
| DIMENSION | 32*66*42.5mm (L*W*H) | ||||||||
| PACKING | 100g; 110pcs/12Kg/CARTON | ||||||||
Meanwell GSM06E Series Features
l 2 pole EURO plug, ClassⅡpower unit
l Medical safety approved (2XMOPP) according to BS EN/EN60601-1
l Extremely low leakage current
l No load power consumption< 0.3W
l Energy efficiency Level V
l Protections: Short circuit/Overload/Over voltage
l Fully enclosed plastic case
l 3 years warranty
Meanwell GSM06E Series Applications
l Blood glucose meter
l Blood pressure meter
l Nebulizer
l Inhaler
l Portable medical device

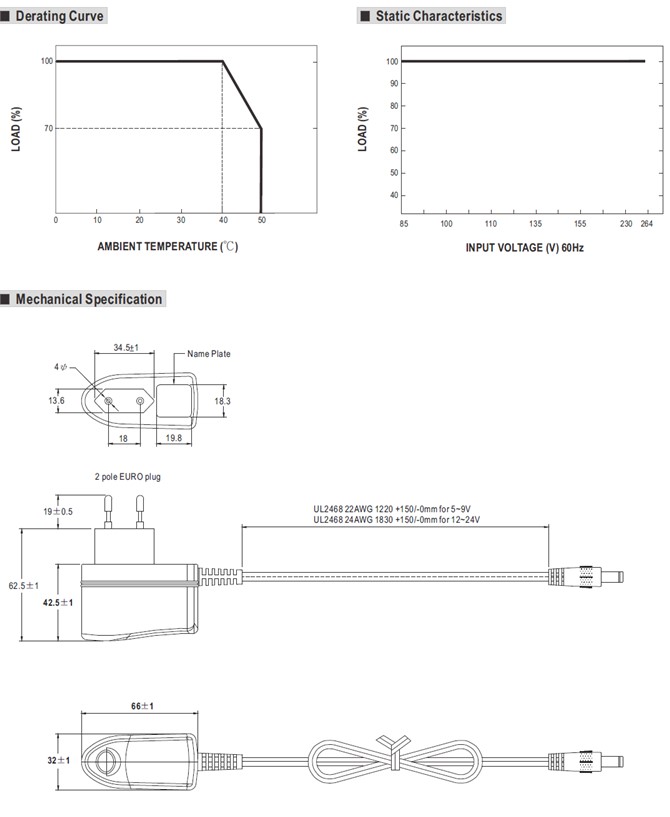

Meanwell GSM06E Series Mechanical Diagram
