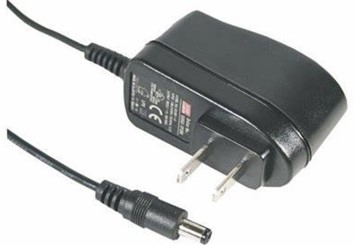

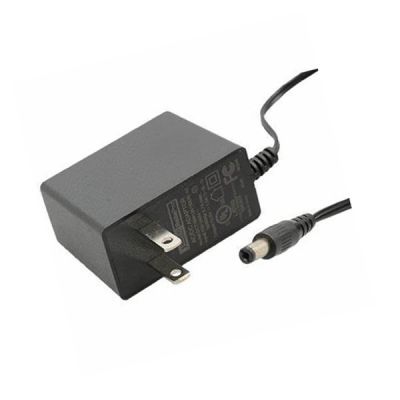

Meanwell GS06U Series is a 6W AC/DC green adaptor, featuring high reliability, single-output and wall-mounted style. The product is a classⅡpower unit (no FG), equipped with 2-Pin standard USA AC power plug, and adopts input range from 90VAC to 264VAC. At the same time, the entire series supplies different models with output voltages ranging between 5VDC and 48VDC. So that it could satisfy the demands for various types of consumer electronic devices. Since the efficiency reaches high up to 83% and extremely low no-load power consumption below 0.075W, Meanwell GS06U is compliant with USA EISA 2007/DoE. In addition, the supreme feature allows the adaptor to save energy when itis either under operating mode or standby mode. Moreover, the entire series utilizes the 94V-0 flame retardant plastic case, providing double insulation, which effectively prevents electrical shock. Considering its high safety, high reliability and high quality, Meanwell GSO6U Series serves as a high performance power supply solution for various types of consumer electronic devices.
Meanwell GS06U Series Encoding
| GS | Series Name |
| 6 | Rated Wattage |
| U | US 2 pin AC Plug |
| 1 | Output Voltage |
| P1J DC plug type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| Other Options available by customer requested |
Meanwell GS06U Series Model Specifications
| ORDER NO. | GS06U-1P1J | GS06U-11P1J | GS06U-2P1J | GS06U-3P1J | GS06U-4P1J | GS06U-5P1J | GS06U-6P1J | GS06U-8P1J | |
| OUTPUT | SAFETY MODEL NO. | GS06U-1 | GS06U-1-1 | GS06U-2 | GS06U-3 | GS06U-4 | GS06U-5 | GS06U-6 | GS06U-8 |
| DC VOLTAGE | 5V | 7.5V | 9V | 12V | 15V | 18V | 24V | 48V | |
| RATED CURRENT | 1.00A | 0.8A | 0.66A | 0.5A | 0.4A | 0.33A | 0.25A | 0.125A | |
| CURRENT RANGE | 0.01-1.00A | 0.01-0.8A | 0.01-0.66A | 0.01-0.5A | 0.01-0.4A | 0.01-0.33A | 0.01-0.25A | 0.01-0.125A | |
| RATED POWER | 5W | 6W | 6W | 6W | 6W | 6W | 6W | 6W | |
| RIPPLE & NOISE (max.) | 50mVp-p | 80mVp-p | 80mVp-p | 100mVp-p | 120mVp-p | 150mVp-p | 180mVp-p | 200mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | ±5.0% | ±5.0% | ±5.0% | ±5.0% | ±5.0% | ±5.0% | ±5.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±5.0% | ±5.0% | ±5.0% | ±5.0% | ±5.0% | ±5.0% | ±5.0% | ±5.0% | |
| SETUP, RISE, HOLD UP TIME | 1500ms, 50ms, 5ms at full load | ||||||||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | |||||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||||
| EFFICIENCY (Typ.) | 75.00% | 80.00% | 79.50% | 79.50% | 79.50% | 81.00% | 81.00% | 83.00% | |
| AC CURRENT | 0.2A / 100VAC | ||||||||
| INRUSH CURRENT (max.) | Cold start 30A/ 115VAC 50A / 230VAC | ||||||||
| LEAKAGE CURRENT(max.) | 0.25mA / 240VAC | ||||||||
| PROTECTION | OVERLOAD | >105% rated output power for 5V ; >110% rated output power for 7.5 ~ 48V | |||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||||
| OVER VOLTAGE | >120% rated output voltage | ||||||||
| Protection type : Clamp by zener diode | |||||||||
| ENVIRONMENT | WORKING TEMP. | 0 ~ +50℃ (Refer to "Derating Curve") | |||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH non-condensing | ||||||||
| TEMP. COEFFICIENT | ±0.03% / ℃ (0 ~ 40℃) | ||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 NO. 62368-1, EAC TP TC 004 approved | |||||||
| WITHSTAND VOLTAGE | I/P-O/P:4242VDC | ||||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||||
| Conducted emission | FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) | Class B | |||||||
| Radiated emission | FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) | Class B | |||||||
| Others | Life | 500Khrs min. MIL-HDBK-217F(25℃) | |||||||
| DIMENSION | 32*66*42.5mm (L*W*H) | ||||||||
| PACKING | 100g ; 110pcs / 12Kg / CARTON | ||||||||
Meanwell GS06U Series Features
l Universal AC input/ Full range
l 2 pole US plug, ClassⅡpower unit
l No load power consumption<0.1 W
l Energy efficiency Level VI
l Comply with EISA 2007/DoE
l Protections: Short circuit/Overload/Over voltage
l Fully enclosed plastic case
l Pass LPS
l Various DC plug quick adapter accessory available
l 2 years warranty
Meanwell GS06U Series Applications
l Consumer electronic devices
l Telecommunication devices
l Office facilities
l Industrial equipment

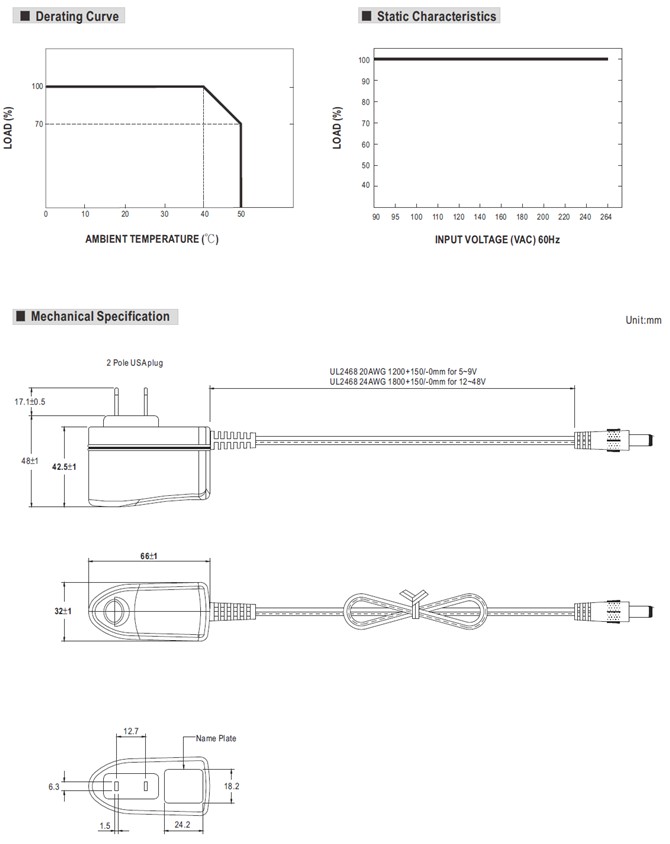

Meanwell GS06U Series Mechanical Diagram
