GS06U-1P1J
10.79
Details

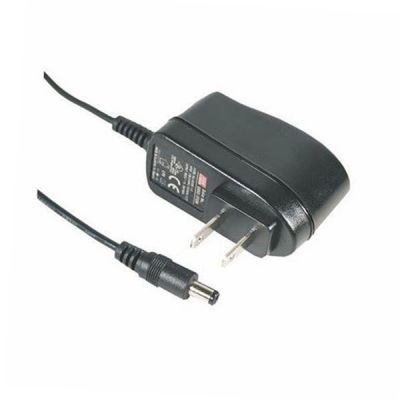

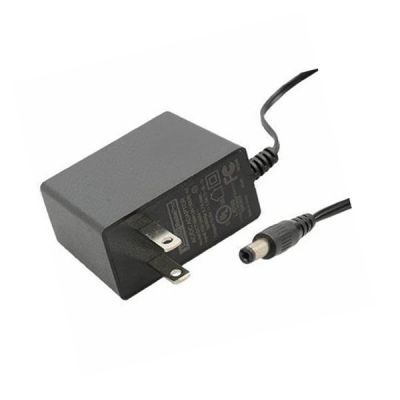

Meanwell GS06U-1P1J is a 6W AC/DC green adaptor with 5V1.00A0.01-1.00A5W50mVp-p. The product features high reliability, single-output and wall-mounted style. It is a classⅡpower unit (no FG) with 2-Pin standard USA AC power plug. At the same time, GS06U-1P1J adopts input range from 90VAC to 264VAC with output voltage 5VDC. So that it could satisfy the demands for various types of consumer electronic devices. Since the efficiency reaches high up to 83% and extremely low no-load power consumption below 0.075W, Meanwell GS06U-1P1J is compliant with USA EISA 2007/DoE. Additionally, the supreme feature allows the adaptor to save energy when itis either under operating mode or standby mode. The unit also utilizes the 94V-0 flame retardant plastic case with double insulation, which effectively prevents electrical shock. Due to its high safety, high reliability and high quality, Meanwell GSO6U-1P1J serves as a high performance power supply solution for various types of consumer electronic devices.
Meanwell GS06U-1P1J Encoding
| GS | Series Name |
| 6 | Rated Wattage |
| U | US 2 pin AC Plug |
| 1 | Output Voltage |
| P1J DC plug type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| Other Options available by customer requested |
Meanwell GS06U-1P1J Specifications
| ORDER NO. | GS06U-1P1J | |
| OUTPUT | SAFETY MODEL NO. | GS06U-1 |
| DC VOLTAGE | 5V | |
| RATED CURRENT | 1.00A | |
| CURRENT RANGE | 0.01-1.00A | |
| RATED POWER | 5W | |
| RIPPLE & NOISE (max.) | 50mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±5.0% | |
| SETUP, RISE, HOLD UP TIME | 1500ms, 50ms, 5ms at full load | |
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 75.00% | |
| AC CURRENT | 0.2A / 100VAC | |
| INRUSH CURRENT (max.) | Cold start 30A/ 115VAC 50A / 230VAC | |
| LEAKAGE CURRENT(max.) | 0.25mA / 240VAC | |
| PROTECTION | OVERLOAD | >105% rated output power for 5V ; >110% rated output power for 7.5 ~ 48V |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | >120% rated output voltage | |
| Protection type : Clamp by zener diode | ||
| ENVIRONMENT | WORKING TEMP. | 0 ~ +50℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% / ℃ (0 ~ 40℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 NO. 62368-1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:4242VDC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| Others | Life | 500Khrs min. MIL-HDBK-217F(25℃) |
| DIMENSION | 32*66*42.5mm (L*W*H) | |
| PACKING | 100g ; 110pcs / 12Kg / CARTON | |
Meanwell GS06U-1P1J Features
l Pass LPS
l Universal AC input/ Full range
l 2 pole US plug, ClassⅡpower unit
l No load power consumption<0.1 W
l Energy efficiency Level VI
l Comply with EISA 2007/DoE
l Protections: Short circuit/Overload/Over voltage
l Fully enclosed plastic case
l Various DC plug quick adapter accessory available
l 2 years warranty
Meanwell GS06U-1P1J Applications
l Consumer electronic devices
l Telecommunication devices
l Office facilities
l Industrial equipment
Meanwell GS06U-1P1J Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
