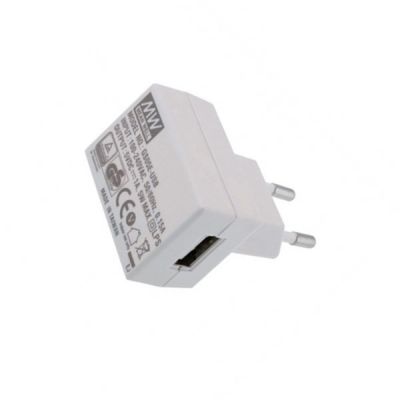

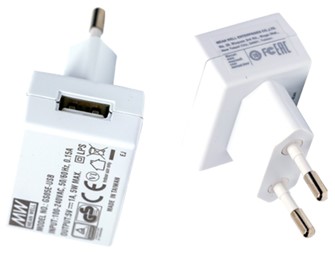

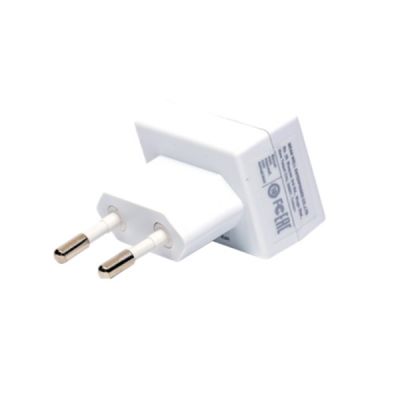

GS05E-USB
9.7
Details
Meanwell GS05E-USB Product Specifications
| ORDER NO. | GS05E-USB | |
| OUTPUT | SAFETY MODEL NO. | GS05E |
| DC VOLTAGE | 5V | |
| RATED CURRENT | 1.00A | |
| CURRENT RANGE | 0-1.00A | |
| RATED POWER | 5W | |
| RIPPLE & NOISE (max.) | 90mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±5.0% | |
| SETUP, RISE, HOLD UP TIME | 1500ms, 20ms, 5ms at full load | |
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 74.50% | |
| AC CURRENT | 0.2A / 100VAC | |
| INRUSH CURRENT (max.) | 30A / 230VAC | |
| LEAKAGE CURRENT(max.) | 0.25mA / 240VAC | |
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 105 ~ 200% rated output voltage, detect on main control IC | |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +50℃(Refer to "Derating curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03% / ℃ (0 ~ 40℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | TUV BS EN/EN62368-1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:4242VDC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 Class B, BS EN/EN61000-3-2,3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, light industry level, criteria A, EAC TP TC 020 | |
| Others | MTBF | 1100Khrs min. MIL-HDBK-217F(25℃) |
| DIMENSION | 41.54*30.5*20mm (L*W*H) | |
| PACKING | 45g ; 78pcs / 4.6Kg / CARTON | |
| CONNECTOR | PLUG | USB Type A |
Meanwell GS05E-USB Features
l Universal AC input/Full range
l 2 pole Euro plug
l No load power consumption <0.075W
l Energy efficiency Level VI
l Comply with EU ErP and meet CoC version 5
l Compact size
l Class II power (without earth pin)
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Pass LPS
l 100% full load burn-in test
l Fully enclosed plastic case
l Low cost, high reliability
l 2 years warranty

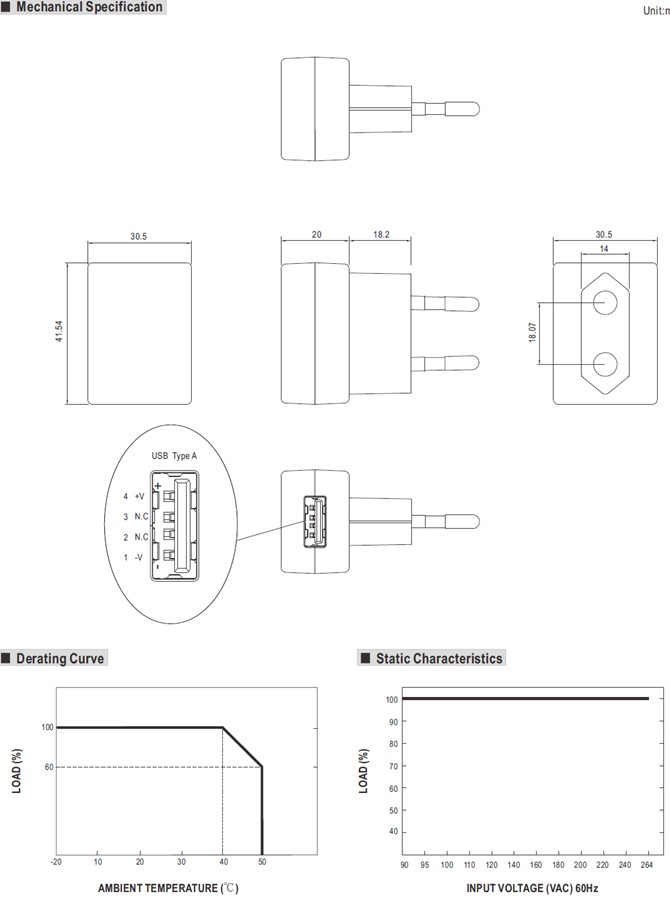

Meanwell GS05E-USB Mechanical Diagram
