GP50A
8.01
Details

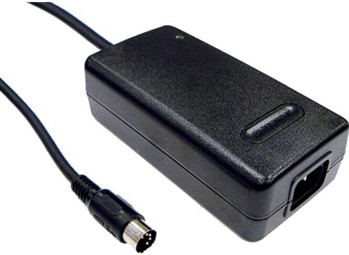

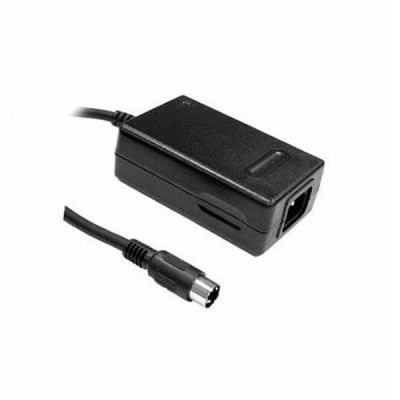

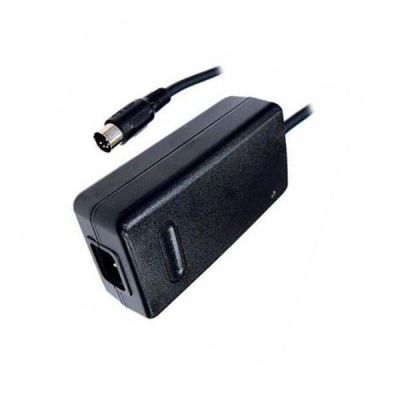

Meanwell GP50A Series is a 50W AC-DC green Industrial Adaptor. The product features triple-output and desktop type. It complies with mandatory energy saving standard USA EISA 2007/DoE (Level VI). GP50A adopts Class I design and utilizes standard inlet IEC320-C14. At the same time, the series is designed with FG and uses the 94V-0 flame retardant plastic enclosure, which can effectively prevent electric shock hazards. Meanwell GP50A operates from 90~264V AC and offers three models with the output voltage sets +5V/+12V/-5V, +5V/+12V/-12V, +5V/+15V/-15V and can option +16V/+48V/-16V. In addition, its supreme advantages includes less-than-0.3W no load power consumption, the capability of working under -20~+70℃ ambient temperature, complete protection functions and three-year warranty. Apart from them, the item meets with the international safety certification such as CB, TUV, UL, CE and FCC. Considering its high safety, high reliability and high quality, Meanwell GP50A Series serves as a high performance power supply solution for various types of consumer electronic devices.
Meanwell GP50A Series Encoding
| GP | Series Name |
| 50 | Rated Wattage |
| A | IEC320 C14 3pin AC input |
| 13A | Output Voltage |
| R1B DC plug type | R1B: Plug for standard model power DIN 5 pin |
| Other Options available by customer requested |
Meanwell GP50A Series Model Specifications
| ORDER NO. | GP50A13A-R1B | GP50A13D-R1B | GP50A14E-R1B | GP50A58F-R1B (option) | |||||||||
| OUTPUT | SAFETY MODEL NO. | GP50A13A | GP50A13D | GP50A14E | GP50A58F | ||||||||
| DC VOLTAGE | 5V | 12V | -5V | 5V | 12V | -12V | 5V | 15V | -15V | 16V | 48V | -16V | |
| RATED CURRENT | 4A | 2A | 0.5A | 4A | 2A | 0.5A | 4A | 1.5A | 0.5A | 2A | 0.15A | 2A | |
| CURRENT RANGE | 0-4.0A | 0.3-2.0A | 0.1-0.5A | 0-4.0A | 0.3-2.0A | 0.1-0.5A | 0-4.0A | 0.3-1.5A | 0.1-0.5A | 0.4-2.0A | 30mA-150mA | 0.4-2.0A | |
| RATED POWER | 46.5W | 50W | 50W | 71W | |||||||||
| RIPPLE & NOISE (max.) | 50mVp-p | 100mVp-p | 100mVp-p | 50mVp-p | 150mVp-p | 100mVp-p | 50mVp-p | 150mVp-p | 150mVp-p | 180mVp-p | 180mVp-p | 180mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | ±3.0% | -5.0-+10% | ±5.0% | ±3.0% | -5.0-+8% | ±5.0% | ±3.0% | -5.0-+15% | ±5.0% | -5.0-+10% | -5.0-+10% | |
| LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LOAD REGULATION | ±5.0% | ±3.0% | ±5.0% | ±5.0% | ±3.0% | ±5.0% | ±5.0% | ±3.0% | ±5.0% | ±5.0% | ±5.0% | ±5.0% | |
| SETUP, RISE, HOLD UP TIME | 1500ms, 50ms, 20ms / 230VAC 2500ms, 50ms, 16ms / 115VAC at full load | ||||||||||||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 135~ 370VDC | |||||||||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||||||||
| EFFICIENCY (Typ.) | 83.50% | 84.00% | 84.50% | 86.00% | |||||||||
| AC CURRENT | 1.6A / 100VAC 0.8A / 230VAC | ||||||||||||
| INRUSH CURRENT (max.) | Cold start 35A/115VAC 65A / 230VAC | ||||||||||||
| LEAKAGE CURRENT(max.) | 0.75mA / 240VAC | ||||||||||||
| PROTECTION | OVERLOAD | 120 ~ 200% rated output power | |||||||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||||||||
| OVER VOLTAGE | Protection type : Clamp by zener diode, output short | ||||||||||||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃ (Refer to "Derating Curve") | |||||||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||||||||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH non-condensing | ||||||||||||
| TEMP. COEFFICIENT | ±0.03% / ℃ (-20 ~ 40℃) | ||||||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||||||||
| SAFETY & EMC | SAFETY STANDARDS | IEC62368-1, UL62368-1, CSA22.2, BS EN/EN62368-1(Except for GP50A58F-R1B ), EAC TP TC 004 approved | |||||||||||
| WITHSTAND VOLTAGE | I/P-O/P:4242VDC , I/P-FG:2121VDC | ||||||||||||
| ISOLATION RESISTANCE | I/P-O/P,I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||||||||
| Conducted emission | BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) | Class B | |||||||||||
| Radiated emission | BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) | Class B | |||||||||||
| Harmonic current | BS EN/EN61000-3-2 | Class A | |||||||||||
| Voltage flicker | BS EN/EN61000-3-3 | ----- | |||||||||||
| EMC IMMUNITY | Parameter | Standard | Test Level | ||||||||||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air; Level 2, 4KV contact | |||||||||||
| RF field susceptibility | BS EN/EN61000-4-3 | Level 2, 3V/m | |||||||||||
| EFT bursts | BS EN/EN61000-4-4 | Level 2, 1KV | |||||||||||
| Surge susceptibility | BS EN/EN61000-4-5 | Level 3, 1KV/L-N, 2KV/L,N-PE | |||||||||||
| Conducted susceptibility | BS EN/EN61000-4-6 | Level 2, 3V | |||||||||||
| Voltage dips , interruption | BS EN/EN61000-4-11 | ＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods |
|||||||||||
| Others | MTBF | 280K hrs min. MIL-HDBK-217F (25℃) | |||||||||||
| DIMENSION | 146*75.5*43mm (L*W*H) | ||||||||||||
| PACKING | 0.55kg; 36pcs / 21kg / CARTON | ||||||||||||
Meanwell GP50A Series Features
l Universal AC input/Full range
l 3 pole AC inlet lEC320-C14, Class I power unit
l No load power consumption <0.3W
l Energy efficiency level VI
l Comply with EISA 2007/DoE
l Protections: Short circuit/Overload/Over voltage
l Fully enclosed plastic case
l -20 ~+70℃ working temperature
l LED indicator for power on
l Dual output available (optional)
l ±16V/+48V also available for video system (optional, order NO.: GP50A58F-R1B)
l 3 years warranty
Meanwell GP50A Series Applications
l Office facilities
l Industrial equipment
l Consumer electronic devices
l Telecommunication devices

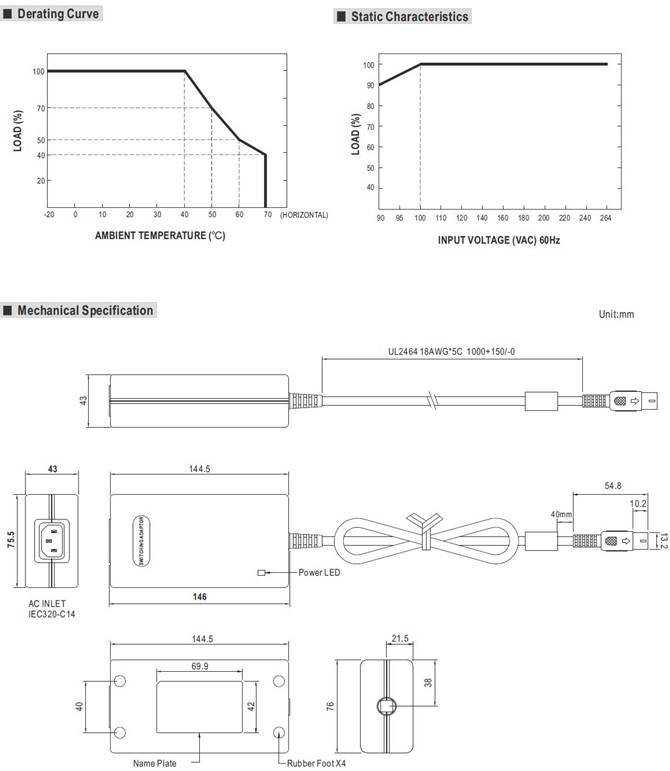

Meanwell GP50A Series Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
