GP25B58F-R1B
8.26
Details

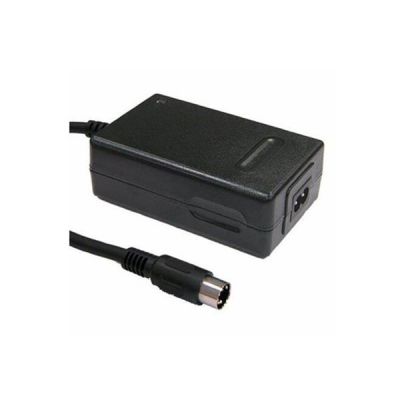

Meanwell GP25B58F is a 25W green industrial adaptor with 16V48V-16V1.05A0.087A1.05A0.2-1.05A17mA-87mA0.2-1.05A. The item features triple-output and desktop type, and complies with mandatory energy saving standard USA EISA 2007/DoE (Level VI). GP25B58F adopts ClassⅡdesign and utilizes the standard inlet IEC320-C8, At the same time, it is designed without FG and uses the 94V-0 flame retardant plastic enclosure, which can effectively prevent electric shock hazards. Moreover, Meanwell GP25B58F works from 90~264VAC and offers the model with output voltage sets +16V/+48V/-16V. Additionally, its supreme advantages includes less-than -0.3W no load power consumption, the capability of operating under -20~+70℃ ambient temperature, complete protection functions and three-year warranty. The item also meets with the international safety certification such as CB, TUV, UL, CE and FCC. In view of its high safety, high reliability and high quality, Meanwell GP25B58F serves as a high performance power supply solution for various types of consumer electronic devices.
Meanwell GP25B58F-R1B Encoding
| GP | Series Name |
| 25 | Rated Wattage |
| B | IEC320 C14 3pin AC input |
| 58F | Output Voltage |
| R1B DC plug type | R1B: Plug for standard model power DIN 5 pin |
| Other Options available by customer requested |
Meanwell GP25B58F-R1B Specifications
| ORDER NO. | GP25B58F-R1B | |||
| OUTPUT | SAFETY MODEL NO. | GP25B58F | ||
| DC VOLTAGE | 16V | 48V | -16V | |
| RATED CURRENT | 1.05A | 0.087A | 1.05A | |
| CURRENT RANGE | 0.2-1.05A | 17mA-87mA | 0.2-1.05A | |
| RATED POWER | 37.77W | |||
| RIPPLE & NOISE (max.) | 200mVp-p | 200mVp-p | 200mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | ±5.0% | -5.0-+10% | |
| LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | |
| LOAD REGULATION | ±5.0% | ±5.0% | ±5.0% | |
| SETUP, RISE, HOLD UP TIME | 800ms, 50ms, 20ms / 230VAC 1200ms, 50ms, 16ms / 115VAC at full load | |||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 135~ 370VDC | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| EFFICIENCY (Typ.) | 85.00% | |||
| AC CURRENT | 0.8A / 100VAC 0.4A / 230VAC | |||
| INRUSH CURRENT (max.) | Cold start 30A / 115VAC 60A / 230VAC | |||
| LEAKAGE CURRENT(max.) | 0.75mA / 240VAC | |||
| PROTECTION | OVERLOAD | 110 ~ 160% rated output power | ||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||
| OVER VOLTAGE | Protection type : Clamp by zener diode(5V only), output short | |||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃ (Refer to "Derating Curve") | ||
| WORKING HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH non-condensing | |||
| TEMP. COEFFICIENT | ±0.03% / ℃ (-20 ~ 40℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||
| SAFETY & EMC | SAFETY STANDARDS | IEC62368-1, UL62368-1, CSA22.2, BS EN/EN62368-1(Except for GP25B58F-R1B ), EAC TP TC 004 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P:4242VDC , I/P-FG:2121VDC | |||
| ISOLATION RESISTANCE | I/P-O/P,I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| Others | MTBF | 620K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 107.5*67*36mm (L*W*H) | |||
| PACKING | 0.3kg; 54pcs / 20kg / CARTON | |||
Meanwell GP25B58F-R1B Features
l 3 years warranty
l Universal AC input/Full range
l Energy efficiency level VI
l Comply with EISA 2007/DoE
l Fully enclosed plastic case
l -20 ~+70℃ working temperature
l LED indicator for power on
l Dual output available (optional)
l No load power consumption < 0.3W
l Protections: Short circuit/Overload/Over voltage
l 2 pole AC inlet IEC320-C8, ClassⅡpower unit
l ±16V/+48V also available for video system (optional, order NO. : GP25B58F-R1B)
Meanwell GP25B58F-R1B Applications
l Office facilities
l Industrial equipment
l Consumer electronic devices
l Telecommunication devices
Meanwell GP25B58F-R1B Mechanical Diagram
