GP25A13A-R1B
7.03
Details

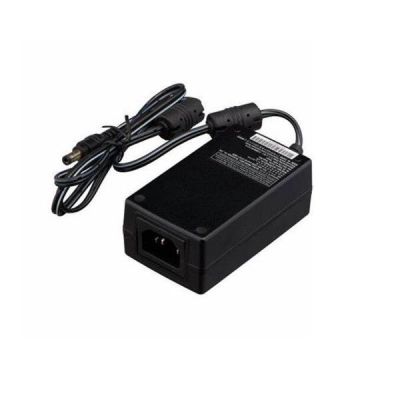

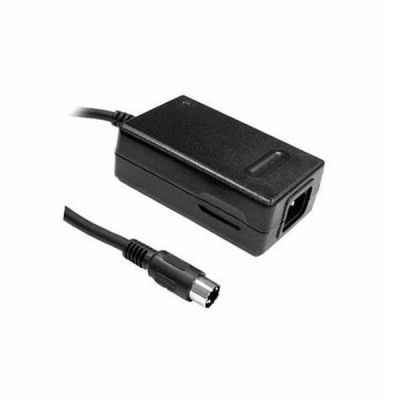

Meanwell GP25A13A is a 25W AC-DC Industrial Adaptor with 5V12V-5V2.5A1.2A0.3A0.5-2.5A0.2-1.2A0.1-0.3A. The product highlights triple-output and desktop type. It complies with mandatory energy saving standard USA EISA 2007/DoE (Level VI). Meanwhile, GP25A13A adopts Class I design and utilizes standard inlet IEC320-C14, it is designed with FG and uses 94V-0 flame retardant plastic enclosure, which can effectively prevent electric shock hazards. In addition, Meanwell GP25A13A works from 90~ 264VAC and offers the model with output voltage sets +5V/+12V/-5V. What’s more, its supreme advantages includes less-than-0.3W no load power consumption, the capability of operating under -20~+70℃ ambient temperature, complete protection functions and three-year warranty. The model also confirms with the international safety certification such as CB, TUV, UL, CE and FCC. Due to its high safety, high reliability and high quality, Meanwell GP25A13A serves as a high performance power supply solution for various types of consumer electronic devices
Meanwell GP25A13A-R1B Encoding
| GP | Series Name |
| 25 | Rated Wattage |
| A | IEC320 C14 3pin AC input |
| 13A | Output Voltage |
| R1B DC plug type | R1B: Plug for standard model power DIN 5 pin |
| Other Options available by customer requested |
Meanwell GP25A13A-R1B Specifications
| ORDER NO. | GP25A13A-R1B | |||
| OUTPUT | SAFETY MODEL NO. | GP25A13A | ||
| DC VOLTAGE | 5V | 12V | -5V | |
| RATED CURRENT | 2.5A | 1.2A | 0.3A | |
| CURRENT RANGE | 0.5-2.5A | 0.2-1.2A | 0.1-0.3A | |
| RATED POWER | 28.5W | |||
| RIPPLE & NOISE (max.) | 50mVp-p | 100mVp-p | 50mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | -5.0-+10% | ±3.0% | |
| LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | |
| LOAD REGULATION | ±5.0% | ±5.0% | ±3.0% | |
| SETUP, RISE, HOLD UP TIME | 800ms, 50ms, 20ms / 230VAC 1200ms, 50ms, 16ms / 115VAC at full load | |||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 135~ 370VDC | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| EFFICIENCY (Typ.) | 80.00% | |||
| AC CURRENT | 0.8A / 100VAC 0.4A / 230VAC | |||
| INRUSH CURRENT (max.) | Cold start 30A / 115VAC 60A / 230VAC | |||
| LEAKAGE CURRENT(max.) | 0.75mA / 240VAC | |||
| PROTECTION | OVERLOAD | 110 ~ 160% rated output power | ||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||
| OVER VOLTAGE | Protection type : Clamp by zener diode(5V only), output short | |||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃ (Refer to "Derating Curve") | ||
| WORKING HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH non-condensing | |||
| TEMP. COEFFICIENT | ±0.03% / ℃ (-20 ~ 40℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||
| SAFETY & EMC | SAFETY STANDARDS | IEC62368-1, UL62368-1, CSA22.2, BS EN/EN62368-1(Except for GP25A58F-R1B ), EAC TP TC 004 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P:4242VDC , I/P-FG:2121VDC | |||
| ISOLATION RESISTANCE | I/P-O/P,I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| Others | MTBF | 620K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 107.5*67*36mm (L*W*H) | |||
| PACKING | 0.3kg; 54pcs / 20kg / CARTON | |||
Meanwell GP25A13A-R1B Features
l 3 years warranty
l Universal AC input/Full range
l 3 pole AC inlet lEC320-C14, Class I power unit
l No load power consumption < 0.3W
l Energy efficiency level VI
l Comply with EISA 2007/DoE
l Protections: Short circuit/Overload/Over voltage
l Fully enclosed plastic case
l -20 ~ +70℃ working temperature
l LED indicator for power on
l Dual output available (optional)
l ±16V /+48V also available for video system
Meanwell GP25A13A-R1B Applications
l Office facilities
l Industrial equipment
l Consumer electronic devices
l Telecommunication devices
Meanwell GP25A13A-R1B Mechanical Diagram
