Meanwell 2W SIP Package IGBT Sic Gate Driver Power DC-DC Converter with 12V43mA217mA+18V/-9V+9~90mA/-5~50mA

- +
Availability:In stock
SKU Meanwell GD2-121809
Brand Meanwell
Details

Meanwell GD2-121809 is 2W isolated and unregulated DC-DC converter with 12V43mA217mA+18V/-9V+9~90mA/-5~50mA. The item stands out with module type and SIP7 package. Meanwhile, the main features are as following: international standard pins, high efficiency up to 82%, wide working temperature range -40~+90℃ ,6.2KVdc or 4.3KVac I/P -O/P high isolation voltage, short circuit protection, etc. Furthermore, GD2 Series account for different input voltage 12V/15V/24V±10%, and a variety of different output positive and negative voltages. Due to its competitive price, high reliability, and excellent quality, Meanwell GD2-121809 is suitable for ultra low leakage current, industrial control, telecommunication field, Motor drivers and solar inverters, distributed power architecture, and so on.

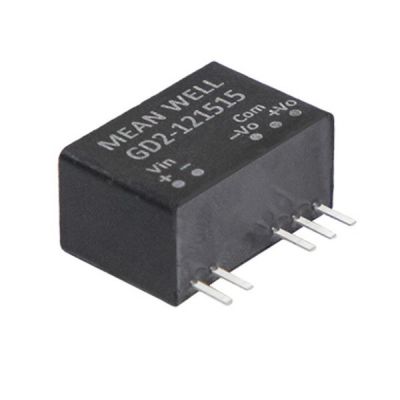

GD2-121809 Meanwell Power Supply 2W IGBT Sic Gate Driver Power DC-DC Converter SIP Package short circuit YCICT

Meanwell GD2-121809 Encoding

GD Series Name
2 Rated Wattage
12 Input Voltage (12: 10.8-13.2Vdc, 15: 13.5-16.5Vdc, 24: 21.6-26.4Vdc)
12 Output Voltage (5/12/15Vdc, ±5V/±12V/±15Vdc)
18 Output positive voltage (15/17/18/20Vdc)
09 Output negative voltage (-3/-3.5/- 5/-9/-15Vdc)

Meanwell GD2-121809 Specifications

ORDER NO. INPUT OUTPUT EFFICIENCY (TYP.) CAPACITOR LOAD (MAX)
INPUT VOLTAGE (RANGE) INPUT CURRENT OUTPUT VOLTAGE OUTPUT CURRENT
NO LOAD FULL LOAD
GD2-121503 Normal 12V (10.8~13.2V) 43mA 217mA +15V/-3V +11~110mA/-10~100mA 79.00% 100μF
GD2-121505 43mA 217mA +15V/-5V +10~100mA/-10~100mA 80.00% 100μF
GD2-121805 43mA 217mA +18V/-5V +9~90mA/-9~90mA 81.00% 100μF
GD2-12203.5 43mA 217mA +20V/-3.5V +9~90mA/-8~80mA 80.00% 100μF
GD2-122005 43mA 217mA + 20V/-5V +8~80mA/-8~80mA 79.00% 100μF
GD2-121509 43mA 217mA +15V/-9V +10~100mA/-6~60mA 82.00% 100μF
GD2-121709 43mA 217mA +17V/-9V +9~90mA/-5~50mA 79.00% 100μF
GD2-121809 43mA 217mA +18V/-9V +9~90mA/-5~50mA 79.00% 100μF
GD2-121515 43mA 217mA +15V/-15V +7~67mA/-7~67mA 79.00% 100μF
SPECIFICATION
INPUT VOLTAGE RANGE 12: 10.8~13.2Vdc, 15: 13.5~16.5Vdc, 24: 21.6~26.4Vdc
FILTER Internal capacitor
PROTECTION Fuse recommended. 500mA Slow-Blow Type for all models
START UP TIME 100ms max.
OUTPUT VOLTAGE ACCURACY ±5.0%; +20Vo for -8%~+2%
RATED POWER 2W
RIPPLE & NOISE 50mVp-p
LINE REGULATION 1.2% for 1% input variation
LOAD REGULATION ±5%
SWITCHING FREQUENCY (Typ.) 20~130KHz 100% load at Normal Vin
PROTECTION SHORT CIRCUIT Protection type : Continuous, automatic recovery
ENVIRONMENT COOLING Free-air convection
WORKING TEMP. -40 ~ +90 (Refer to "Derating Curve")
CASE TEMPERATURE +115 max.
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -55 ~ +125, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT 0.02%/ (0~90)
SOLDERING TEMPERATURE 1.5mm from case of 1~3sec./260 max.
VIBRATION 10~500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS UL62368-1, EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE I/P-O/P:6.2KVdc (60 sec.) or I/P-O/P:7.2KVdc (2 sec.)
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
ISOLATION CAPACITANCE (Typ.) 5pF
EMC EMISSION Parameter Standard Test Level
Conducted BS EN/EN55032 Class A/B with external components
Radiated BS EN/EN55032 Class A/B with external components
EMC IMMUNITY Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 4, ±8KV contact, Level 3, ±15KV air
Radiated Susceptibility BS EN/EN61000-4-3 Level 3, 10V/m
EFT/Burest BS EN/EN61000-4-4 Level 3, 2KV
Surge BS EN/EN61000-4-5 Level 3, 10Vrms
Conducted BS EN/EN61000-4-6 Level 5, 100A/m
Magnetic Field BS EN/EN61000-4-8 Level 4, 2KV L-N
OTHERS MTBF 13980Khrs MIL-HDBK-217F (25)
DIMENSION 19.5*9.8*12.5mm
CASE MATERIAL Non-Conductive black plastic (UL 94V-0 rated)
PACKING 4g; 25pcs/per tube, 1875pcs/75 tube/per carton

Meanwell GD2-121809 Features

l  Low cost

l  Operating temperature range -40~+90℃

l  SIP7 package with international standard pinout

l  Performance optimized for IGBT/SiC

l  Protections: Short circuit (Continuous)

l  6.2KVdc or 4.3KV ac high I/O isolation

l  Bipolar asymmetric unregulated output

l  Low coupling isolation capacitance (Cio)

l  3 years warranty

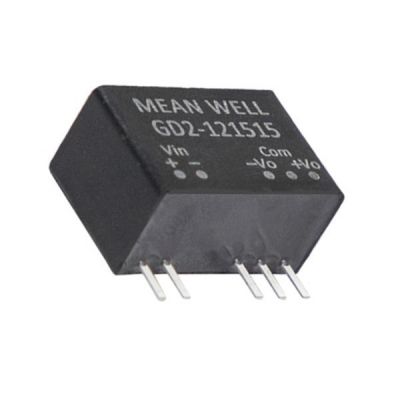

GD2-121809 Meanwell Power Supply 2W IGBT Sic Gate Driver Power DC-DC Converter SIP Package short circuit low cost YCICT

Meanwell GD2-121809 Applications

l  Server telecom/Datacom system

l  Wireless network

l  Industrial control facility

l  Industrial robotics

l  Motor drivers

l  Solar inverters

l  Induction Heating

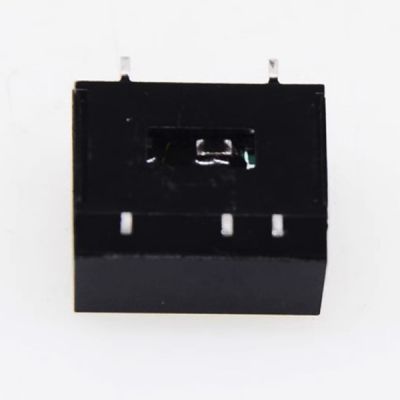

GD2-121809 Meanwell Power Supply 2W IGBT Sic Gate Driver Power DC-DC Converter SIP 12V short circuit low cost YCICT

Meanwell GD2-121809 Mechanical Diagram

GD2-121809 Meanwell Power Supply 2W IGBT Sic Gate Driver Power DC-DC Converter 12V short circuit low cost YCICT
