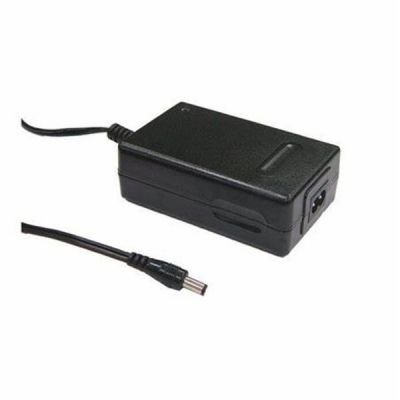

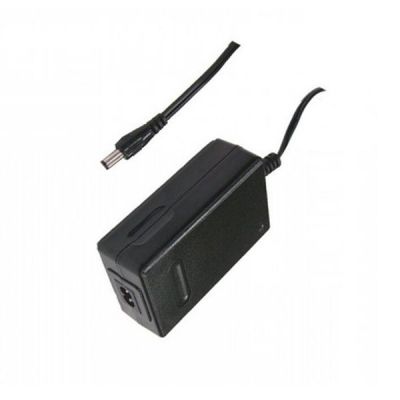

Meanwell GC30B-5P1J Specifications
| Model | GC30B-5P1J | |
| OUTPUT | SAFETY MODEL NO | GC30B-5 |
| DC VOLTAGE SET AT | 16.8V | |
| RATED CURRENT | 1.6A | |
| CURRENT RANGE | 0-1.6A | |
| RATED POWER | 27W | |
| RIPPLE & NOISE (max.) | 100mVp-p | |
| VOLTAGE ADJ. RANGE | 25.65-29.7V | |
| CHARGING VOLTAGE RANGE | 16-17V | |
| LINE REGULATION | ±0.5% | |
| LED INDICATOR | Green LED ON < 100mA, Red LED ON > 250mA | |
| SETUP, RISE, HOLD UP TIME | 200ms, 50ms, 16ms at full load | |
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 78.00% | |
| AC CURRENT (Typ.) | 0.7A /100VAC; 0.35A/230VAC | |
| INRUSH CURRENT (max.) | 40A/230VAC | |
| LEAKAGE CURRENT(max.) | 0.25mA /240VAC | |
| PROTECTION | OVERLOAD | 90 ~ 110% Constant current mode and over 300% pulsing mode |
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 110 ~ 135% rated output voltage | |
| Protection type : Clamp by zener diode | ||
| OVER TEMPERATURE | IC1_Tj > 130℃ | |
| Protection type : Shut down o/p voltage, recovers automatically after temperature goes down | ||
| ENVIRONMENT | WORKING TEMP | 0 ~ +50℃ (Refer to output load derating curve) |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03% / ℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY&EMC | SAFETY STANDARDS | UL62368-1, CSA22.2, BS EN/EN62368-1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55014-1 class B, FCC part 15 Class B, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,11, light industry level, criteria A, EAC TP TC 020 | |
| Others | DIMENSION | 108*67*36mm (L*W*H) |
| PACKING | 309g; 54pcs / 19kg / CARTON | |
| CONNECTOR | PLUG | Standard type P1J: 2.1ψ * 5.5ψ * 11mm, tuning fork type center positive for stock ; Other type available by customer requested |
| CABLE | Standard type 18Awg UL1185 6ft and 4ft for 4.2V~8.4V output only for stock ; Other type available by customer requested | |
Meanwell GC30B-5P1J Features
l High reliability
l 2 years warranty
l Suitable for continue load
l Universal AC input/Full range
l 2 pole AC Inlet IEC320-C8
l Fully enclosed plastic case
l Class II power (without earth pin)
l No load power consumption <1.0W
l For high surge current equipment
l 2 colors LED indicate for charging status
l Constant current and voltage (CC, CV mode)
l Approvals: UL/CUL/TUV/EACI CB/FCC1 CE/UKCA
l Protections: Short circuit/Overload/Over voltage/Over temp
l Charger for lead-acid batteries (flooded, Gel and AGM) and li-ion batteries (lithium iron and lithium manganese)
Meanwell GC30B-5P1J Mechanical Diagram
