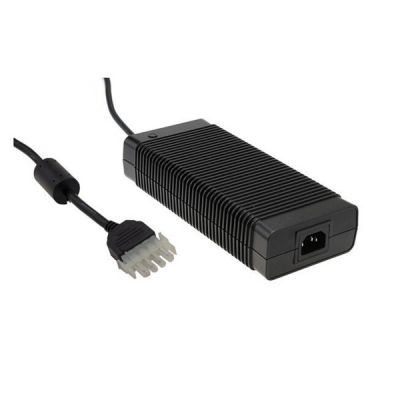

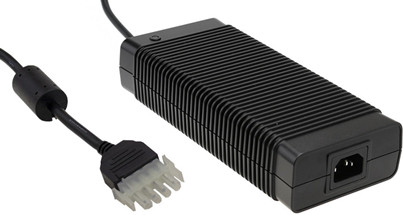

GC-330
48.49
Details
Meanwell GC-330 Series Model Specifications
| ORDER NO. | GC330A36-C4P | GC330A48-C4P | |
| OUTPUT | SAFETY MODEL NO | GC330A36 | GC330A48 |
| DC VOLTAGE (Typ) | 40.8V | 54.4V | |
| RECOMMENDED BATTERY CAPACITY | 20-65Ah | 20-65Ah | |
| PEAK CURRENT(Typ.) | 8A | 6A | |
| CONTINUOS OUTPUT CURRENT (Typ.) | 6.4A | 4.8A | |
| OUTPUT POWER RANGE | 261.1 ~ 326.4W | ||
| LED INDICATOR | Charging(CC) : RED Floating charging(CV) : GREEN | ||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | |
| FREQUENCY RANGE | 47 ~ 63Hz | ||
| POWER FACTOR (Typ.) | PF>0.95 / 230VAC PF>0.98 / 115VAC at full load | ||
| EFFICIENCY (Typ.) | 93.50% | 93.50% | |
| AC CURRENT (Typ.) | 4A / 115VAC 2A / 230VAC | ||
| INRUSH CURRENT (max.) | 120A / 230VAC | ||
| LEAKAGE CURRENT(max.) | 1.5mA / 240VA | ||
| PROTECTION | SHORT CIRCUIT | Protection type : Hiccup mode, recovers automatically after fault condition is removed | |
| OVER VOLTAGE | 105 ~ 135% rated output voltage | ||
| Protection type : Shut down o/p voltage, re-power on to recover | |||
| OVER TEMPERATURE | 100℃±10℃(RTH2) | ||
| Protection type : Shut down o/p voltage, re-power on to recover | |||
| ENVIRONMENT | WORKING TEMP | -30 ~ +60℃(Refer to "Derating Curve") | |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | ||
| TEMP. COEFFICIENT | ±0.03% / ℃ (0 ~ 50℃) | ||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||
| SAFETY&EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | |
| WITHSTAND VOLTAGE | I/P-O/P: 3KVAC | ||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||
| EMC EMISSION | Compliance to BS EN/EN55032 class B, BS EN/EN61000-3-2,3, FCC PART 15 / CISPR22 class B, CAN ICES-3(B)-NMB-(B), EAC TP TC 020 | ||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, light industry level, EAC TP TC 020 | ||
| Others | MTBF | 1624.8K hrs min. Telcordia SR-332 (Bellcore) ; 209.5K hrs min. MIL-HDBK-217F (25℃) | |
| DIMENSION | 220*95*46mm (L*W*H) | ||
| PACKING | 1.25Kg; 12pcs/16Kg/1.09CUFT | ||
Meanwell GC-330 Series Features
l Charger for lead-acid batteries (flooded, Gel and AGM) and Li-ion batteries (lithium iron and lithium manganese)
l 2 stage charging characteristic
l Universal AC input/Full range
l Built-in active PFC function, PF>0.95
l 3 pole AC inlet IEC320-C14
l Class I power (with earth pin)
l Protections: Short circuit/Over voltage/Over temperature
l Fanless design, cooling by free air convection
l Fully enclosed plastic case
l No load power consumption<1 W
l 2 color LED indicator for charging status
l Approvals: UL/CUL/TUV/EAC/CB/FCC/CE/UKCA
l 2 years warranty

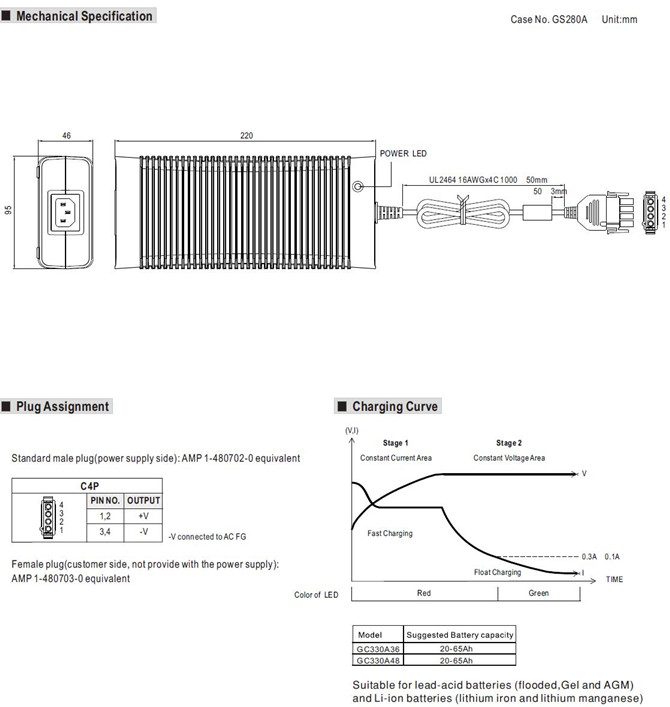

Meanwell GC-330 Series Mechanical Diagram
