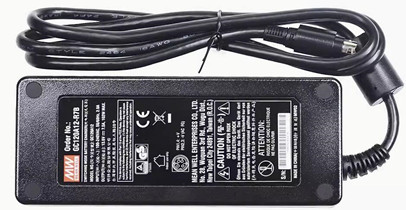

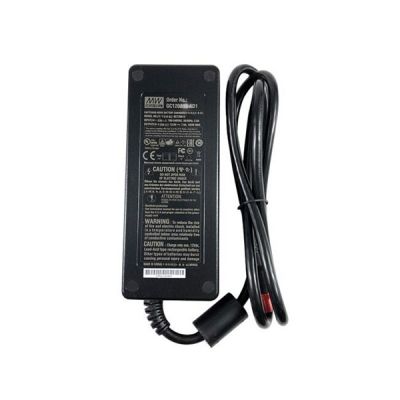

Meanwell GC-120 Series Model Specifications
| ORDER NO. | OUTPUT CONNECTOR | SAFETY | ||
| GC120Axx-R7B (standard model) | 4pin power din | TUV / CB / FCC / CE/ UKCA / EAC | ||
| GC120Axx-AD1 (standard model) | Anderson connector | UL / TUV / CB / FCC / CE / UKCA / EAC | ||
| GC120Axx-□ xx=12,24,48 ; □=R7B,AD1 | ||||
| Model | GC120A12-□ | GC120A24-□ | GC120A48-□ | |
| OUTPUT | SAFETY MODEL NO | GC120A12 | GC120A24 | GC120A48 |
| DC VOLTAGE (Typ) | 13.6V | 27.2V | 54.4V | |
| RECOMMENDED BATTERY CAPACITY | 40-100Ah | 20-65Ah | 10-35Ah | |
| CONTINUOS OUTPUT CURRENT (Typ.) | 7.5A | 4.42A | 2.21A | |
| RATED POWER | 102W | 120.2W | 120.2W | |
| LED INDICATOR | Charging(CC) : RED Floating charging(CV) : GREEN | |||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| POWER FACTOR (Typ.) | PF>0.97 / 230VAC PF>0.99 / 115VAC at full load | |||
| EFFICIENCY (Typ.) | 86.50% | 90.00% | 91.00% | |
| AC CURRENT (Typ.) | 1.4A / 115VAC 0.7A / 230VAC | |||
| INRUSH CURRENT (max.) | 70A / 230VAC | |||
| LEAKAGE CURRENT(max.) | 0.75mA / 240VAC | |||
| PROTECTION | OVERLOAD | 90~110% rated output power | ||
| Protection type : Constant current limiting recovers automatically after fault condition is removed | ||||
| SHORT CIRCUIT | Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||
| OVER VOLTAGE | 14-16.5V | 29-33V | 59-69V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||||
| OVER TEMPERATURE | 100"C + 10"C (RTH2) detect on inside ambient temperature | |||
| Protection type : Shut down o/p voltage, re-power on to recover | ||||
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃(Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.03% /℃(0~50℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||
| SAFETY&EMC | SAFETY STANDARDS | UL1012 (FOR GC120AXX-AD1 Only), TUV BS EN/EN62368-1, PSE J60950-1, EAC TP TC 004 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P: 3KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Compliance to BS EN/EN55032 class B, FCC PART 15 / CISPR22 class B , BS EN/EN61000-3-2,3, ,CAN ICES-3(B)/NMB-3(B EAC TP TC 020 | |||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020 | |||
| Others | MTBF | 2707.9K hrs min. Telcordia SR-332 (Bellcore) ; 400.5K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 167*67*35mm (L*W*H) | |||
| PACKING | 0.62Kg; 20pcs/13.4Kg/0.95CUFT | |||
| CONNECTOR | PLUG | See page 2 ; Other type available by customer requested | ||
| CABLE | See page 2 ; Other type available by customer requested | |||
Meanwell GC-120 Series Features
l Charger for lead-acid batteries (flooded, Gel and AGM) and Li-ion batteries (lithium iron and lithium manganese)
l 2 stage charging characteristic
l Universal AC input/Full range
l Built-in active PFC function, PF>0.97
l No load power consumption<0. 5W
l 3 pole AC inlet IEC320-C14
l Class I power (with earth pin)
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Cooling by free air convection
l Fully enclosed plastic case
l 2 color LED indicator for charging status
l Approvals: UL/PSE/TUV/EAC/CB/FCC/CE/UKCA
l 2 years warranty

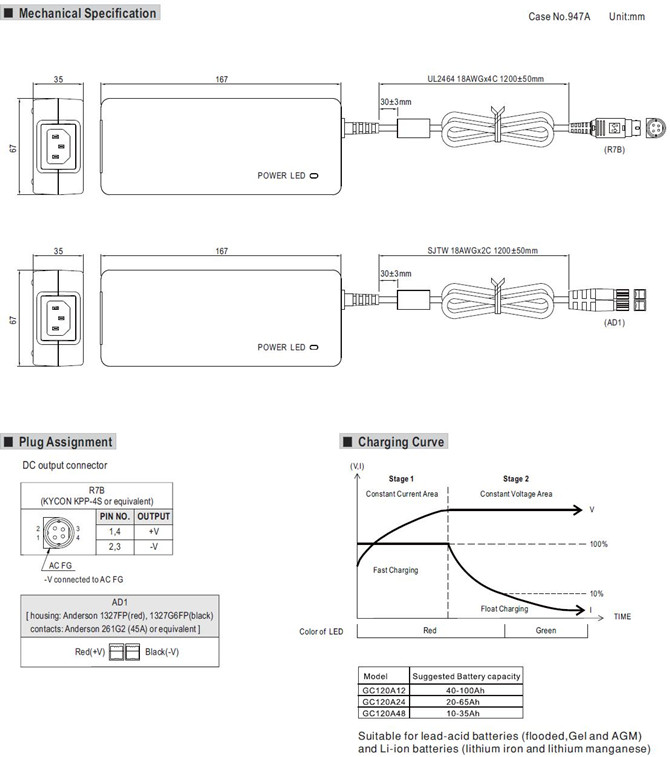

Meanwell GC-120 Series Mechanical Diagram
