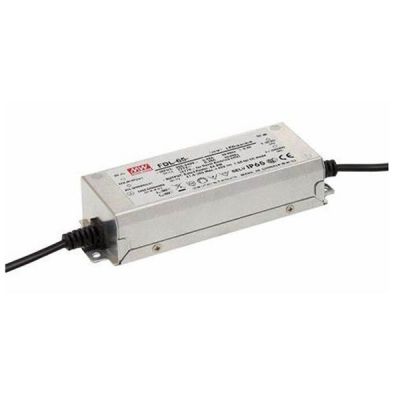

Meanwell 65W Constant Current Mode LED Driver

- +
Availability:In stock
SKU Meanwell FDL-65
Brand Meanwell
Details

Meanwell FDL-65 Series is 65W LED AC/DC LED power supply featuring constant current mode output. The entire series is targeted at but not limited to LED flood lighting applications. At the same time, it could operate from 180~295VAC, and offer models working perfectly for the voltage up to 42V (1550mA model) and 36V (1800mA model). Since the efficiency reaches high up to 90% with the fanless design, FDL-65 is able to work for -40℃~+90℃ case temperature under free air convection. The metal housing design and IP65ingress protection level allow them to fit both indoor and outdoor applications. Apart from them, it is equipped with output current adjustable function. Considering its long lifetime, high efficiency and excellent quality, Meanwell FDL-65 Series serves as an ideally suitable solution for the optimal design flexibility for LED lighting system.

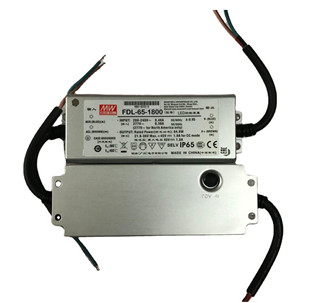

FDL-65 Meanwell LED Driver Power Supply 65w Constant Current FDL-65-1550 FDL-65-1800 metal housing PFC Function YCICT

Meanwell FDL-65 Series Encoding

FDL Series Name
65 Rated Wattage
1800 Rated Output Current (1550/1800mA)

Meanwell FDL-65 Series Model Specifications

Model FDL-65-1550 FDL-65-1800
  RATED CURRENT 1550mA 1800mA
RATED POWER 65.1W 64.8W
CONSTANT CURRENT REGION 25.2-42V 21.6-36V
OPEN CIRCUIT VOLTAGE(max.) 50V 45V
CURRENT ADJ. RANGE 0.77-1.55A 0.9-1.8A
CURRENT ADJ. RANGE ±5.0%
SETUP, RISE TIME 500ms/230VAC
Input VOLTAGE RANGE 180 ~ 295VAC 254 ~ 417VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>=0.95/230VAC, PF>=0.90/277VAC at full load
TOTAL HARMONIC DISTORTION THD< 20%(at load>=60%/230VAC; at load>=75%/277VAC)
EFFICIENCY (Typ.)  90.00% 90.00%
AC CURRENT 0.48A / 230VAC 0.39A/277VAC
INRUSH CURRENT (Typ. ) COLD START 11A(twidth=35μs measured at 50% Ipeak)/230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER 26 units (circuit breaker of type B) / 26 units (circuit breaker of type C) at 230VAC
NO LOAD / STANDBY POWER CONSUMPTION <0.5W
LEAKAGE CURR ENT <0.75mA / 277VAC
PROTECTION SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
OVER TEMPERATURE Shut down output voltage, re-power on to recover
OVER VOLTAGE 46 ~ 56V 40 ~ 48V
Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP Tcase=-40 ~ +90 (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP. Tcase=+90
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 60)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS LVD BS EN/EN61347-1,BS EN/EN61347-2-13 Independent, GB19510.1,GB19510.14,EAC TP TC 004, IP65 approved
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (load>=60%) ; BS EN/EN61000-3-3,
GB17743,GB17625.1,EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity:Line-Earth:
4KV,Line-Line:2KV),EAC TP TC 020
Others MTBF 5409.5K hrs min. Telcordia SR-332 (Bellcore) 596.6Khrs min. MIL-HDBK-217F (25)
DIMENSION 151*53*31.5mm (L*W*H)
PACKING 0.441Kg; 24pcs / 11.6Kg / 0.73CUFT

Meanwell FDL-65 Series Features

l  Constant Current mode output

l  Metal housing design

l  Built-in active PFC function

l  No load power consumption <0.5 W

l  IP65 rating for indoor or outdoor installations

l  Output current adjustable via potentiometer

l  3 years warranty

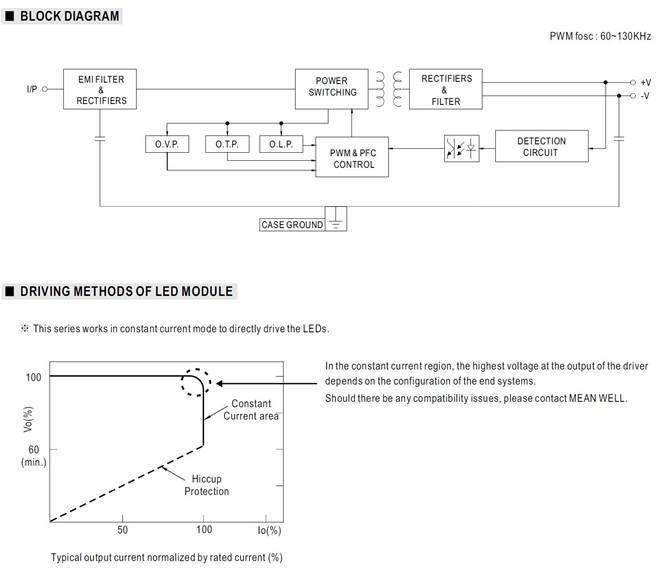

FDL-65 Meanwell LED Driver Power Supply 65w Constant Current FDL-65-1550 FDL-65-1800 metal housing built-in PFC YCICT

Meanwell FDL-65 Series Applications

l  LED flood lighting

l  L ED decorative lighting

l  LED architectural lighting

Meanwell FDL-65 Series Mechanical Diagram

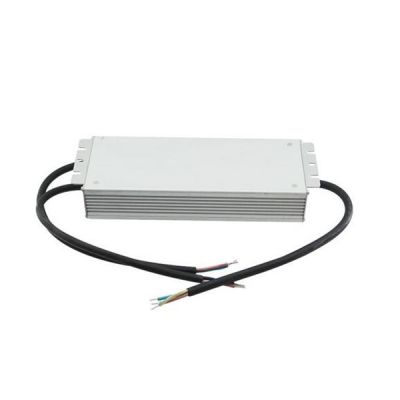

FDL-65 Meanwell LED Driver Power Supply 65w Constant Current mode FDL-65-1550 FDL-65-1800 metal housing and PFC YCICT

FDL-65 Meanwell LED Driver Power Supply 65w Constant Current mode FDL-65-1550 FDL-65-1800 metal case built-in PFC YCICT
