DEPARTMENTS
FDL-65-1800
22.58

FDL-65-1800

$22.58

Meanwell 65W Constant Current Mode LED Driver with 1800mA64.8W21.6-36V45V0.9-1.8A±5.0%500ms/230VAC180~295VAC 254~417VDC

- +
Availability:In stock
SKU Meanwell FDL-65-1800
Brand Meanwell
Details

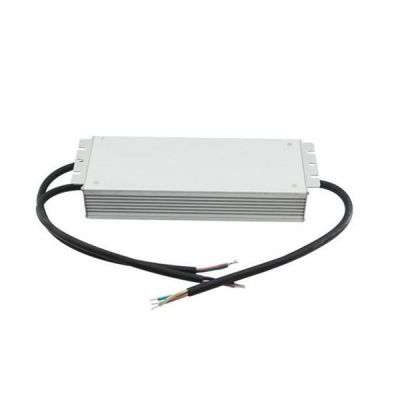

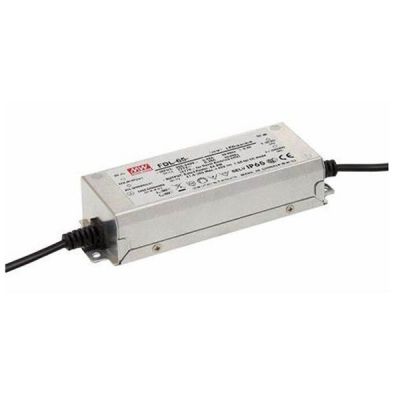

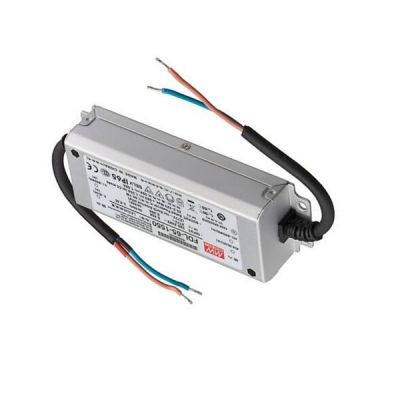

Meanwell FDL-65-1800 is 65W AC/DC LED power supply with 1800mA64.8W21.6-36V45V0.9-1.8A±5.0%500ms/230VAC. The unit stands out with the constant current mode output, targeted at but not limited to LED flood lighting applications. Additionally, it is able to work from 180~295VAC perfectly for the voltage up to 36V (1800mA model). With the efficiency reaching high up to 90%, and fanless design,  FDL-65-1800 could operate for -40℃~+90℃ case temperature under free air convection. What’s more, the metal housing design and IP65 ingress protection level together allow it to suit both indoor and outdoor applications. Apart from them, the product is supplied with output current adjustable function. Thanks to its long lifetime, high efficiency and excellent quality, Meanwell FDL-65-1800 is an ideally suitable solution for the optimal design flexibility for LED lighting system.

FDL-65-1800 Meanwell LED Driver Power Supply 65w Constant Current mode FDL-65 FDL-65-1550 PFC metal case 1800mA YCICT

Meanwell FDL-65-1800 Encoding

FDL Series Name
65 Rated Wattage
1800 Rated Output Current (1550/1800mA)

Meanwell FDL-65-1800 Specifications

Model FDL-65-1800
  RATED CURRENT 1800mA
RATED POWER 64.8W
CONSTANT CURRENT REGION 21.6-36V
OPEN CIRCUIT VOLTAGE(max.) 45V
CURRENT ADJ. RANGE 0.9-1.8A
CURRENT ADJ. RANGE ±5.0%
SETUP, RISE TIME 500ms/230VAC
Input VOLTAGE RANGE 180 ~ 295VAC 254 ~ 417VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>=0.95/230VAC, PF>=0.90/277VAC at full load
TOTAL HARMONIC DISTORTION THD< 20%(at load>=60%/230VAC; at load>=75%/277VAC)
EFFICIENCY (Typ.)  90.00%
AC CURRENT 0.48A / 230VAC 0.39A/277VAC
INRUSH CURRENT (Typ. ) COLD START 11A(twidth=35μs measured at 50% Ipeak)/230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER 26 units (circuit breaker of type B) / 26 units (circuit breaker of type C) at 230VAC
NO LOAD / STANDBY POWER CONSUMPTION <0.5W
LEAKAGE CURR ENT <0.75mA / 277VAC
PROTECTION SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
OVER TEMPERATURE Shut down output voltage, re-power on to recover
OVER VOLTAGE 40 ~ 48V
Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP Tcase=-40 ~ +90 (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP. Tcase=+90
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 60)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS LVD BS EN/EN61347-1,BS EN/EN61347-2-13 Independent, GB19510.1,GB19510.14,EAC TP TC 004, IP65 approved
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (load>=60%) ; BS EN/EN61000-3-3,
GB17743,GB17625.1,EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity:Line-Earth:
4KV,Line-Line:2KV),EAC TP TC 020
Others MTBF 5409.5K hrs min. Telcordia SR-332 (Bellcore) 596.6Khrs min. MIL-HDBK-217F (25)
DIMENSION 151*53*31.5mm (L*W*H)
PACKING 0.441Kg; 24pcs / 11.6Kg / 0.73CUFT

Meanwell FDL-65-1800 Features

l  3 years warranty

l  Metal housing design

l  Built-in active PFC function

l  No load power consumption <0.5 W

l  Constant Current mode output

l  IP65 rating for indoor or outdoor installations

l  Output current adjustable via potentiometer

FDL-65-1800 Meanwell LED Driver Power Supply 65w Constant Current mode FDL-65 FDL-65-1550 metal case 1800mA YCICT

Meanwell FDL-65-1800 Applications

l  LED flood lighting

l  L ED decorative lighting

l  LED architectural lighting

Meanwell FDL-65-1800 Mechanical Diagram

FDL-65-1800 Meanwell LED Driver Power Supply 65w Constant Current mode FDL-65 FDL-65-1550 metal case built-in PFC YCICT

FDL-65-1800 Meanwell LED Driver Power Supply 65w Constant Current FDL-65 FDL-65-1550 metal case built-in PFC YCICT
