EPS-65S
13.51
Details

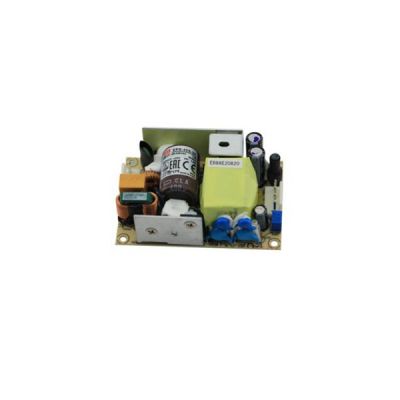

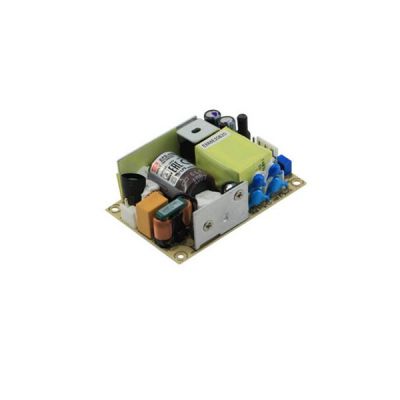

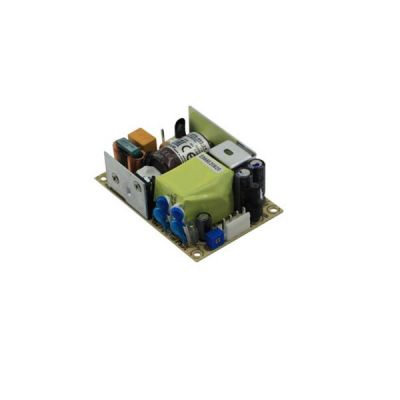

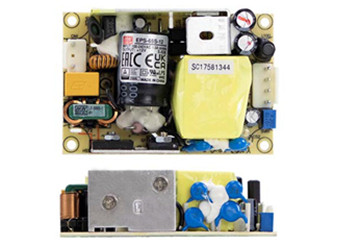

Meanwell EPS-65S Series is a 65W highly reliable green PCB type industrial power supply with high-power density on the3" by 2" footprint. The entire series accepts 80~264VAC input and offers various output voltages between 3.3V and 48V. With the working efficiency up to 91 % and the extremely low no load power consumption. It is able to be used for ClassⅡ(no FG) system design. Apart from them, EPS-65S complies with ErP specifications for end systems and Energy Star requirements. It is cooled by free air convection and provides various protection types such as Short circuit, Overload and Over voltage. Due to the complete protection types and relevant certificates for UL62368-1, TUV BS EN/EN62368- 1, BS EN/EN60335-1, EAC TP TC 004. Meanwell EPS-65S Series is suitable for industrial applications such as factory automation, electrical and mechanical equipment and so on.
Meanwell EPS-65S Series Encoding
| EPS | Series Name |
| 65 | Output Wattage |
| S | Small Size |
| 3.3 | Output Voltage |
Meanwell EPS-65S Series Model Specifications
| Model | EPS-65S-3.3 | EPS-65S-5 | EPS-65S-7.5 | EPS-65S-12 | EPS-65S-15 | EPS-65S-24 | EPS-65S-48 | |
| OUTPUT | DC VOLTAGE | 3.3V | 5V | 7.5V | 12V | 15V | 24V | 27V |
| RATED CURRENT | 10A | 10A | 8A | 5.42A | 4.34A | 2.71A | 1.36A | |
| CURRENT RANGE | 0-11A | 0-11A | 0-8.8A | 0-5.96A | 0-4.77A | 0-2.98A | 0-1.49A | |
| RATED POWER | 33W | 50W | 60W | 65W | 65.1W | 65W | 65.3W | |
| PEAK LOAD (10sec.) | 36.3W | 55W | 66W | 71.5W | 71.6W | 71.5W | 71.5W | |
| RIPPLE & NOISE (max.) | 80mVp-p | 80mVp-p | 80mVp-p | 120mVp-p | 150mVp-p | 240mVp-p | 300mVp-p | |
| VOLTAGE ADJ. RANGE | 2.9-3.6V | 4.75-5.5V | 7.12-8.3V | 11.4-13.2V | 13.5-16.5V | 22.8-27.6V | 45.6-52.8V | |
| VOLTAGE TOL ERANCE | ±2.0% | ±2.0% | ±2.0% | ±2.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGUL .ATION | ±2.0% | ±2.0% | ±2.0% | ±2.0% | ±1.0% | ±1.0% | ±1.0% | |
| SETUP, RISE TIME | 500ms, 30ms / 230VAC 500ms, 30ms / 115VAC at full load | |||||||
| HOLD UP TIME (Typ.) | 30ms / 230VAC 12ms / 115VAC at full load | |||||||
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC | ||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||
| EFFICIENCY (Typ.) | 80.00% | 84.00% | 85.00% | 88.00% | 89.00% | 90.00% | 91.00% | |
| AC CURRENT (Typ.) | 1.5A / 115VAC 1A / 230VAC | |||||||
| INRUSH CURRENT(Typ.) | СOLD STAR 30A/115VAC 50A/230VAC | |||||||
| LEAKAGE CURRENT | 0.25mA/264VAC | |||||||
| PROTECTION | OVERL OAD | 115 ~ 150% rated output power | ||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||||
| OVER VOLTAGE | 3.8-4.46V | 5.75-6.75V | 8.62-11.3V | 13.8-16.2V | 17.25-20.25V | 27.6-32.4V | 55.2-64.8V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||||||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃(Refer to "Derating Curve") | ||||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |||||||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||||||
| OPERATING ALTITUDE | 5000 meters | |||||||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368- 1, BS EN/EN60335-1, EAC TP TC 004 approved | ||||||
| WITHSTAND VOLTAGE | I/P-O/P: 3KVAC | |||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||
| EMC EMISSION | Compliance to BS EN/EN55032(CISPR32) Class B, BS EN/EN61000-3-2,3, EAC TP TC 020 | |||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, Heavy industry Level criteria A, EAC TP TC 020 | |||||||
| OTHERS | MTBF | 959.1Khrs min. MIL-HDBK-217(25℃) | ||||||
| DIMENSION | 76.2*50.8*24mm or 3" * 2" *0.945" inch (L*W*H) | |||||||
| PACKING | 0.11Kg; 120pcs/14.2Kg/0.94CUFT | |||||||
Meanwell EPS-65S Series Features
l 3"x2"miniature size
l Universal AC input/Full range
l ClassⅡ(without FG) installations
l No load power consumption<0.1W
l High efficiency up to 91%
l For 1U applications
l Protections: Short circuit/Overload/Over voltage
l Cooling by free air convection
l -30℃~70℃ wide range of operating temperature
l Operating altitude up to 5000 meters
l LED indicator for power on
l 3 years warranty
Meanwell EPS-65S Series Applications
l Mechanical equipment
l Handheld electronic device
l Factory automation equipment
l Industrial electrical equipment

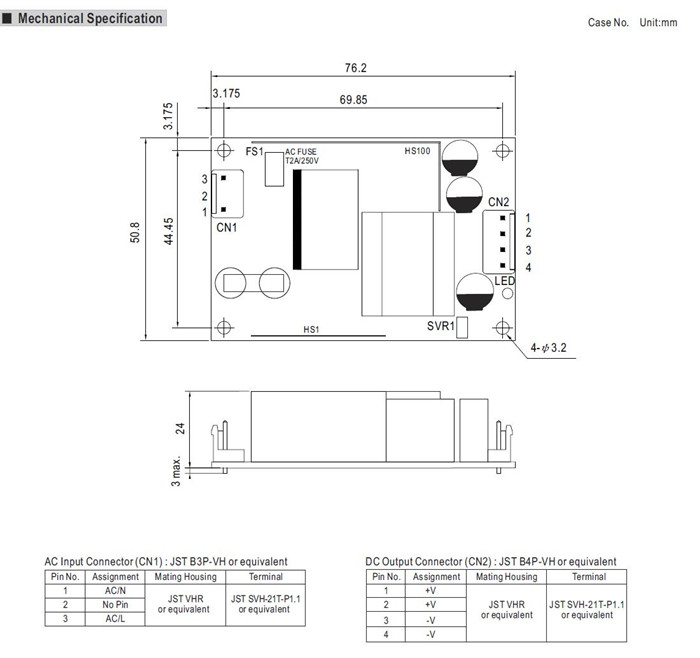

Meanwell EPS-65S Series Mechanical Diagram
