EPS-65S-24
13.81
Details

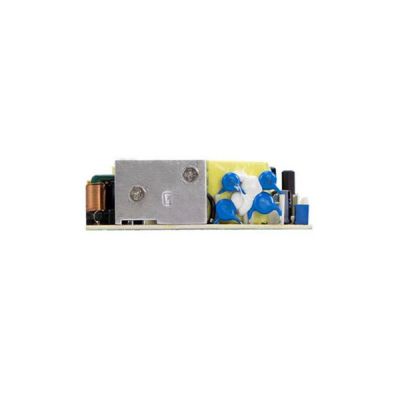

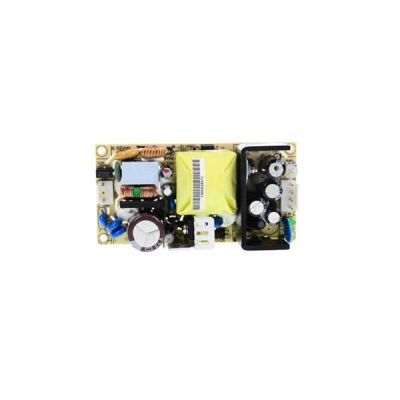

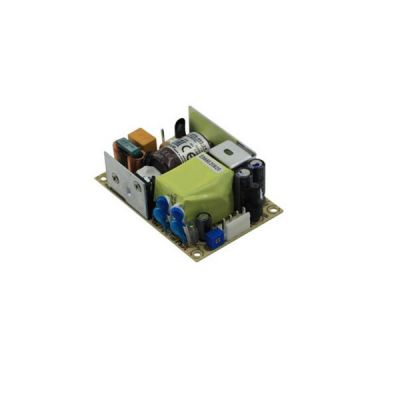

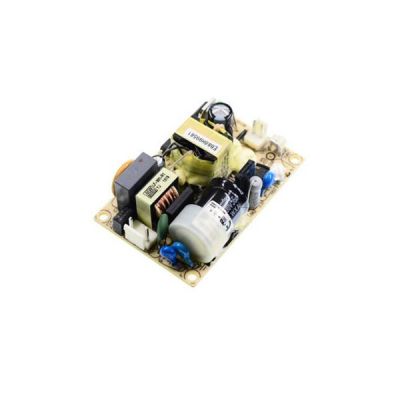

Meanwell EPS-65S-24 is a 65W highly reliable green PCB type industrial power supply with 24V2.71A0-2.98A65W71.5W240mVp-p22.8-27.6V, which has high-power density on the 3" by 2" footprint. The product accepts 80~264VAC input and offers various output voltages between 3.3V and 48V. With the high working efficiency reaching up to 91% and the extremely low no load power consumption, EPS-65S-24 is able to be applied for ClassⅡ(no FG) system design, and complies with ErP specifications for end systems and Energy Star requirements. Apart from them, It is cooled by free air convection and provided with various protection types such as Short circuit, Overload and Over voltage. Due to the complete protection types and relevant certificates for UL62368-1, TUV BS EN/EN62368- 1, BS EN/EN60335-1, EAC TP TC 004. Meanwell EPS-65S-24 is ideal for industrial applications such as factory automation, electrical and mechanical equipment and so on.
Meanwell EPS-65S-24 Encoding
| EPS | Series Name |
| 65 | Output Wattage |
| S | Small Size |
| 24 | Output Voltage |
Meanwell EPS-65S-24 Specifications
| Model | EPS-65S-24 | |
| OUTPUT | DC VOLTAGE | 24V |
| RATED CURRENT | 2.71A | |
| CURRENT RANGE | 0-2.98A | |
| RATED POWER | 65W | |
| PEAK LOAD (10sec.) | 71.5W | |
| RIPPLE & NOISE (max.) | 240mVp-p | |
| VOLTAGE ADJ. RANGE | 22.8-27.6V | |
| VOLTAGE TOL ERANCE | ±1.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGUL .ATION | ±1.0% | |
| SETUP, RISE TIME | 500ms, 30ms / 230VAC 500ms, 30ms / 115VAC at full load | |
| HOLD UP TIME (Typ.) | 30ms / 230VAC 12ms / 115VAC at full load | |
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 90.00% | |
| AC CURRENT (Typ.) | 1.5A / 115VAC 1A / 230VAC | |
| INRUSH CURRENT(Typ.) | СOLD STAR 30A/115VAC 50A/230VAC | |
| LEAKAGE CURRENT | 0.25mA/264VAC | |
| PROTECTION | OVERL OAD | 115 ~ 150% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 27.6-32.4V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| OPERATING ALTITUDE | 5000 meters | |
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368- 1, BS EN/EN60335-1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P: 3KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032(CISPR32) Class B, BS EN/EN61000-3-2,3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, Heavy industry Level criteria A, EAC TP TC 020 | |
| OTHERS | MTBF | 959.1Khrs min. MIL-HDBK-217(25℃) |
| DIMENSION | 76.2*50.8*24mm or 3" * 2" *0.945" inch (L*W*H) | |
| PACKING | 0.11Kg; 120pcs/14.2Kg/0.94CUFT | |
Meanwell EPS-65S-24 Features
l 3-year warranty
l 3"x2"miniature size
l For 1U applications
l High efficiency up to 91%
l Universal AC input/Full range
l LED indicator for power on
l Cooling by free air convection
l ClassⅡ(without FG) installations
l No load power consumption<0.1W
l Operating altitude up to 5000 meters
l Protections: Short circuit/Overload/Over voltage
l -30℃~70℃ wide range of operating temperature
Meanwell EPS-65S-24 Applications
l Mechanical equipment
l Handheld electronic device
l Industrial electrical equipment
l Factory automation equipment
Meanwell EPS-65S-24 Mechanical Diagram
