EPS-65-7.5
14.66
Details

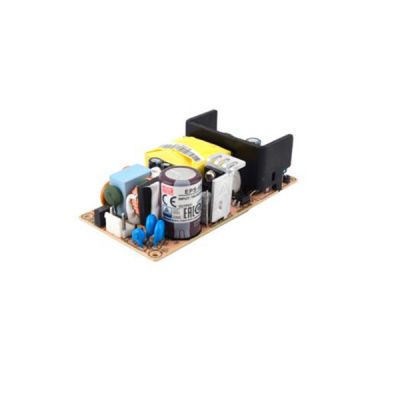

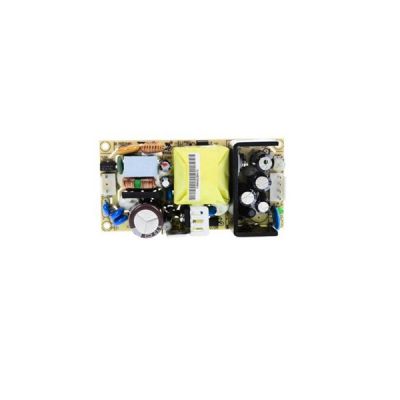

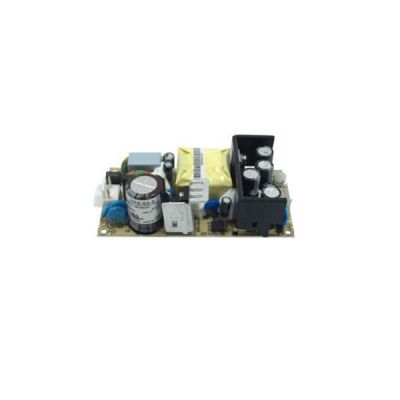

Meanwell EPS-65-7.5 is a 65W Single Output Switching Power Supply with 7.5V8A0-8A60W66W100mVp-p7.13-8.25V. and it outstands high-power density on the 4" by 2" footprint (Optional L-Bracket and cover). Since the item is designed in compact size and low profile, this offers printed circuit board architecture for direct mounting to the system chassis. What’s more, EPS-65-7.5 accepts 80~264VAC input and various output voltages between 3.3V and 48V. With the high working efficiency up to 90% and the extremely low no load power consumption. EPS-65-7.5 is able to be applied for ClassⅡ(no FG) system design. Additionally, the model complies with the international safety regulations like UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004. Furthermore, this power supply is equipped with various protection types such as Short circuit, Overload and Over voltage. In view of its high efficiency, low cost and longevity, Meanwell EPS-65-7.5 is a high price-to-performance power supply solution for various industrial applications such as factory automation, electrical or mechanical equipment.
Meanwell EPS-65-7.5 Specifications
| Model | EPS-65-7.5 □ | |
| OUTPUT | DC VOLTAGE | 7.5V |
| RATED CURRENT | 8A | |
| CURRENT RANGE | 0-8A | |
| RATED POWER | 60W | |
| PEAK LOAD (10sec.) | 66W | |
| RIPPLE & NOISE (max.) | 100mVp-p | |
| VOLTAGE ADJ. RANGE | 7.13-8.25V | |
| VOLTAGE TOL ERANCE | ±2.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGUL .ATION | ±1.0% | |
| SETUP, RISE TIME | 1000ms, 50ms/230VAC 2000ms, 50ms/115VAC at full load | |
| HOLD UP TIME (Typ.) | 50ms/230VAC 12ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC [DC input operation possible by connecting AC/N(+), AC/L(-)] |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 84.00% | |
| AC CURRENT (Typ.) | 1.8A/115VAC 1 A/230VAC | |
| INRUSH CURRENT(Typ.) | COLD START 60A/230VAC | |
| LEAKAGE CURRENT | <2mA/240VAC | |
| PROTECTION | OVERL OAD | 115 ~ 160% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 8.63-10.1V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | OPERATING ALTITUDE | 4000 meters |
| WORKING TEMP. | -30 ~ +70℃(Refer to "Derating Curve") | |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to /EN55032 (CISPR32) Class B, /EN61000-3-2,-3, BS EN BS EN EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, heavy industry level, criteria A,EAC TP TC 020 | |
| OTHERS | MTBF | 563Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | PCB:101.6*50.8*29mm (L*W*H) ; with optional CASE:103.4*62*37mm (L*W*H) | |
| PACKING | PCB: 0.15Kg; 96pcs/ 15.4 Kg/1.39CUFT ; with optional CASE: 0.3Kg; 45pcs/ 14.5Kg/0.63CUFT | |
Meanwell EPS-65-7.5 Features
l 3 years warranty
l 4"X 2" compact size
l LED indicator for power on
l High efficiency up to 90%
l Cooling by free air convection
l No load power consumption<0.3 W
l Operating altitude up to 4000 meters
l Universal AC input/ Full range
l Optional L- Bracket and cover
l Protections: Short circuit/Overload /Over voltage
Meanwell EPS-65-7.5 Mechanical Diagram
