EPS-35-24
12.61
Details

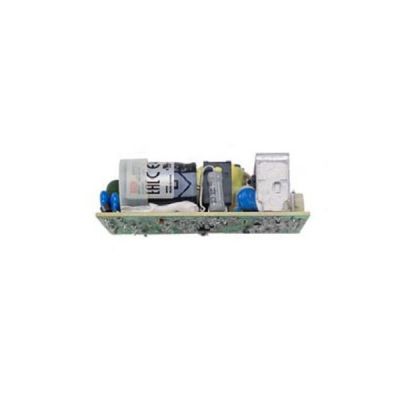

Meanwell EPS-35-24 is 35W Single Output Switching Power Supply with 24V1.5A0-1.65A36W39.6W180mVp-p21.6-27V. this unit is designed in compact size and low profile, and it gives printed circuit board architecture for direct mounting to the system. Meanwhile, the product outstands the universal 85 to 264V AC input. With the high efficiency up to 90% and the extremely low no-load power consumption, EPS-35-24 complies with ErP specifications for end systems and Energy Star requirements. Additionally, it allows free air convection cooling from -30℃ to +70℃, and offers various protection types such as Short circuit, Overload and Over voltage. Due to the complete protection types and relevant certificates for UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, Meanwell EPS-35-24 is suitable for applications like factory automation, electrical and mechanical equipment and applications requiring low no-load power consumption.
Meanwell EPS-35-24 Specifications
| Model | EPS-35-24 | |
| OUTPUT | DC VOLTAGE | 24V |
| RATED CURRENT | 1.5A | |
| CURRENT RANGE | 0-1.65A | |
| RATED POWER | 36W | |
| PEAK LOAD (10sec.) | 39.6W | |
| RIPPLE & NOISE (max.) | 180mVp-p | |
| VOLTAGE ADJ. RANGE | 21.6-27V | |
| VOLTAGE TOL ERANCE | ±1.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGUL .ATION | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load | |
| HOLD UP TIME (Typ.) | 50ms/230VAC 16ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 89.00% | |
| AC CURRENT (Typ.) | 0.75A/115VAC 0.5A/230VAC | |
| INRUSH CURRENT(Typ.) | COLD START 40A/230VAC | |
| LEAKAGE CURRENT | <1mA/240VAC | |
| PROTECTION | OVERL OAD | 115 ~ 170% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 27.6-32.4V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| OPERATING ALTITUDE | 2000 meters | |
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃ / 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, heavy industry level, criteria A, EAC TP TC 020 | |
| OTHERS | MTBF | 649.1K hrs min. MIL-HDBK-217F (25℃ ) |
| DIMENSION | 76.2*50.8*24mm (L*W*H) | |
| PACKING | 0.085Kg; 120pcs/11.2Kg/0.94CUFT | |
Meanwell EPS-35-24 Features
l 3 years warranty
l 3"x2" compact size
l High efficiency up to 90%
l Cooling by free air convection
l Universal AC input/ Full range
l LED indicator for power on
l No load power consumption<0.3W
l Protections: Short circuit / Overload / Over voltage
Meanwell EPS-35-24 Mechanical Diagram
