EPS-25-15
12.25
Details

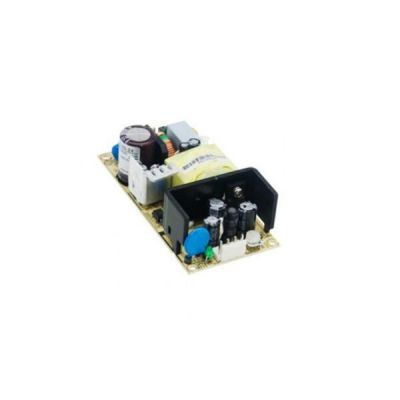

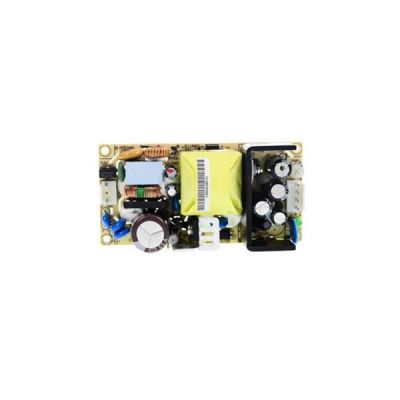

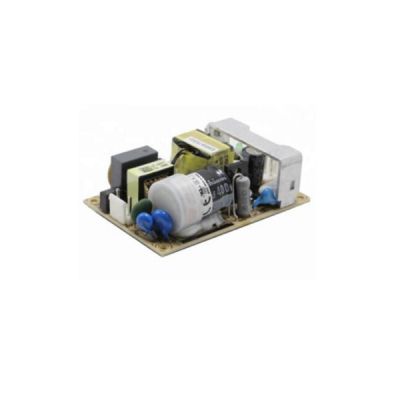

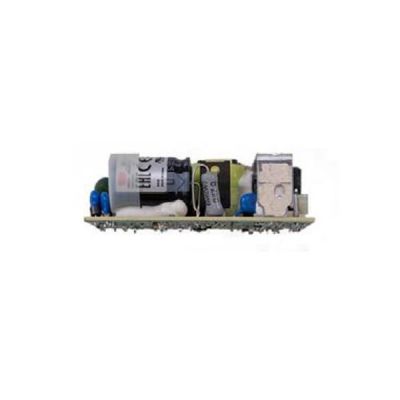

Meanwell EPS-25-15 is 25W Single Output Switching Power Supply with 15V1.7A0-1.87A25.5W28.05W100mVp-p13.5-16.5V. This item is 30% smaller than the previous and 10% more efficient. What’s more, it is cooled by free air convection and operate under altitude up to 2000 meters. By the high efficiency reaching up to 90% and the extremely low no-load power consumption <0.3W, EPS-25-15 complies with ErP specifications for end systems and Energy Star requirements. Additionally, the product gives various protections such as Short circuit, Overload and Over voltage. Based on the complete protection functions and relevant certificates for UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, Meanwell EPS-25-15 is suitable for various applications such as factory automation, electrical and mechanical equipment and applications requiring low no-load power consumption.
Meanwell EPS-25-15 Specifications
| Model | EPS-25-15 | |
| OUTPUT | DC VOLTAGE | 15V |
| RATED CURRENT | 1.7A | |
| CURRENT RANGE | 0-1.87A | |
| RATED POWER | 25.5W | |
| PEAK LOAD (10sec.) | 28.05W | |
| RIPPLE & NOISE (max.) | 100mVp-p | |
| VOLTAGE ADJ. RANGE | 13.5-16.5V | |
| VOLTAGE TOL ERANCE | ±1.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGUL .ATION | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load | |
| HOLD UP TIME (Typ.) | 50ms/230VAC 16ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 87.00% | |
| AC CURRENT (Typ.) | 0.6A/115VAC 0.4A/230VAC | |
| INRUSH CURRENT(Typ.) | COLD START 35A/230VAC | |
| LEAKAGE CURRENT | <1mA/240VAC | |
| PROTECTION | OVERL OAD | 115 ~ 170% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 17.25-20.25V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| OPERATING ALTITUDE | 2000 meters | |
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, heavy industry level, criteria A, EAC TP TC 020 | |
| OTHERS | MTBF | 655.3K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 76.2*50.8*24mm (L*W*H) | |
| PACKING | 0.081Kg; 120pcs/10.7Kg/0.94CUFT | |
Meanwell EPS-25-15 Features
l 3 years warranty
l 3"X 2" compact size
l High efficiency up to 90%
l Cooling by free air convection
l LED indicator for power on
l Universal AC input/Full range
l No load power consumption<0.3W
l Protections: Short circuit / Overload / Over voltage
Meanwell EPS-25-15 Mechanical Diagram
