EPS-15
10.16
Details
Meanwell EPS-15 Series is 15W Single Output Switching Power Supply in compact size, high efficiency and low cost. The entire series is 37% smaller than the previous and works 2∼8% more efficient. Apart from them, they can be cooled by free air convection and operate under altitude up to 3000 meters. With the high efficiency up to 85% and the extremely low no-load power consumption, EPS-15 series complies with ErP specifications for end systems and Energy Star requirements. Due to its high reliability, low cost and longevity, Meanwell EPS-15 Series is ideally suitable for various applications such as factory automation, electrical and mechanical equipment and applications requiring low no-load power consumption.
Meanwell EPS-15 Series Model Specifications
| Model | EPS-15-3.3 | EPS-15-5 | EPS-15-7.5 | EPS-15-12 | EPS-15-15 | EPS-15-24 | EPS-15-27 | EPS-15-36 | EPS-15-48 | |
| OUTPUT | DC VOLTAGE | 3.3V | 5V | 7.5V | 12V | 15V | 24V | 27V | 36V | 48V |
| RATED CURRENT | 3A | 3A | 2A | 1.25A | 1A | 0.625A | 0.56A | 0.42A | 0.313A | |
| CURRENT RANGE | 0-3.3A | 0-3.3A | 0-2.2A | 0-1.38A | 0-1.1A | 0-0.69A | 0-0.615A | 0-0.46A | 0-0.344A | |
| RATED POWER | 9.9W | 15W | 15W | 15W | 15W | 15W | 15.12W | 15.12W | 15.02W | |
| PEAK LOAD (10sec.) | 10.89W | 16.5W | 16.5W | 16.56W | 16.5W | 16.56W | 16.6W | 16.56W | 16.51W | |
| RIPPLE & NOISE (max.) | 50mVp-p | 50mVp-p | 80mVp-p | 80mVp-p | 100mVp-p | 150mVp-p | 180mVp-p | 200mVp-p | 200mVp-p | |
| VOLTAGE ADJ. RANGE | 3.1-3.6V | 4.75-5.5V | 7.13-8.25V | 10.8-13.5V | 13.5-16.5V | 21.6-27V | 24.3-29.7V | 32.4-39.6V | 43.2-52.8V | |
| VOLTAGE TOL ERANCE | ±2.0% | ±2.0% | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGUL .ATION | ±1% | ±1% | ±1% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 30ms/230VAC 2000ms, 30ms/115VAC at full load | |||||||||
| HOLD UP TIME (Typ.) | 50ms/230VAC 16ms/115VAC at full load | |||||||||
| INPUT | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC [DC input operation possible by connecting AC/N(+), AC/L(-)] | ||||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||||
| EFFICIENCY (Typ.) | 75.00% | 78.00% | 81.00% | 82.00% | 83.00% | 83.00% | 84.00% | 85.00% | 85.00% | |
| AC CURRENT (Typ.) | 0.4A/115VAC 0.2A/230VAC | |||||||||
| INRUSH CURRENT(Typ.) | COLD START 45A/230VAC | |||||||||
| LEAKAGE CURRENT | <1mA/240VAC | |||||||||
| PROTECTION | OVERL OAD | 115 ~ 150% rated output power | ||||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||||||
| OVER VOLTAGE | 3.8-4.85V | 5.6-6.75V | 8.63-10.1V | 13.8-16.2V | 17.25-20.25V | 27.6-33V | 31.05-36.45V | 39.7-46.8V | 55.2-65.8V | |
| Protection type : Shut down o/p voltage, Clamping by zener diode | ||||||||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃(Refer to "Derating Curve") | ||||||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |||||||||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||||||||
| OPERATING ALTITUDE | 3000 meters | |||||||||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, CCC GB4943.1 approved | ||||||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, GB9254 Class B, GB17625.1 | |||||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, heavy industry level, criteria A, EAC TP TC 020 | |||||||||
| OTHERS | MTBF | 824.6Khrs min. MIL-HDBK-217F (25℃) | ||||||||
| DIMENSION | 63.5*45.7*24mm (L*W*H | |||||||||
| PACKING | 0.057Kg; 120pcs/ 7.84Kg/0.94CUFT | |||||||||
Meanwell EPS-15 Series Features
l Universal AC input/Full range
l Protections: Short circuit/Overload /Over voltage
l Cooling by free air convection
l 1.8"x2.5" compact size
l No load power consumption<O.3W
l Operating altitude up to 3000 meters
l 3 years warranty

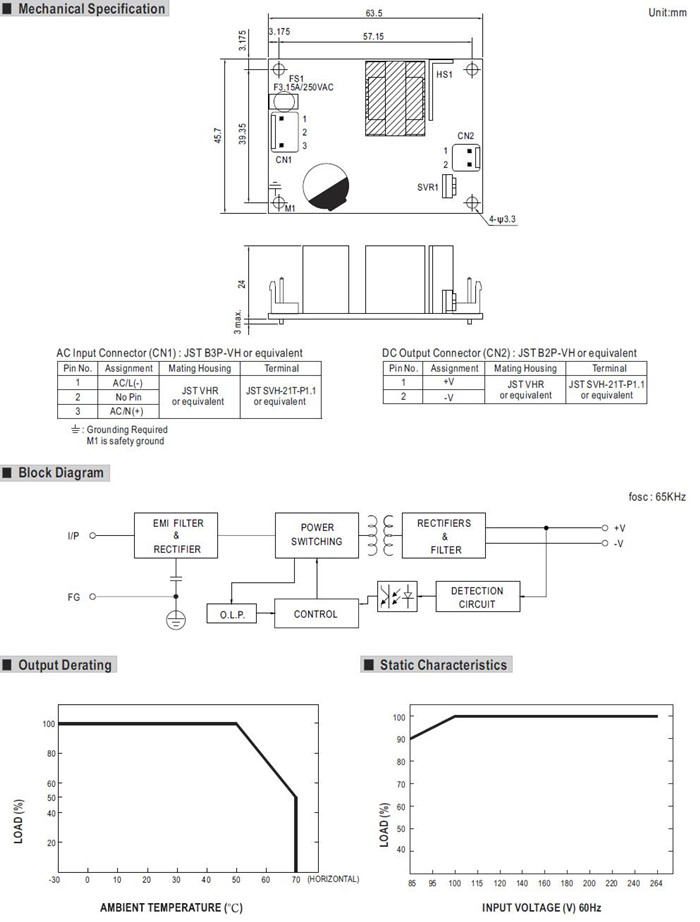

Meanwell EPS-15 Series Mechanical Diagram
