EPP-200-48
34.19
Details

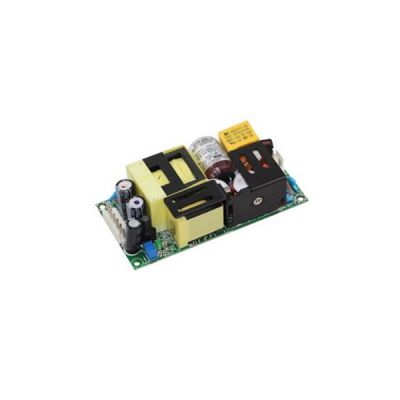

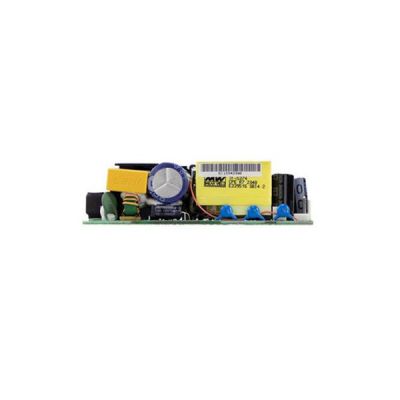

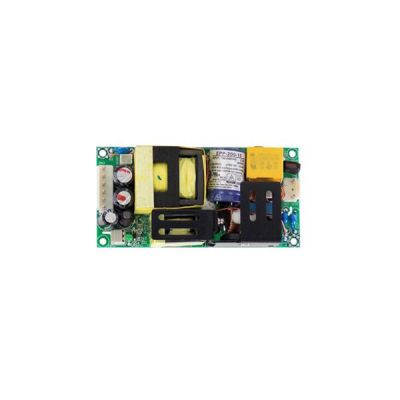

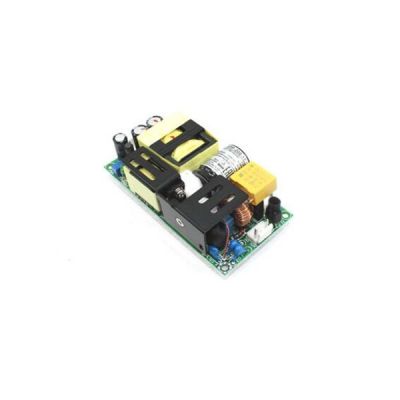

Meanwell EPP 200-48 is a 200W highly reliable green PCB type power supply with 48V4.2A3A201.6W144W200mVp-p45.6-50.4V. The product outstands PFC Function and high-power density (21.9W/in) on the 4" by 2 footprint. And it also accepts 80~264V AC input offering various output voltages between 12V and 48V. With the high working efficiency up to 94% and the extremely low no load power consumption<0.5W, EPP-200-48 is able to be used for both Class I (with FG) and Class II (no FG) system design. In addition, the unit provides complete protection functions such as Short circuit, Overload, Over voltage and Over temperature. Moreover, t is complied with the international safety regulations such as TUV BS EN/EN62368-1, UL62368-1 and IEC62368-1. As a result of the high efficiency, low cost and longevity, Meanwell EPP-200-48 is as a high price-to-performance power supply solution for various industrial applications.
Meanwell EPP-200-48 Specifications
| Model | EPP-200-48 | ||
| OUTPUT | DC VOLTAGE | 48V | |
| CURRENT | 10CFM | 4.2A | |
| Convection | 3A | ||
| RATED POWER | 10CFM | 201.6W | |
| Convection | 144W | ||
| RIPPLE & NOISE (max.) | 200mVp-p | ||
| VOLTAGE ADJ. RANGE | 45.6-50.4V | ||
| VOLTAGE TOL ERANCE | ±1.0% | ||
| LINE REGULATION | ±0.5% | ||
| LOAD REGUL .ATION | ±1.0% | ||
| SETUP, RISE TIME | 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load | ||
| HOLD UP TIME (Typ.) | 12ms/230VAC 12ms/115VAC at full load | ||
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC 113 ~ 370VDC | |
| FREQUENCY RANGE | 47 ~ 63Hz | ||
| POWER FACTOR | PF>0.94/230VAC PF>0.98/115VAC at full load | ||
| EFFICIENCY (Typ.) | 94.00% | ||
| AC CURRENT (Typ.) | 1.8A/115VAC 1A/230VAC | ||
| INRUSH CURRENT(Typ.) | COLD START 30A/115VAC 60A/230VAC | ||
| LEAKAGE CURRENT | <0.75mA / 240VAC | ||
| PROTECTION | OVERL OAD | 110 ~ 140% rated output power | |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||
| OVER VOLTAGE | 52.8-62.4V | ||
| Protection type : Shut down o/p voltage, re-power on to recover | |||
| OVER TEMPERATURE | Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃(Refer to "Derating Curve") | |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||
| STORAGE TEMP | -40 ~ +85℃ | ||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | ||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||
| OPERATING ALTITUDE | 5000 meters | ||
| FUNCTION | FAN SUPPLY | 12V@0.5A for driving a fan ; tolerance +15% ~ -15% at main output 20% rated current (10CFM) | |
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, IEC62368-1, EAC TP TC 004 approved | |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Conduction for Class B Radiation for Class B with FG(ClassⅠ) and Class A without FG(ClassⅡ), BS EN/EN61000-3-2,-3, EAC TP TC 020 |
||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN61000-6-2, heavy industry level, criteria A, EAC TP TC 020 |
||
| OTHERS | MTBF | 500.2Khrs min. MIL-HDBK-217F (25℃) | |
| DIMENSION | 101.6*50.8*29mm (L*W*H) | ||
| PACKING | 0.19Kg; 72pcs/14.7Kg/0.82CUFT | ||
Meanwell EPP-200-48 Features
l 3-year warranty
l 4"x2"miniature size
l High efficiency up to 94%
l Universal AC input/Full range
l Built-in active PFC function
l Built-in 12V/0.5A FAN supply
l LED indicator for power on
l Operating altitude up to 5000 meters
l No load power consumption<0.5W
l Protections: Short circuit /Overload/Over voltage/Over temperature
l Cooling by free air convection for 1 40W and 200W with1 OCFM forced air
l EMI Conduction for Class B Radiation for Class B with FG(Class I ) and Class A without FG ( ClassII )
Meanwell EPP-200-48 Applications
l Industrial control system
l Industrial automation machinery
l Mechanical and electrical equipment
l Electronic instruments, equipment, or apparatus
Meanwell EPP-200-48 Mechanical Diagram
