EPP-200-27
33.66
Details

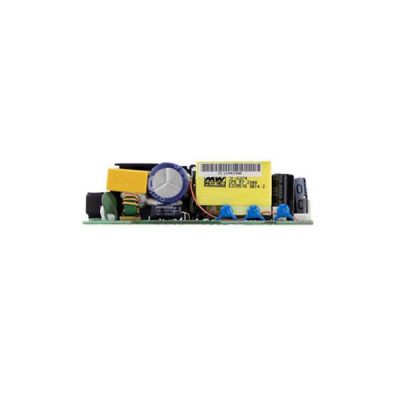

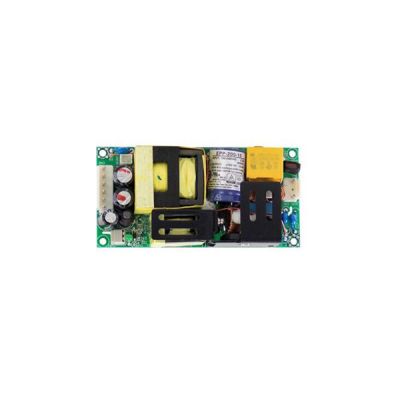

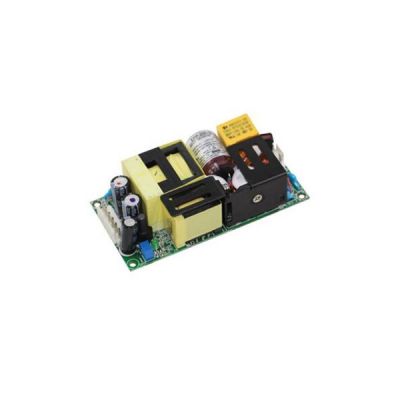

Meanwell EPP 200-27 is a 200W highly reliable green PCB type power supply with 27V7.5A5.3A202.5W143.1W150mVp-p25.6-28.4V. The model features PFC Function and high-power density (21.9W/in) on the 4" by 2 footprint. It also accepts 80~264V AC input and offers various output voltages between 12V and 48V. With the high working efficiency reaching up to 94% and the extremely low no load power consumption, EPP-200-27 can be used for both Class I (with FG) and Class II (no FG) system design. What’s more, it is equipped with complete protection functions of Short circuit, Overload, Over voltage and Over temperature. Additionally, it is complied with the international safety regulations such as TUV BS EN/EN62368-1, UL62368-1 and IEC62368-1. In view of the high efficiency, low cost and longevity, Meanwell EPP-200-27 serves as a high price-to-performance power supply solution for various industrial applications.
Meanwell EPP-200-27 Specifications
| Model | EPP-200-27 | ||
| OUTPUT | DC VOLTAGE | 27V | |
| CURRENT | 10CFM | 7.5A | |
| Convection | 5.3A | ||
| RATED POWER | 10CFM | 202.5W | |
| Convection | 143.1W | ||
| RIPPLE & NOISE (max.) | 150mVp-p | ||
| VOLTAGE ADJ. RANGE | 25.6-28.4V | ||
| VOLTAGE TOL ERANCE | ±1.0% | ||
| LINE REGULATION | ±0.5% | ||
| LOAD REGUL .ATION | ±1.0% | ||
| SETUP, RISE TIME | 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load | ||
| HOLD UP TIME (Typ.) | 12ms/230VAC 12ms/115VAC at full load | ||
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC 113 ~ 370VDC | |
| FREQUENCY RANGE | 47 ~ 63Hz | ||
| POWER FACTOR | PF>0.94/230VAC PF>0.98/115VAC at full load | ||
| EFFICIENCY (Typ.) | 94.00% | ||
| AC CURRENT (Typ.) | 1.8A/115VAC 1A/230VAC | ||
| INRUSH CURRENT(Typ.) | COLD START 30A/115VAC 60A/230VAC | ||
| LEAKAGE CURRENT | <0.75mA / 240VAC | ||
| PROTECTION | OVERL OAD | 110 ~ 140% rated output power | |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||
| OVER VOLTAGE | 29.7-35V | ||
| Protection type : Shut down o/p voltage, re-power on to recover | |||
| OVER TEMPERATURE | Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃(Refer to "Derating Curve") | |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||
| STORAGE TEMP | -40 ~ +85℃ | ||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | ||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||
| OPERATING ALTITUDE | 5000 meters | ||
| FUNCTION | FAN SUPPLY | 12V@0.5A for driving a fan ; tolerance +15% ~ -15% at main output 20% rated current (10CFM) | |
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, IEC62368-1, EAC TP TC 004 approved | |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Conduction for Class B Radiation for Class B with FG(ClassⅠ) and Class A without FG(ClassⅡ), BS EN/EN61000-3-2,-3, EAC TP TC 020 |
||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN61000-6-2, heavy industry level, criteria A, EAC TP TC 020 |
||
| OTHERS | MTBF | 500.2Khrs min. MIL-HDBK-217F (25℃) | |
| DIMENSION | 101.6*50.8*29mm (L*W*H) | ||
| PACKING | 0.19Kg; 72pcs/14.7Kg/0.82CUFT | ||
Meanwell EPP-200-27 Features
l 3 years warranty
l 4"x2"miniature size
l Built-in 12V/0.5A FAN supply
l LED indicator for power on
l Operating altitude up to 5000 meters
l High efficiency up to 94%
l Universal AC input/Full range
l Built-in active PFC function
l No load power consumption<0.5W
l Protections: Short circuit /Overload/Over voltage/Over temperature
l Cooling by free air convection for 1 40W and 200W with1 OCFM forced air
l EMI Conduction for Class B Radiation for Class B with FG(Class I ) and Class A without FG ( ClassII )
Meanwell EPP-200-27 Applications
l Industrial control system
l Industrial automation machinery
l Mechanical and electrical equipment
l Electronic instruments, equipment, or apparatus
Meanwell EPP-200-27 Mechanical Diagram
