EPP-120S-48
24.06
Details

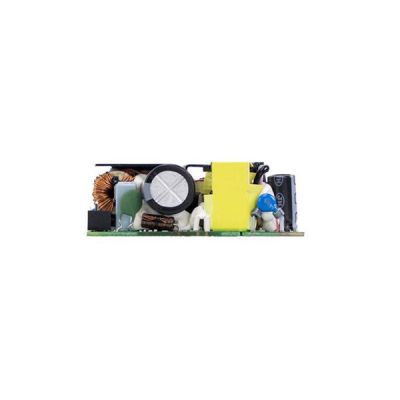

Meanwell EPP-120S-48 is a 120W highly reliable green PCB type power supply with 48V3.125A2.5A150W120W200mVp-p45.6-50.4V.This model has high power density on the 3" by 2"footprint , and also accepts 80~ 264VAC input. At the same time, it offers various output voltages between 12V and 48V. With the working efficiency reaching up to 94% and the extremely low no load power consumption. EPP-120S-48 is able to be applied for both Class I (with FG) and Class II (no FG) system design. In addition, the product is equipped with the complete protection types such as Short circuit, Overload, Over voltage and Over temperature. Moreover, EPP-120S-48 complies with the international safety regulations such as TUV BS EN/EN62368-1,BS EN/EN60335-1, UL62368-1 and lEC62368-1. As a result of its high efficiency, low cost and longevity, Meanwell EPP-120S-48 is a high price-to-performance power supply solution for various industrial applications.
Meanwell EPP-120S-48 Specifications
| Model | EPP-120S-48 | ||
| OUTPUT | DC VOLTAGE | 48V | |
| CURRENT | Peak (10 sec.) | 3.125A | |
| Convection | 2.5A | ||
| RATED POWER | Peak (10 sec.) | 150W | |
| Convection | 120W | ||
| RIPPLE & NOISE (max.) | 200mVp-p | ||
| VOLTAGE ADJ. RANGE | 45.6-50.4V | ||
| VOLTAGE TOL ERANCE | ±1.0% | ||
| LINE REGULATION | ±0.5% | ||
| LOAD REGUL .ATION | ±1.0% | ||
| SETUP, RISE TIME | 600ms, 30ms/230VAC 600ms, 30ms/115VAC at full load | ||
| HOLD UP TIME (Typ.) | 15ms/230VAC 15ms/115VAC at full load | ||
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC 113 ~ 370VDC | |
| FREQUENCY RANGE | 47 ~ 63Hz | ||
| EFFICIENCY (Typ.) | 93.00% | ||
| AC CURRENT (Typ.) | 2.3A/115VAC 1.1A/230VAC | ||
| INRUSH CURRENT(Typ.) | COLD START 30A/115VAC 60A/230VAC | ||
| LEAKAGE CURRENT | <0.75mA / 240VAC | ||
| PROTECTION | OVERL OAD | 130~160% rated output power | |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||
| OVER VOLTAGE | 52.8-62.4V | ||
| Protection type : Shut down o/p voltage, re-power on to recover | |||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +85℃(Refer to "Derating Curve") | |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||
| STORAGE TEMP | -40 ~ +85℃ | ||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | ||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||
| OPERATING ALTITUDE | 5000 meters | ||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, IEC62368-1, EAC TP TC 004 approved | |
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | ||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC / 25℃/ 70% RH | ||
| EMC IMMUNITY | BS EN/EN61000-6-2 | ||
| OTHERS | MTBF | 470Khrs min. MIL-HDBK-217F (25℃) | |
| DIMENSION | 76.2*50.8*28mm (L*W*H) or 3" * 2" *1.1" inch | ||
| PACKING | 0.13Kg; 100pcs/14Kg/1.13CUFT | ||
Meanwell EPP-120S-48 Features
l High up to 94%
l 3 years warranty
l 3"x2" Compact Size
l Operating altitude up to 5000 meters
l No load power consumption<0.3W
l 120W convection,150W peak (10sec.)
l EMI for both ClassⅠ& Class Ⅱ configuration
l -30℃~+85℃ wide range operating temperature
l Protections: Short circuit/Overload/Over voltage/Over temperature
Meanwell EPP-120S-48 Applications
l Industrial control system
l Industrial automation machinery
l Mechanical and electrical equipment
l Electronic instruments, equipment , or apparatus
Meanwell EPP-120S-48 Mechanical Diagram
